CHAPTER 8 - SPECIFICATIONS
8-13
6-34551NA Issued 8-04 Bur
CX75SR WITH 2.12 M (6 FT. 11 IN) ARM
CT02D273

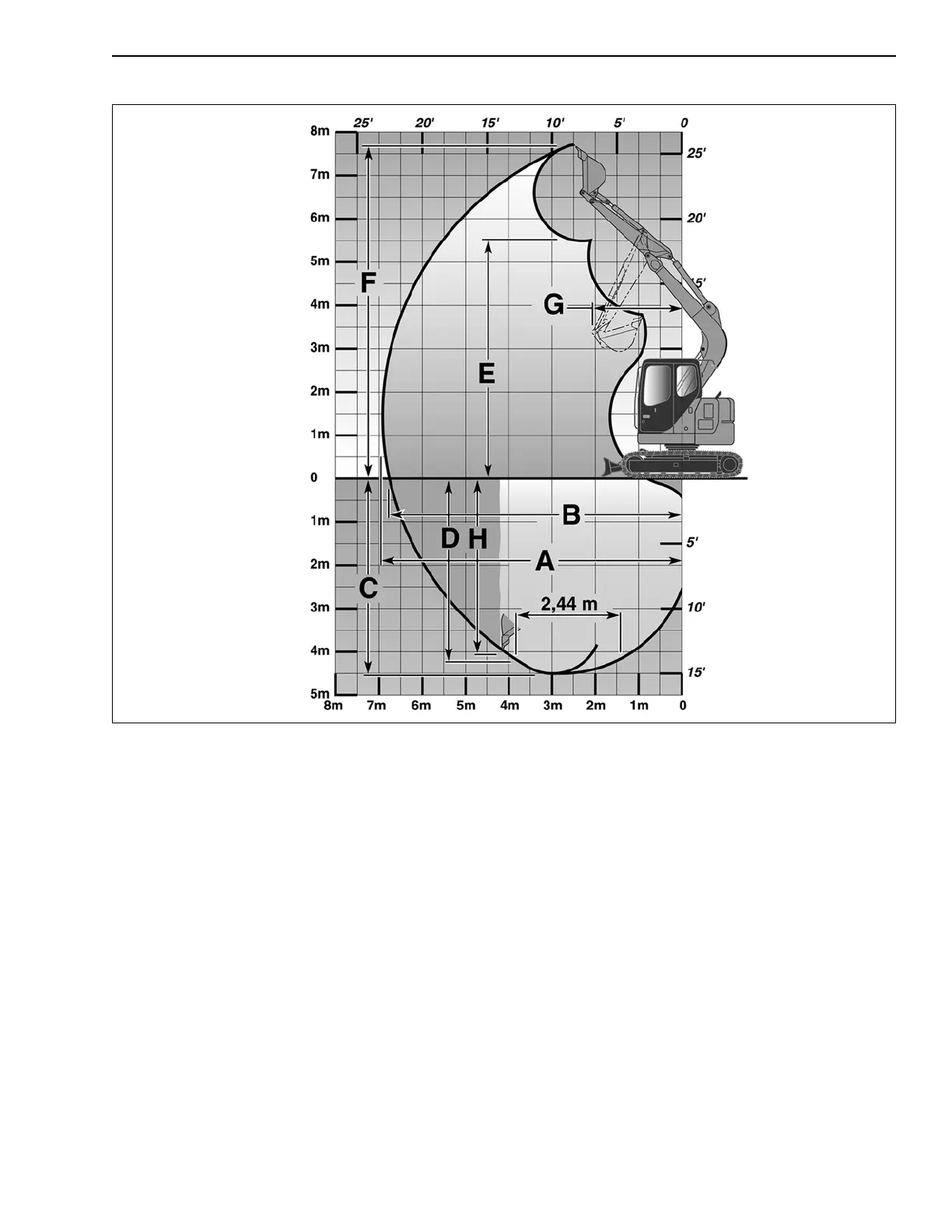

Figure 5
WORKING RANGE FOR 2.12 M (6FT 11 IN ) ARM
A. Maximum reach ...................................................................................................................... 6.90 m (22 ft. 8 in)
B. Maximum reach at ground level ............................................................................................. 6.75 m (22 ft. 3 in)
C. Maximum digging depth ....................................................................................................... 4.55 m (14 ft. 10 in)
D. Maximum digging depth over a length of 2.44 m (8 ft.)........................................................... 4.25 m (14 ft. 0 in)
E. Maximum dump height ........................................................................................................... 5.55 m (18 ft. 2 in)
F. Maximum working height ....................................................................................................... 7.60 m (25 ft. 0 in)
G. Minimum attachment swing radius ......................................................................................... 2.10 m (6 ft. 10 in)
H. Maximum digging depth - vertical wall ................................................................................... 4.10 m (13 ft. 5 in)
