CHAPTER 7 - ELECTRICAL
7-9
6-34551NA Issued 8-04 Bur

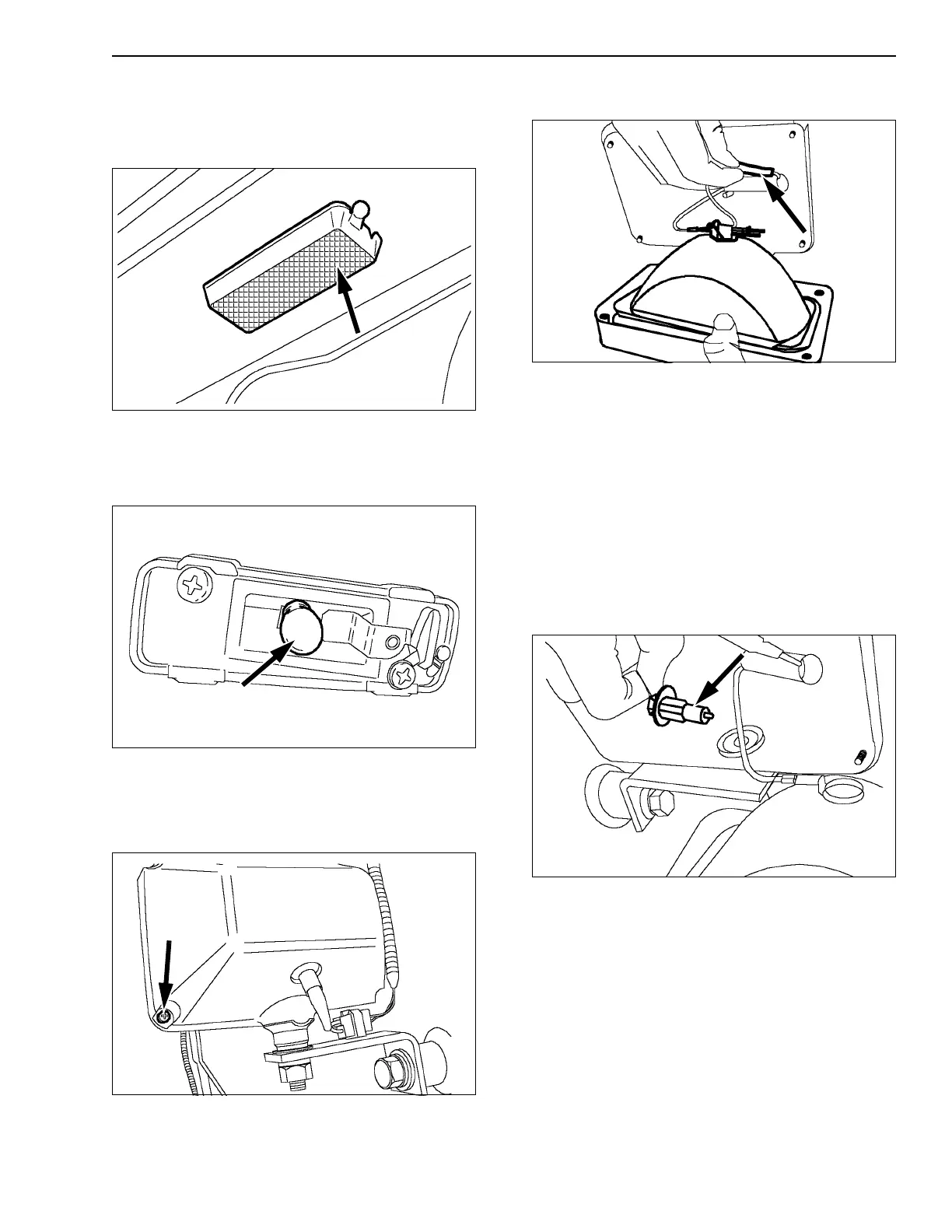

REPLACING A BULB
OPERATOR’S COMPARTMENT LIGHTING
1. Remove the cover.
CT02C058
Figure 16
2. Remove the bulb and install a bulb of the same
wattage (6 W).
3. Install the lens.
CT02D267
Figure 17
WORKING LIGHTS ON THE CAB AND ON THE
ATTACHMENT
1. Remove the 4 retaining screws.
CT02D261
Figure 18
2. Tilt the working light and disconnect the plug.
‘CT02D262
Figure 19
3. Pull the clip outwards, remove the bulb and
install a bulb of the same wattage:
CX75SR, CX80: 55 W for lights on the cab and
on the attachment.
CX135SR: 55 W for lights on the cab and 70 W
for light on the attachment.
IMPORTANT: Never put your fingers on a tungsten
iodide bulb.
4. Install the clip and reconnect the plug.
5. Put the working light back into position and install
the mounting screws.
CT02D263
Figure 20
