CHAPTER 3 - INSTRUMENTS AND CONTROLS
3-29
6-34551NA Issued 8-04 Bur
CT02C112
Figure 90
CX75SR, CX80
CT02C113
Figure 91
CX135SR

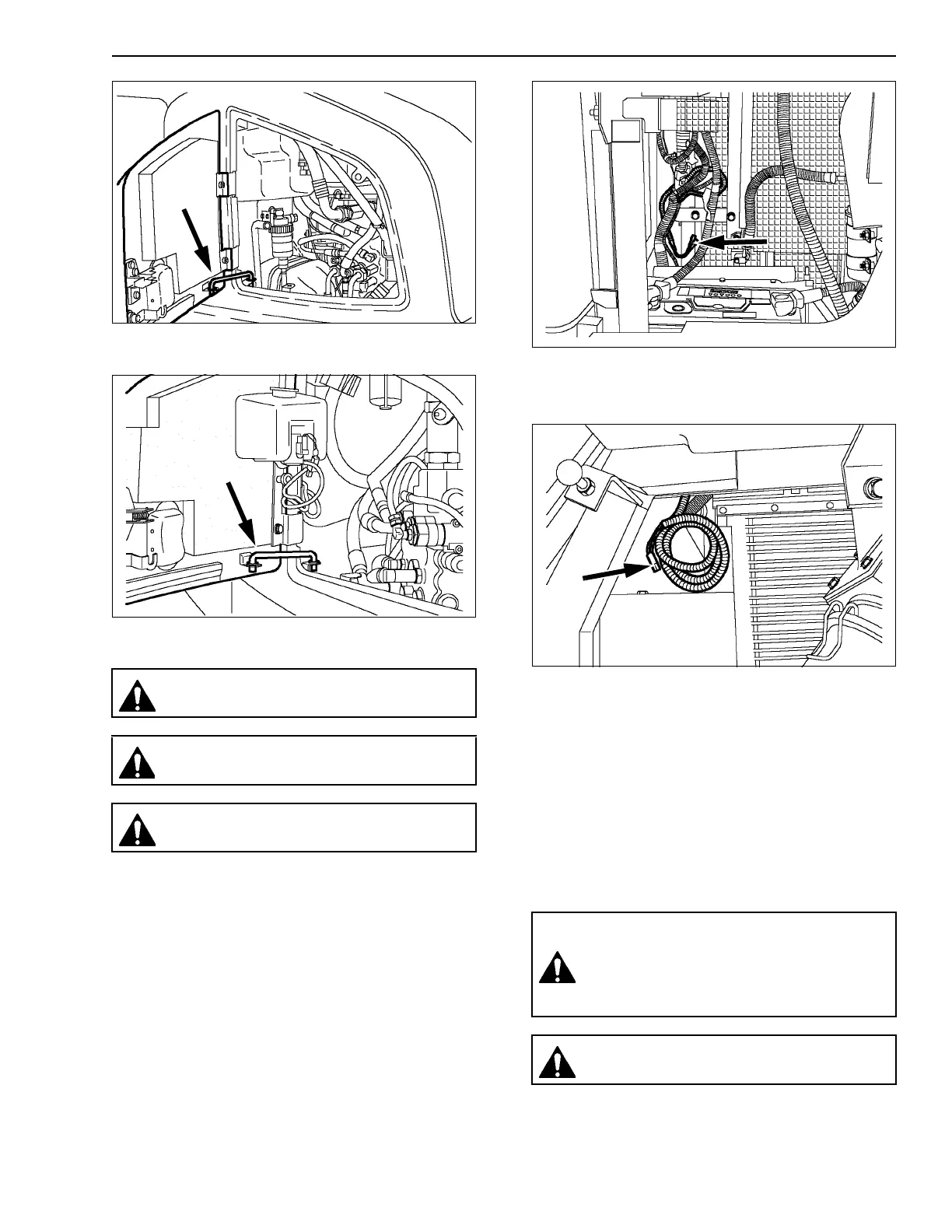

ROTATING BEACON CABLE (OPTION)
Located in the battery compartment, this cable is
designed to connect a rotating beacon (Optional).
For 12-volt rotary light.
CT02C117
Figure 92
CX75SR, CX80
For 24-volt rotary light.
CT02C118
Figure 93
CX135SR
TOWING POINT
Located behind the undercarriage.
This point is to be used for towing the machine, see
Towing the machine in section Operating
instructions.
Make sure that the slings, chains and accessories
are in perfect condition and can bear the load to be
moved.
WARNING: Always install the struts when
the doors are open.
WARNING: Before undertaking any travel,
make sure the side doors are properly closed.
WARNING: Never leave tools or other
objects behind the side doors.
WARNING: Towing is a delicate manoeuvre
which is always carried out at the risk of the
user. The manufacturer's warranty does not
apply to incidents or accidents, which occur
during towing.
WARNING: It is forbidden to use this point
for towing another vehicle.
