CHAPTER 5 - LUBRICATION, FILTERS, AND FLUIDS
5-47
6-34551NA Issued 8-04 Bur
CT02D121

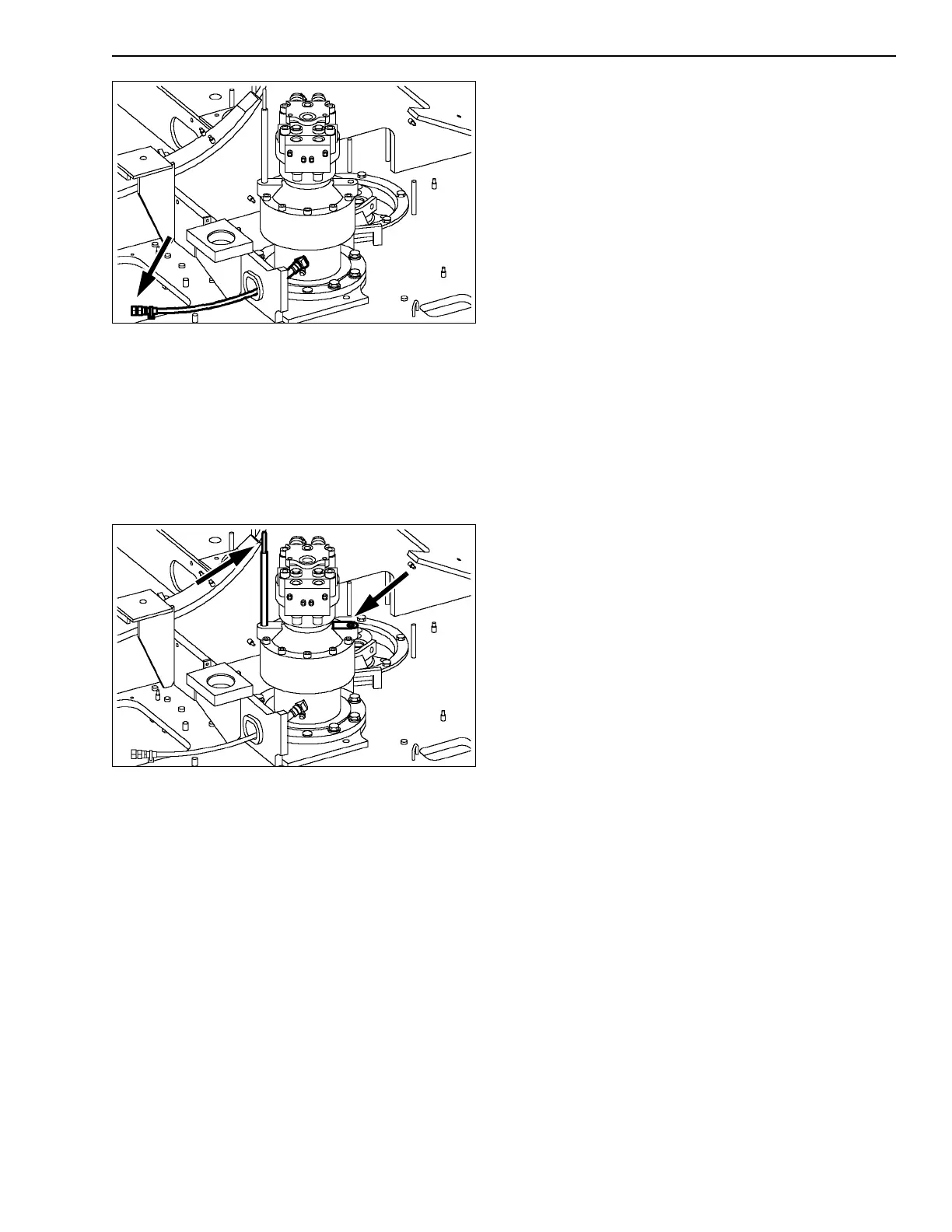

Figure 136
12. Add oil through the filler port until the level is
correct.
6. Install the dipstick and the filling plug.
7. Wait ten minutes and then use the dipstick to
check the level again. If necessary, top up
through the filler port.
NOTE: When greasing the swing reduction gear, see
Greasing the swing reduction gear.
CT02D124
Figure 137
