Quiet zone
The recommended quiet zone is listed in the table below.
Barcode position

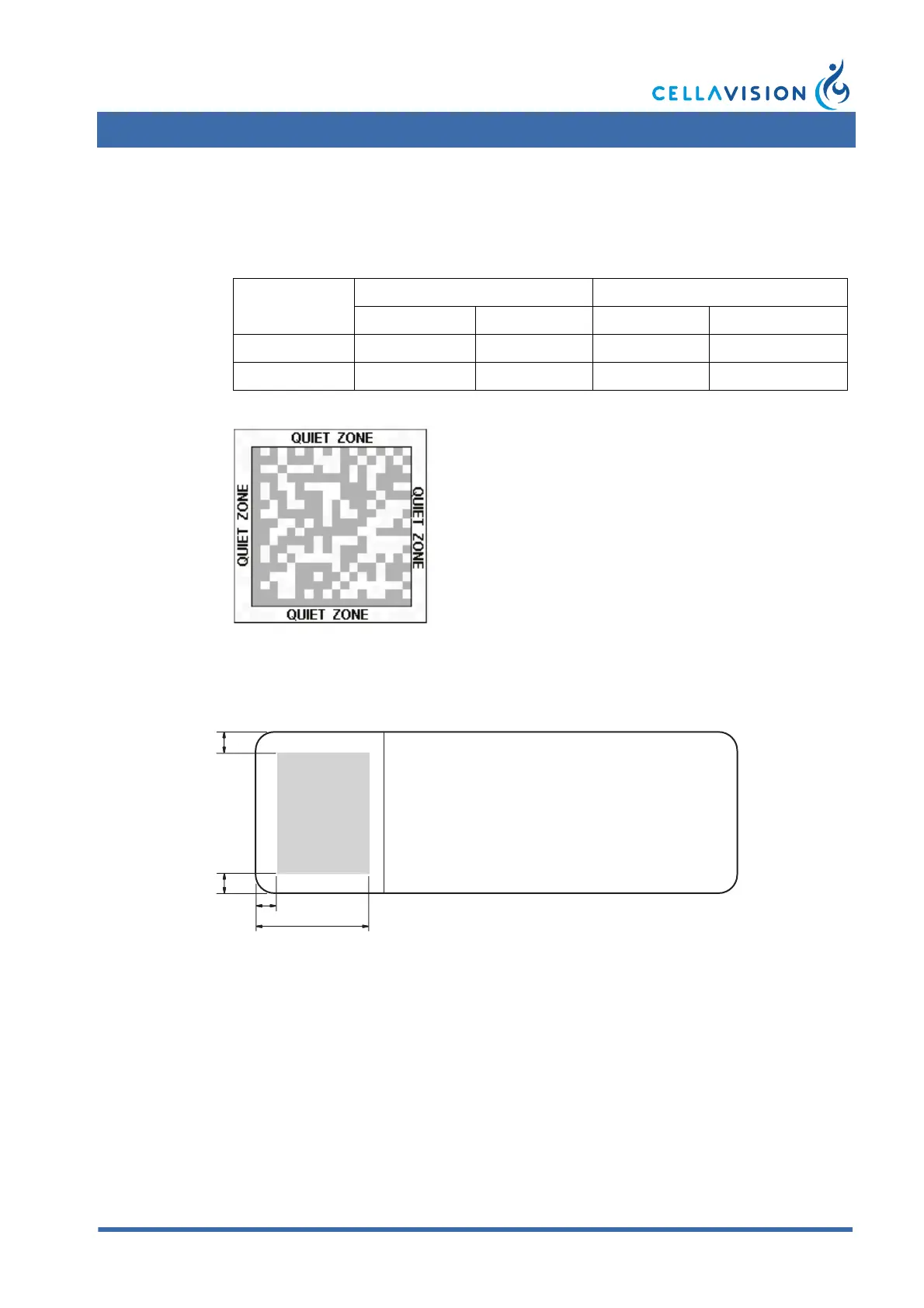

The barcode shall be positioned within the area as illustrated in the figure below.
Where
X
1
< 18 mm; X
2
> 6 mm; Y > 4 mm
Symbology
Vertical quiet zone, cells Horizontal quiet zone, cells
Top Bottom Top Bottom
DataMatrix 1 1 1 1
QR 4 4 4 4
Area where
the 2D
barcode can
be printed
Y
Y
X
1
X
2
