SetUP "Your Settings"
SetUP "Your Settings"

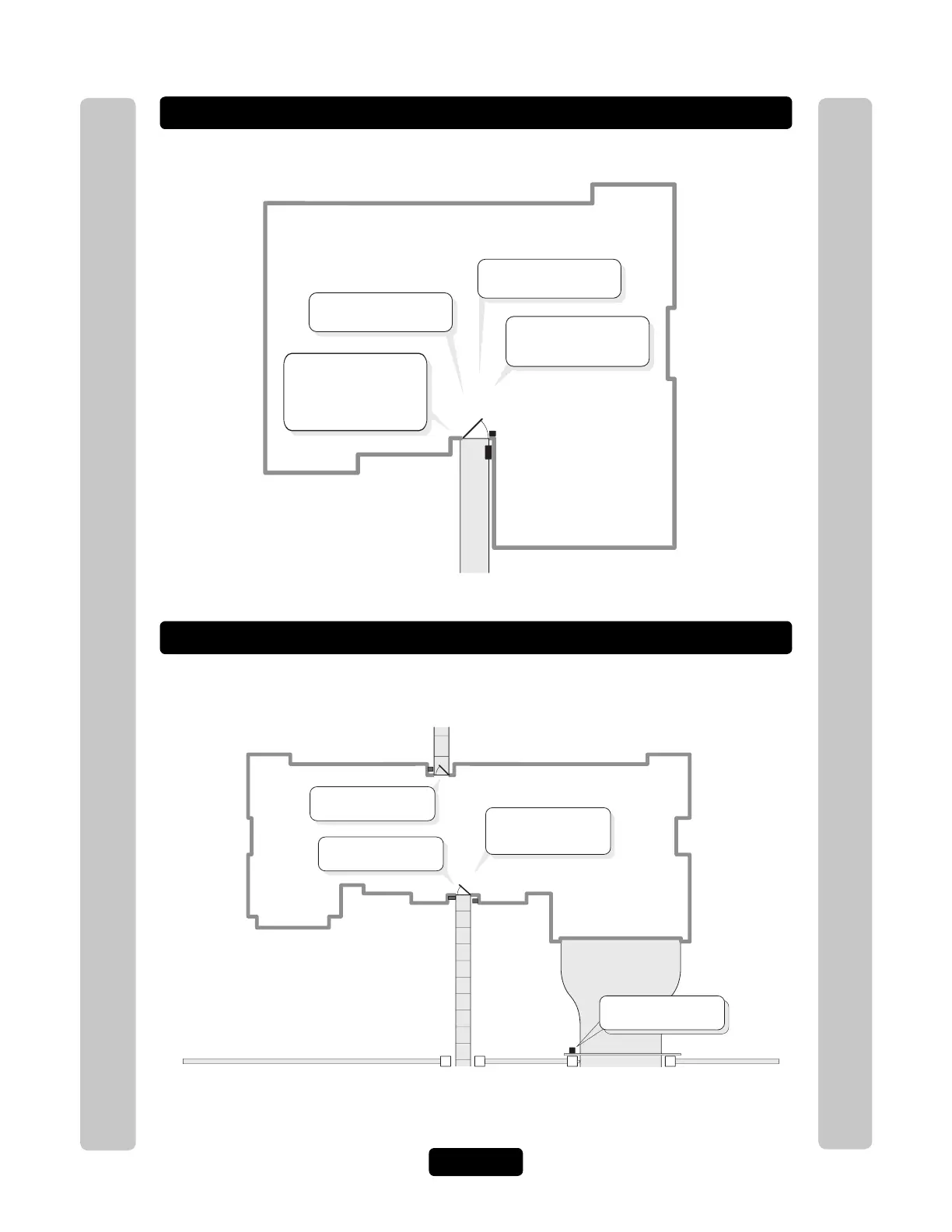

Unit Controlling 1 Door
Relay 1 - Strike Mode
Unlocks Door for 10 sec.
Relay 3 - Alarm Mode
Sounds Siren for 10 sec.
Relay 2 - Shunt Mode
Bypasses/Signals Alarm
for Maglock for 40 sec.
Relay 4 - CCTV Mode
Activates External
Camera or Recorder
(not system’s camera)
Main Keypad
(Front Door)
REX Device
(Exit)
Unit Controlling 2 Doors and Vehicle Gate
Relay 2 - Control Mode
Turns on Security Light
for 60 sec.
Main Keypad
(Front Door)
Card Reader
(Back Door)
Transmitter
(Gate Operator)
Relay 1 - Strike Mode
Unlocks Door for 10 sec.
Relay 3 - Strike Mode
Unlocks Door for 10 sec.
Relay 4 - Strike Mode
Opens Gate for 10 sec.
Postal
Lock
