Chison ECO 2 - Page 104

ECO 2 Ultrasound Diagnostic System
Page 95 / 189
 Measurement: including GS, CR, BPD, HC, AC, etc.
 Other: including arrow, archive.
7.2 Measurement
Measurement includes general measurement setting and measurement formula setting.

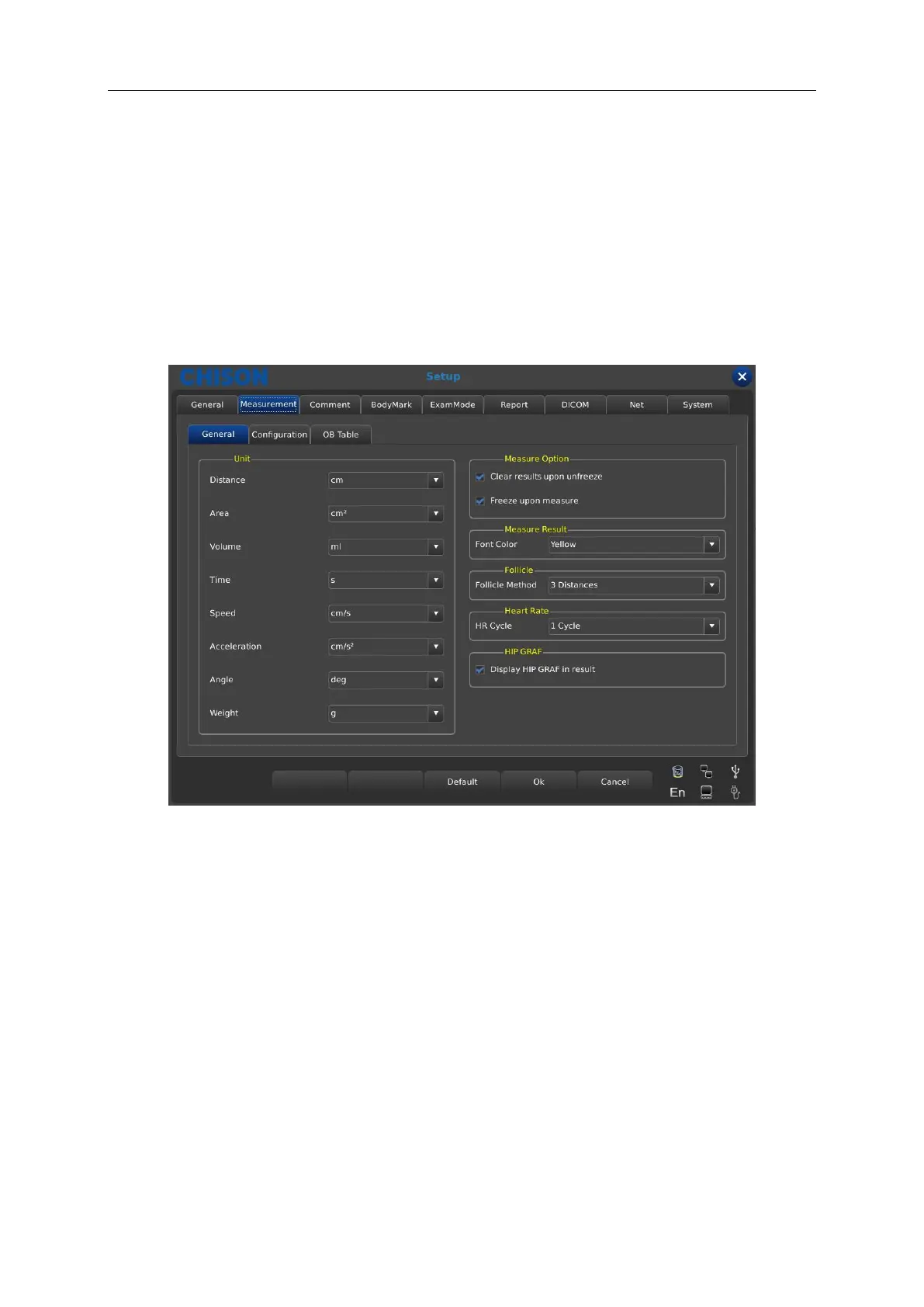

7.2.1 General measurement setting
General settings can only change the display of measurement unit.
 Distance: cm, mm
 Area: cm
2
, mm
2
 Volume: ml, l
 Time: s, ms
 Speed: cm/s, mm/s
 Acceleration: cm/s
2
, mm/s
2
 Angle: deg, rad
 Weight: g, kg
 Measure Option: whether clear results upon unfreeze, and the automatic froze image.
 Measure Result: the color of the result font is alternative, including yellow/white/orange/green.
 Follicle: ways to measure follicle, you can choose two distances and three distances.
 Heart Rate: select heart rate cycle, optional range is 1 cycle~6 cycles.
 HIP GRAF: select to display HIP GRAF in result or not.
