ECO 2 Ultrasound Diagnostic System
Page 38 / 189

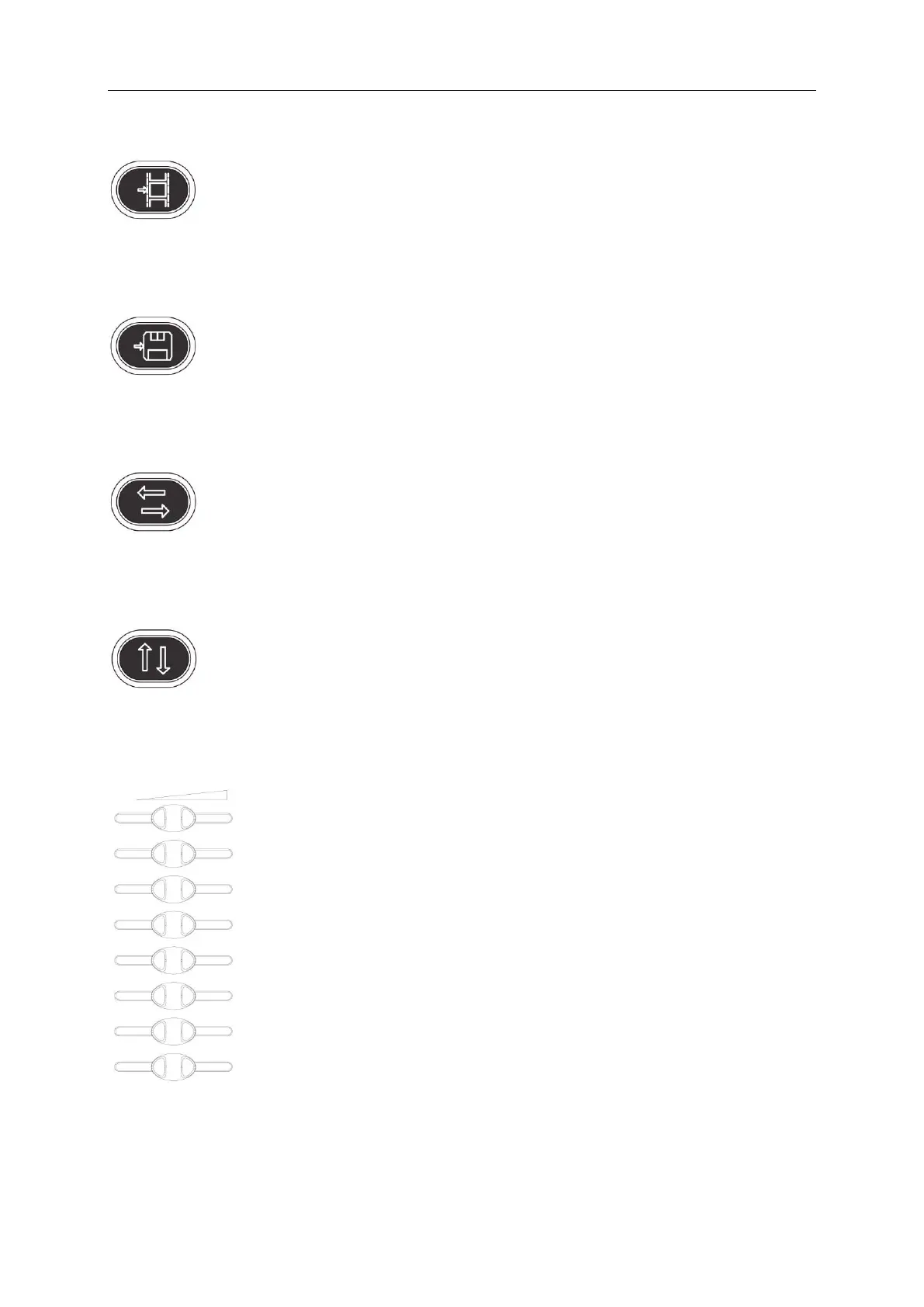

4.5.3 CINE
Only press this key to save the current cine loop.
4.5.4 SAVE
Only press this key to save the current image.
4.5.5 Left and Right Invert
Press this key to invert the image from left and right.
4.5.6 Up and Down Invert
Press this key to invert the image from up and down.
4.5.7 STC
STC can be used for adjusting gain compensation in different image depth.
4.5.8 GAIN
Rotate the knob to adjust the gain of B mode and M mode.
