4.5.9 ANGLE/ZOOM Knob
Rotate the knob to adjust the angle or zoom. Press this knob to change the function between
angle and zoom.
4.5.10 DEPTH/FOCUS Knob
Press the knob to adjust the depth and function position. Press the knob to change the function
between depth and focus position.

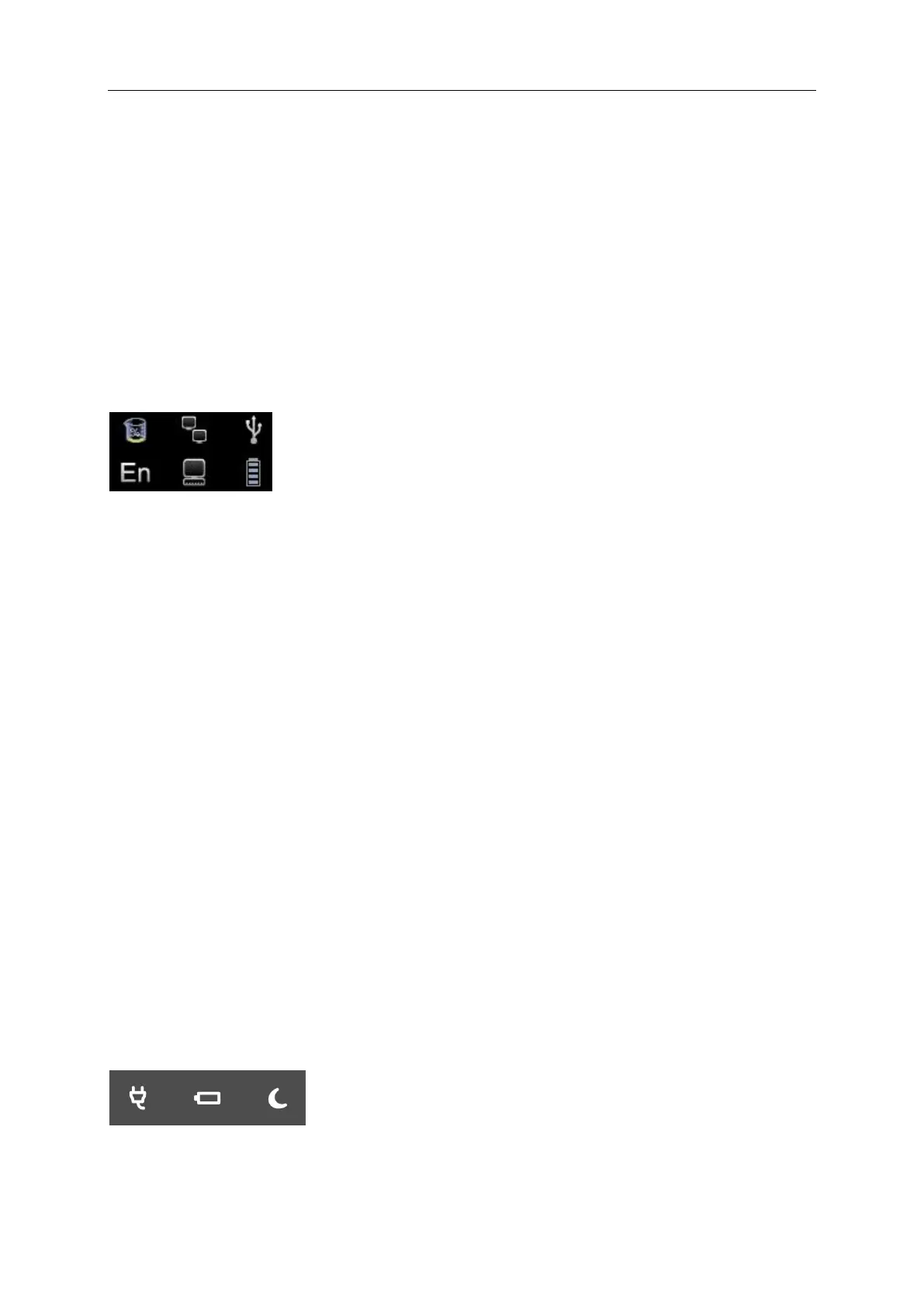

4.5.11 Information Area Indicating Machine Status
Left-to-Right of the up row: hard disk, cable network, USB.
Hard disk: press this icon to show the capacity of disc to used save data or USB flash disk in
current system
Cable network: show the present situation of cable network; press this icon to show the IP
address of current system.
USB: show whether this system connects USB flash disk or not, press this icon to show USB
safely remove interface.
Left-to-Right of the down row: Case, Task Sequence, battery gauge.
Case: press this icon to change case.
Task Sequence: press this icon to show task and its situation, to terminate the task, delete, and
so on.
Battery gauge: show the connecting situation of the battery, just press this icon to show the
present State of charge and discharge, remaining electric quantity and available time.
4.5.12 Indicator Light
From left to right: Adapter Indicator, Charge Indicator, and Sleep Indicator.
Adapter Indicator: when the main unit connects to the adapter with power supply, the indicator
