Chore-Tronics® 3 Control Control Installation

MT2398C

105

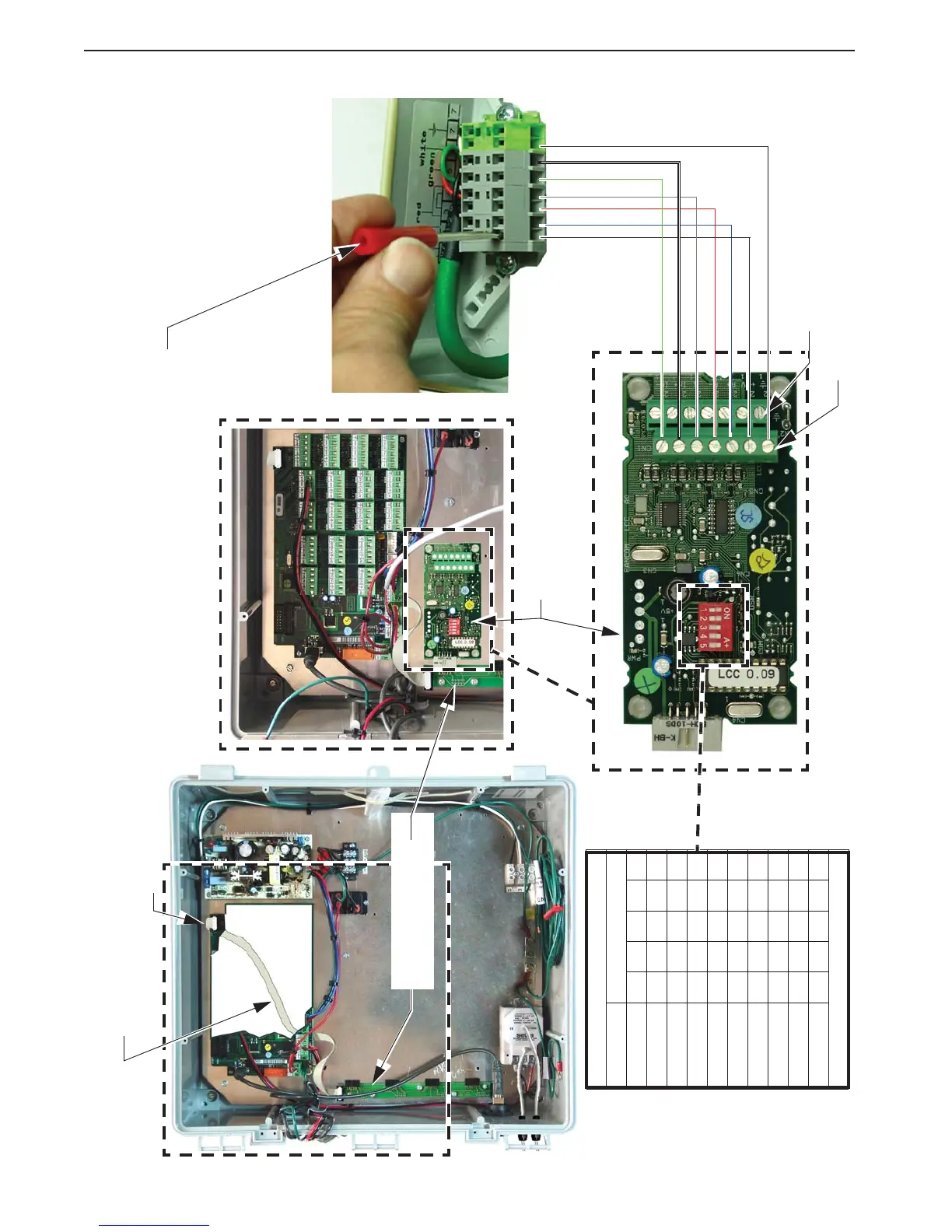

Bird Scale Wiring using the LCC Board (Scales Less than 150’ from Control)

Flat Cable under I/O Board

Flat Cable End

LCC Board (48735)

Blue

Red

Brown

Shield

White

Green

Address Settings

Dip Switch

Address # 12345

0 -----

1 X----

2 -X---

3 XX---

4 --X--

5 X-X- -

6 -XX- -

7 XXX - -

8 ---X-

"X" is Dip switch in the On position

Insert a Small Screw Driver

Bird Scale

Load Cell

Platform 2 Input

Black

Expansion Bus

and press while inserting

wires to lock in place
