Input Wiring Assignment Diagram

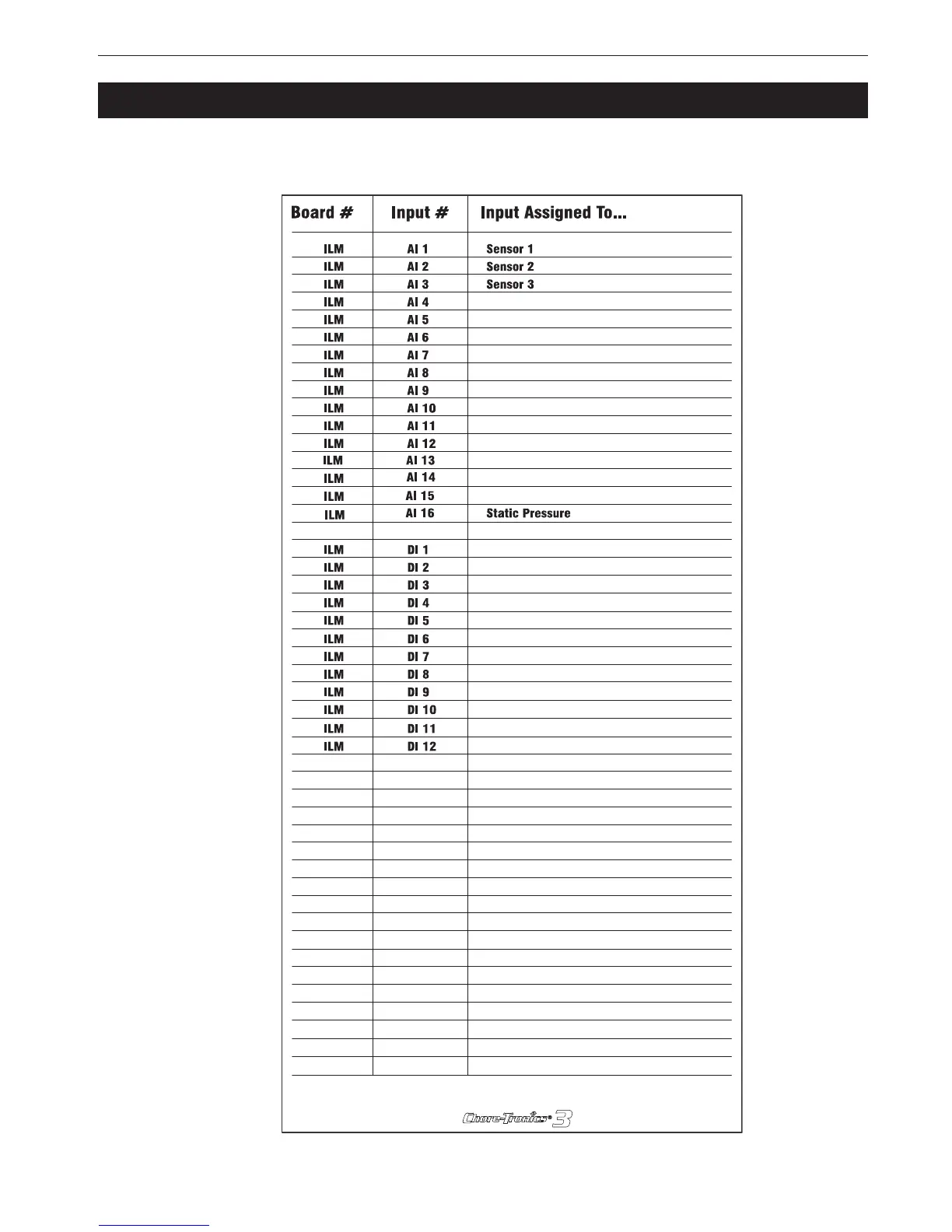

Chore-Tronics® 3 Control Input Wiring Assignment Diagram

MT2398C

139

Use this diagram, which is a copy of the Input Wiring Assignment Decal, located in

the Main Box, to record where each Input is wired to the Control.
