Refer to the Relay Assignment Decal (Inside the
Relay Box) to assign relays to each of the fans.
2. Select the Relay dropdown
to assign the proper Relay to each Tunnel Fan.
3. Select the Mode dropdown
A list of available Modes will appear. Select the
mode (modes) that the Fan needs to operate in.

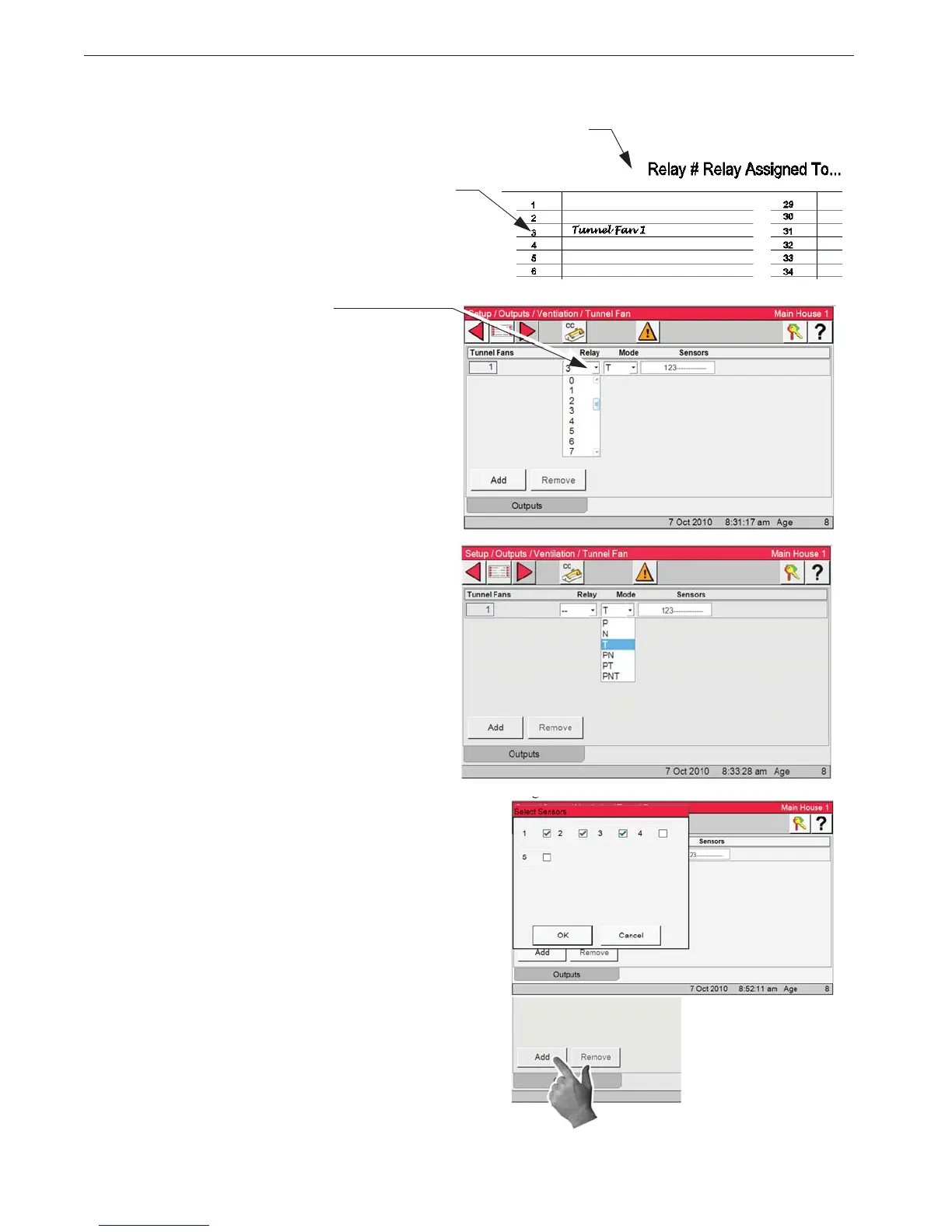

Relay assignment Decal
(inside Relay Box)
4. In the Sensors column select the senor/sensors
to be assigned to the Fan. Touch the sensor win-
dow and a select sensor box will appear with the avail-
able sensors. Select or deselect the sensors to come up
with the sensor or sensors to control the Fan. Select OK
to save.
This completes Tunnel Fan 1.
5. To assign additional Tunnel Fans, select the
Add button. The next fan will appear. Follow the same
steps as used for Tunnel Fan 1 to assign the relay, mode,
and sensor assignments.
Using the same steps continue to add Tunnel fans until
finished.
