Improving Lightning Surge Suppression Chore-Tronics® 2 Control
107
MT1843B

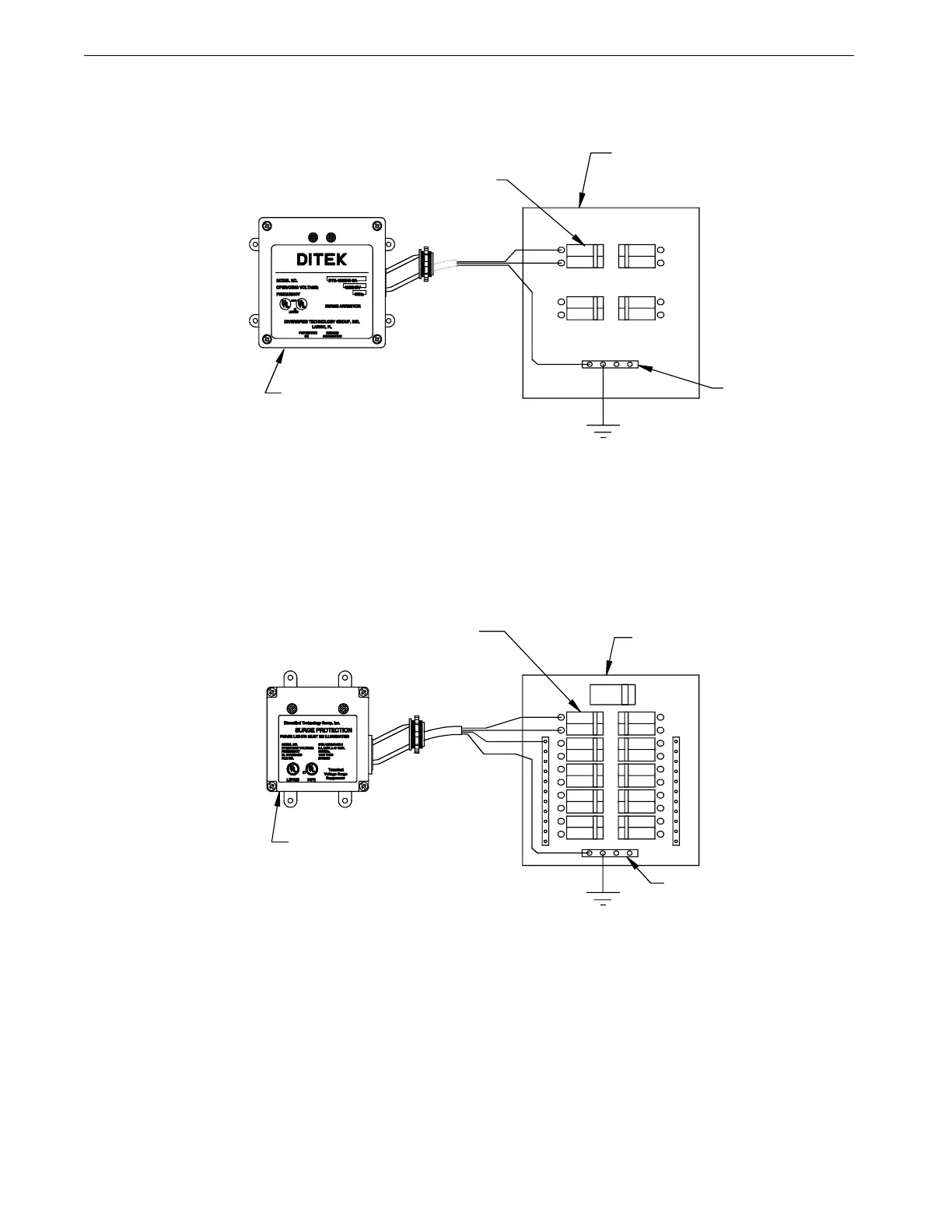

47662 Farm Main Service Panel Surge Suppressor Wiring
Diagram
47663 House Main Service Panel Surge Suppressor Wiring
Mt1701-056 012/01
P/N 47663 Main Panel
Surge Supressor
Black
Ground Bus
Green
Black
To ground rod
within 10 ft.
Main
Service Panel
(1 per farm)
Connect to any of the
individual house circuit
breakers.
Figure 116. Service Panel Surge Supressor Wiring
P/N 47662 Service Panel
Surge Suppresser
Green
Can be Connected to exhisting
220 Breaker or you can use a Breaker
dedicated to the Surge Suppressor
Mt1701-057 012/01
Note: This assumes the ground and
neutral are not bonded in each House
Service Panel in each House
To ground rod
within 10 ft.
Ground Bus
Green
Black
Black
White
Figure 117. Main Service Panel Surge Supressor Wiring
