Chore-Tronics 2 Control User Manual

Chore-Tronics® 2 Control Control Installation
MT1843B
79
Water Meter Wiring
If there are Water Meters connected to the Control, they need to be connected to one
of the Digital (DI) Inputs of the IO board. Use Twisted Pair Wire to connect the
terminals on the Water Meter with the Chore-Tronics
®
2 Control. If a Water Meter
not sold by Chore-Time is used, make sure that it has a dry contact output. Do not
use a Water Meter that sends voltage out with every pulse.
Low Water Pressure Switch Wiring
If the Low Water Pressure Switch (Chore-Time part no. 46597) is used, it needs to
be connected to one of the Digital (DI) Inputs of the IO board. Use Twisted Pair Wire
to connect the Low Water Pressure Switch to the Control. If a non-Chore-Time
pressure switch is used, make sure it is a low pressure, reverse action switch.
DI1
DI2
DI3
DI4
24V
MT1842-097 11/04
DI5
DI6
DI7
DI8
24V
(DI) of your Choice
2
Item Description
1Water Meter
2 I/O Board Digital Input (DI)
terminal of your Choice
Item Description
1Water Meter
2 I/O Board Digital Input (DI)
terminal of your Choice

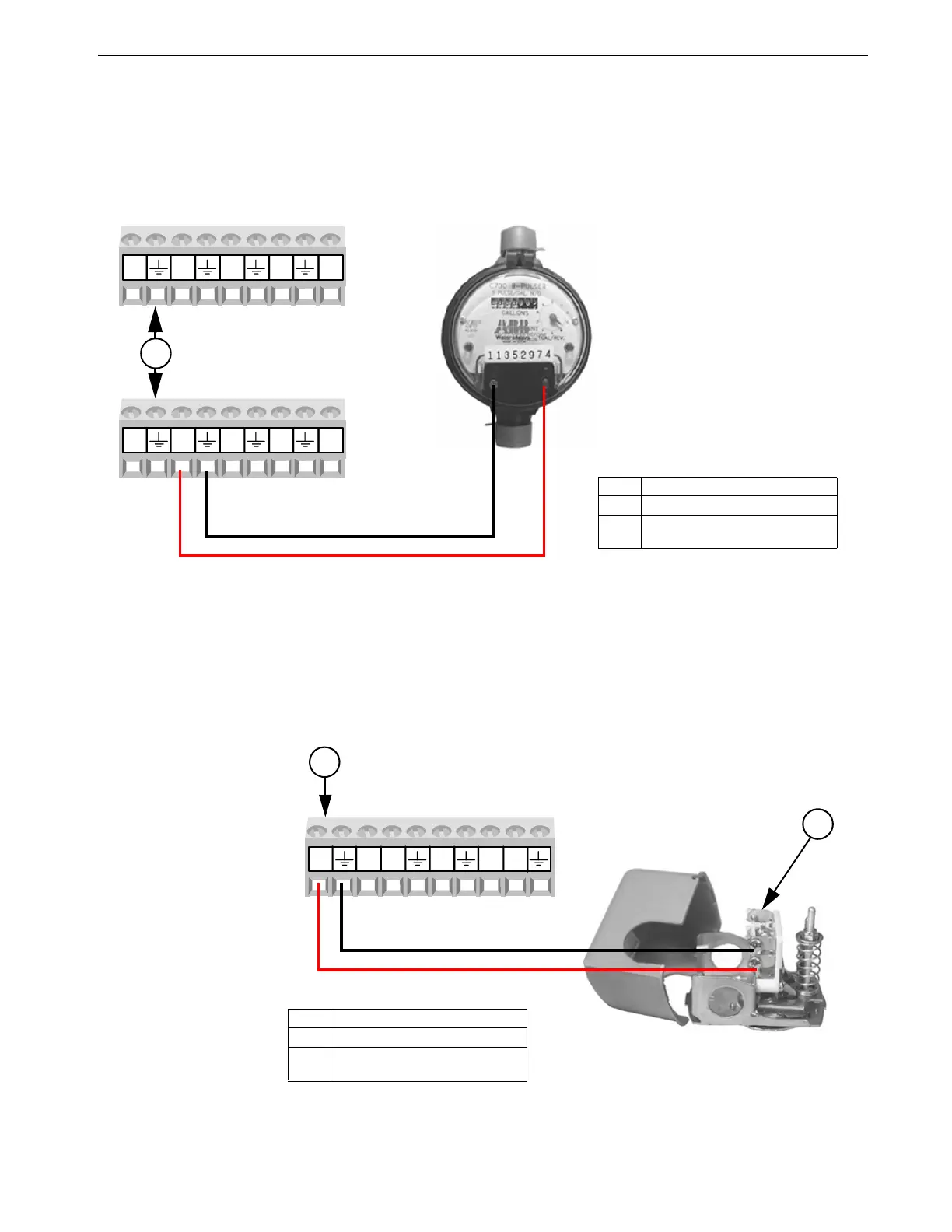

Figure 91. Water Meter Wiring
1842-127 12/04
DI1
12V
DI2
DI3
DI412V
1
2
(DI) of your Choice
Item Description
1 Low Water Pressure Switch
2 I/O Board Digital Input (DI)
terminal of your Choice
Figure 92. Low Water Pressure Switch Wiring
