Chore-Tronics 2 Control User Manual

Control Installation Chore-Tronics® 2 Control
82
MT1843B
PDS Flush Feedback Wiring
If a PDS Drinker Control is being used to automatically flush water lines, then the
Control can ignore pulses coming from the Water Meter(s) while flushing is taking
place. If this option is used then a dry contact relay must be connected to one of the
Digital (DI) Inputs of the IO Board. The coil of the relay should be energized
whenever the Control begins its flushing sequence. See Figure 96 below for
connecting the relay to the IO board of the Control.
1842-127 12/04
DI1
12V
DI2
DI3
DI412V
DI1
DI2
DI3
DI4
24V
MT1842-130 11/04
PDS Flush
Feedback Control
24 Coil VAC
Relay
2
(DI) of your Choice
Item Description
1 PDS Flush Feedback Control
2 I/O Board Digital Input (DI)
terminal of your Choice

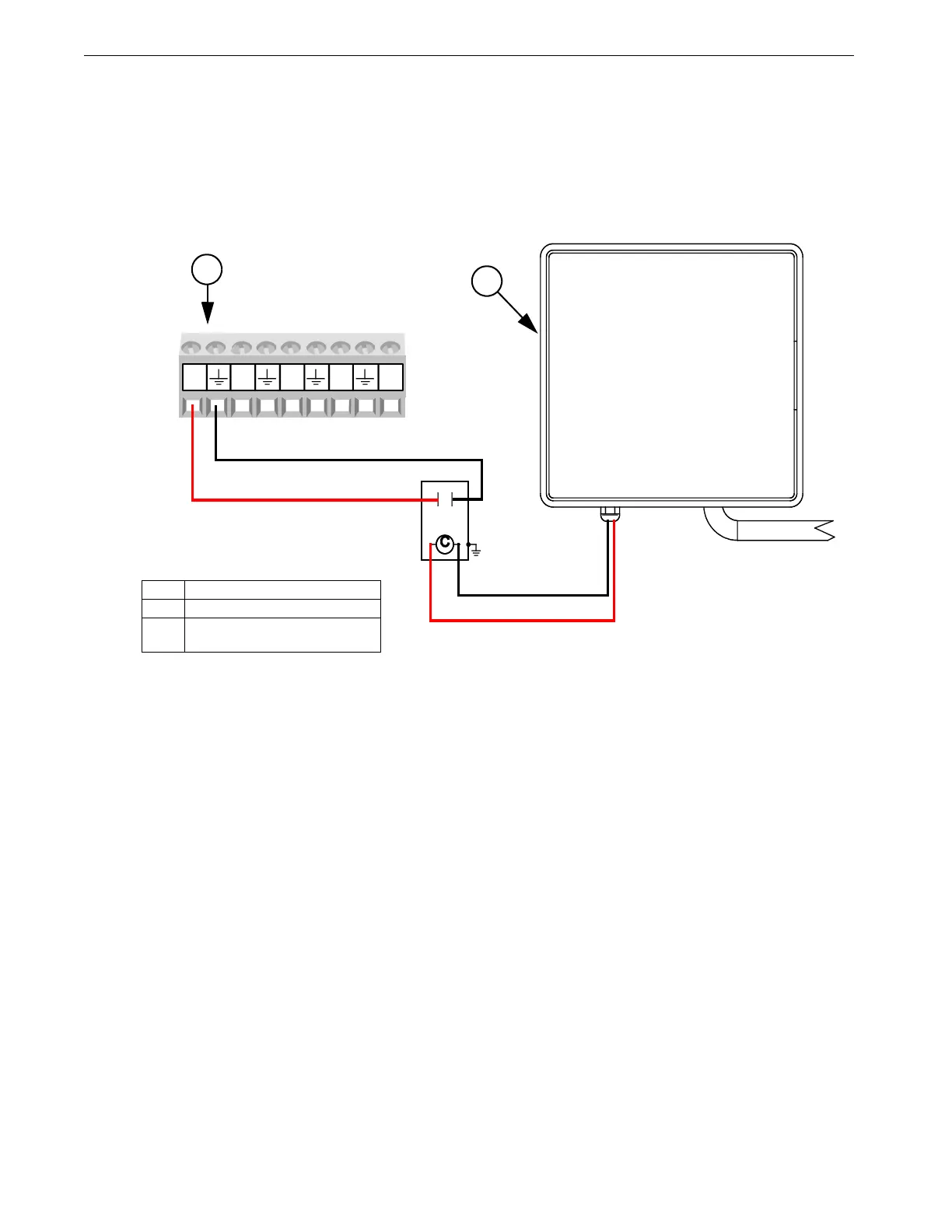

Figure 96. PDS Flush Feedback Wiring
1
