Chroma 63600 Series User Manual

Remote Operation
5-15

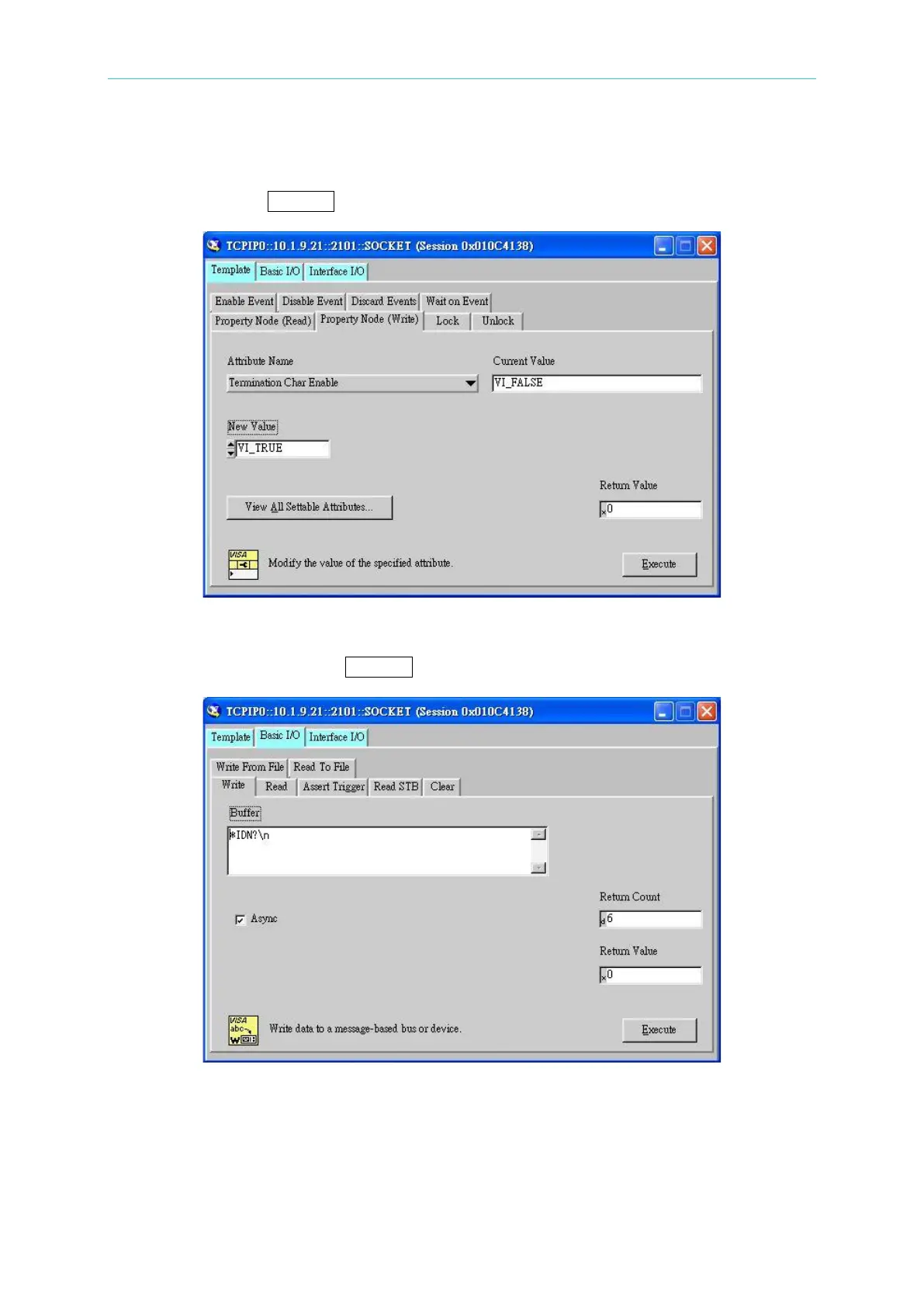

STEP 7:
Select “Termination Char Enable” for “Attribute Name” in the sub-tab “Property Node
(Write)” under “Template” tab. If “Current Value” is “VI_FALSE”, set “VI_TRUE” for New
Value and then click Execute.
STEP 8:
Select “Basic I/O” tab to use the “Write” sub-tab to give commands to 63600 (using *IDN?
as the example) and then click Execute.

Chroma 63600 Series Specifications

General

Series	63600
Operating Temperature	0°C to 40°C
Modes	CC, CV
Interface	GPIB, USB
Protection	OCP, OTP, OVP
Voltage Resolution	1mV
Cooling	Forced Air
