Chroma 63600 Series User Manual

Programmable DC Electronic Load 63600 Series Operation & Programming Manual
2-4

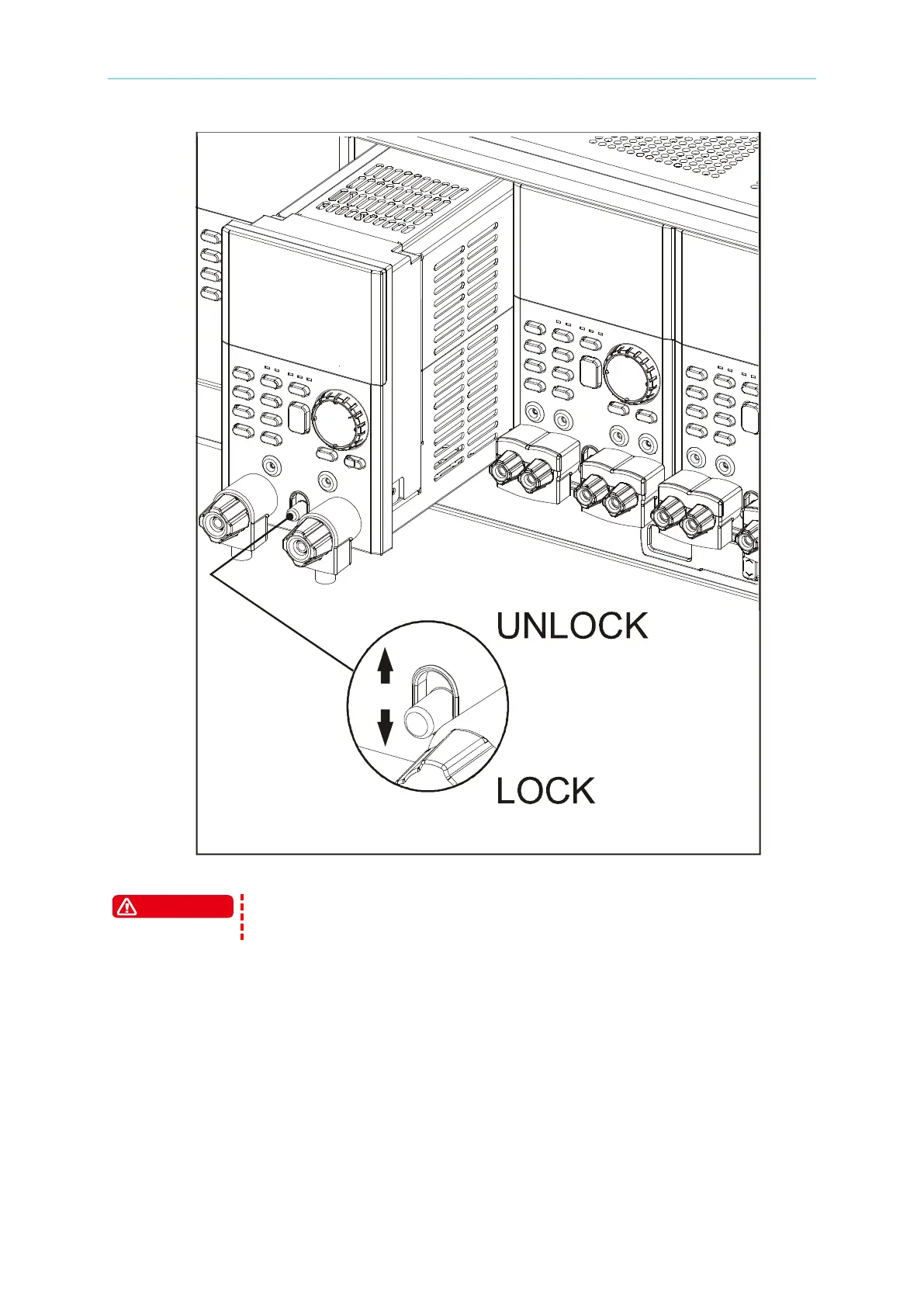

Figure 2-2 Installing Modules in the Electronic Load
If the Mainframe is not installed with all modules, the empty slot must be
covered with the panel cover for safety and airflow.
To unplug it, lift up the switch between the load connectors, using load connectors to help
you draw the module out of the mainframe.
WARNING

Chroma 63600 Series Specifications

General

Series	63600
Operating Temperature	0°C to 40°C
Modes	CC, CV
Interface	GPIB, USB
Protection	OCP, OTP, OVP
Voltage Resolution	1mV
Cooling	Forced Air
