OPERATION - REAR SUSPENSION
This rear suspension is designed to handle the var-
ious load requirements of the vehicle yet allow for a
comfortable ride.
The rear wheel bearings used are similar to the
bearings used in the front suspension. A hub and
bearing assembly is used.

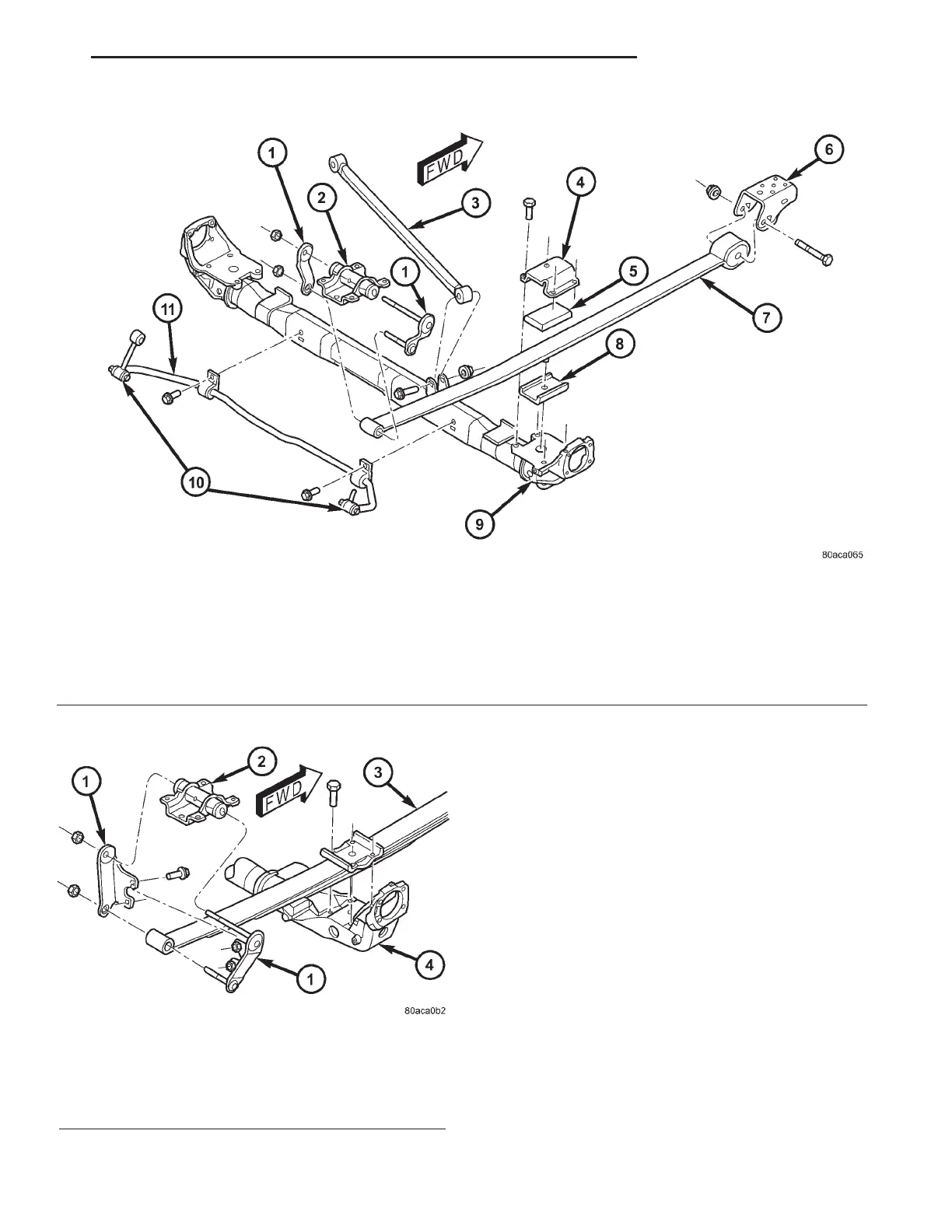

Fig. 1 Front-Wheel-Drive Rear Suspension
1 - SHACKLE 7 - LEAF SPRING (MONO-LEAF)
2 - REAR MOUNT (HANGER) 8 - ISOLATOR
3 - TRACK BAR 9 - FWD REAR AXLE
4 - SPRING PLATE 10 - STABILIZER BAR LINKS
5 - ISOLATOR 11 - STABILIZER BAR
6 - FRONT MOUNT (HANGER)
Fig. 2 All-Wheel-Drive Rear Suspension
1 - SHACKLE
2 - REAR MOUNT (HANGER)
3 - LEAF SPRING (MULTI-LEAF)
4 - AWD REAR AXLE
RS REAR SUSPENSION 2-27
REAR SUSPENSION (Continued)
