The device displays 11 different screens for the analyzer prole (Table 13) and the voltage and
current harmonics, up to the 31st order harmonic, for each one of the lines, L1, L2 and L3.
(
“4.6.- HARMONICS”)
Use keys
and to browse the different screens.
The inst symbol on the bottom of the screen indicates that the values being displayed are of
the instantaneous type.

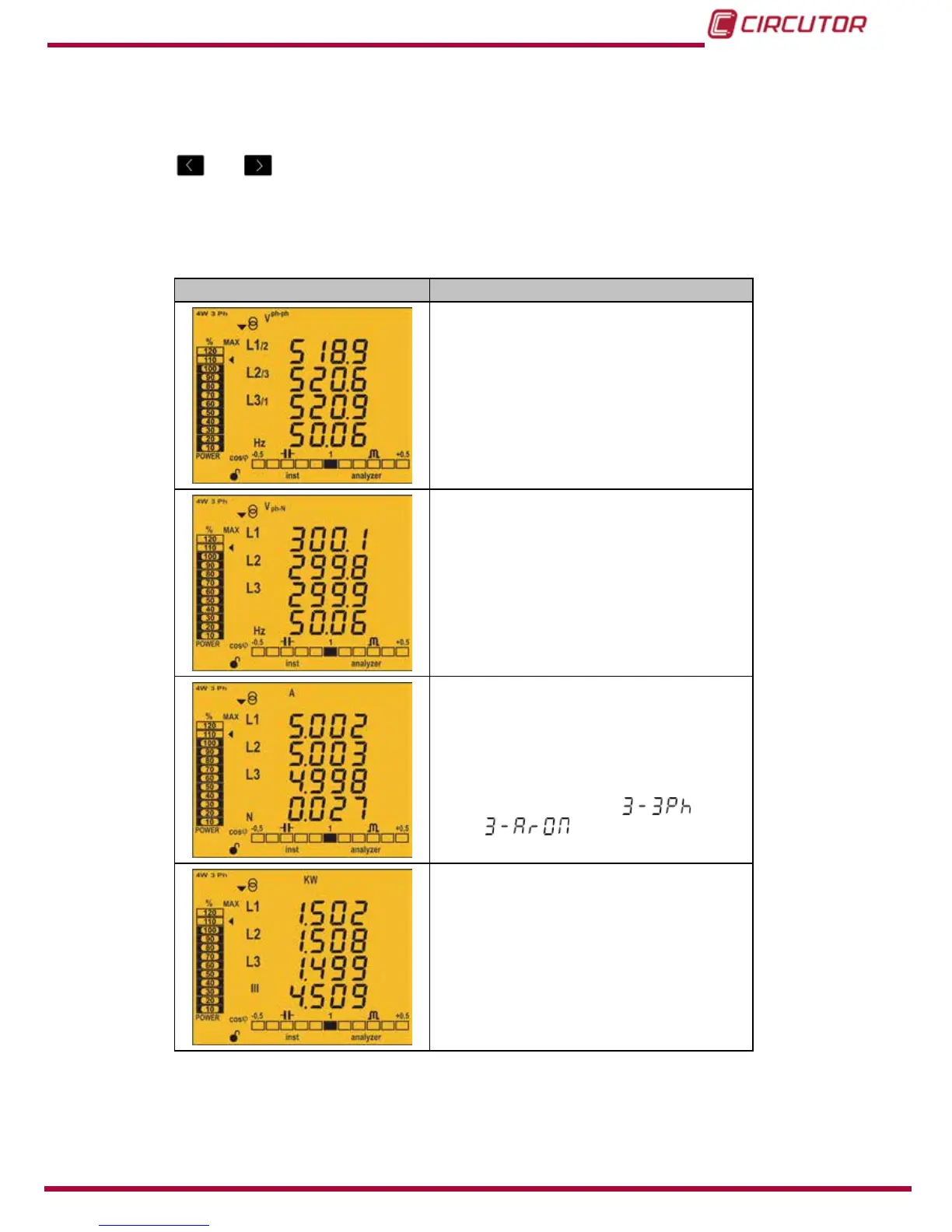

Table 13: Analyzer prole screens.
Screen Parameters (units)
phase-phase Voltage L1-L2 (V
ph-ph
)
phase-phase Voltage L2-L3 (V
ph-ph
)
phase-phase Voltage L3-L1 (V
ph-ph
)
Frequency (Hz)
phase-neutral Voltage L1 (V
ph-N
)
phase-neutral Voltage L2 (V
ph-N
)
phase-neutral Voltage L3 (V
ph-N
)
Frequency (Hz)
Current L1 (A)
Current L2 (A)
Current L3 (A)
Neutral Current (A)
(1)
(1)
Not available for the and
installation types.
Active Power L1 (M/K W)
Active Power L2 (M/K W)
Active Power L3 (M/K W)
Active Power III (M/K W)
The generation values are not measured
when the 2 quadrant option is selected.
