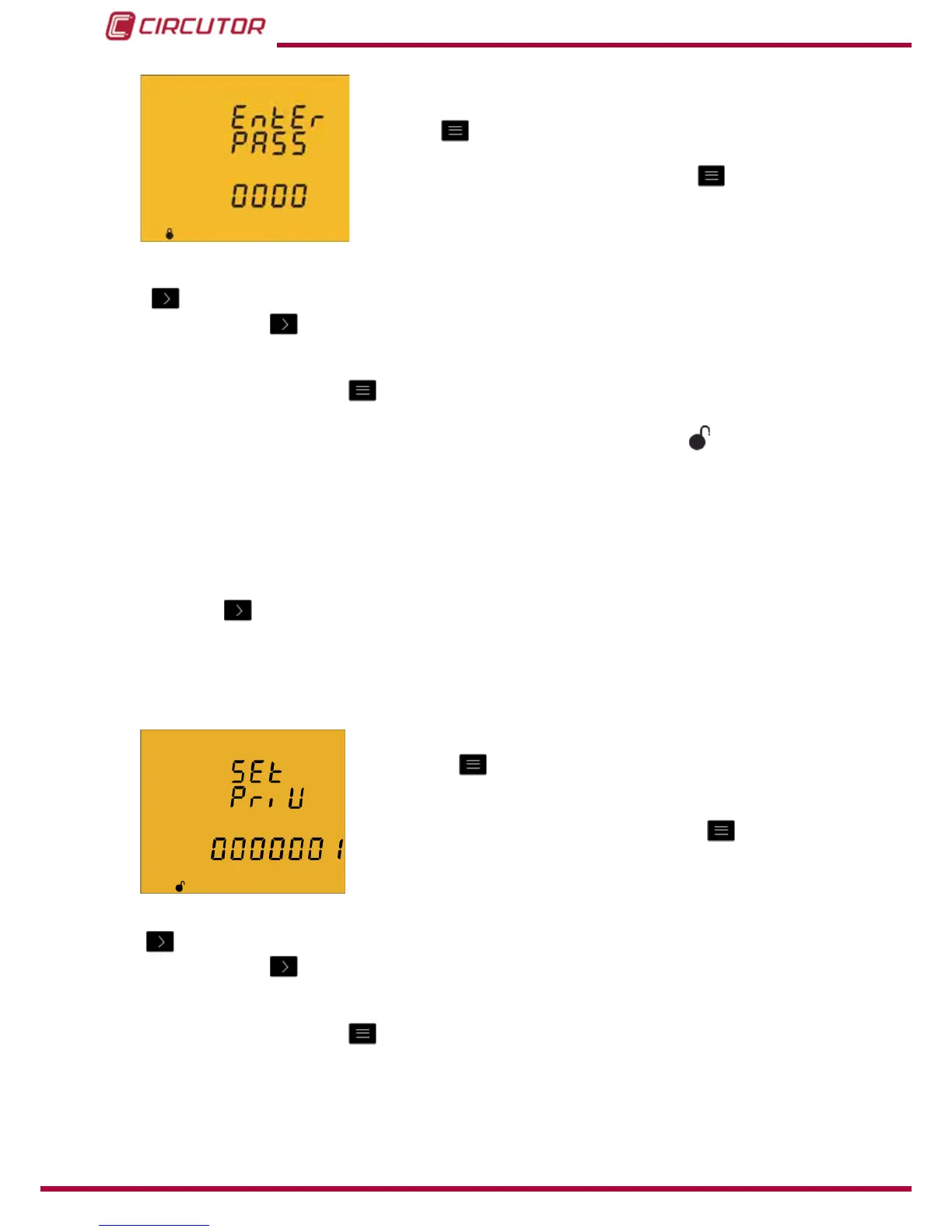

Enter the password in this screen to modify the programming
parameters.
Press key
for 3 seconds to edit the password. The prog icon
will be displayed on the bottom of the screen.
To enter or modify the value, press the
key repeatedly,
increasing the value of the ashing digit.
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
If you press the
key after changing the last digit, it will jump back to the rst digit so you
can modify the previously programmed values again.
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
If the password is correct, the icon will change its status to not locked
.
If you do not enter the password or it is incorrect, you can open the programming menu but it
cannot be modied.
The programming menu is unlocked for a short period of time and it will be locked again when
you exit the device's menu.
To permanently unlock the device, select the programming parameter
“4.9.30. Locking the
programming”
Press key to access the next programming step.
Default password: 1234.
4.9.1. PRIMARY VOLTAGE
On this screen the voltage transformer primary is programmed.
Press key
for 3 seconds to edit the transformer primary
value. The prog icon will be displayed on the bottom of the
screen.
To enter or modify the value, press the
key repeatedly,
increasing the value of the ashing digit.
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
If you press the
key after changing the last digit, it will jump back to the rst digit so you
can modify the previously programmed values again.
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
The programmed value will be deleted if the entered value is higher than the maximum
programming value.
Maximum programming value: 599999.
