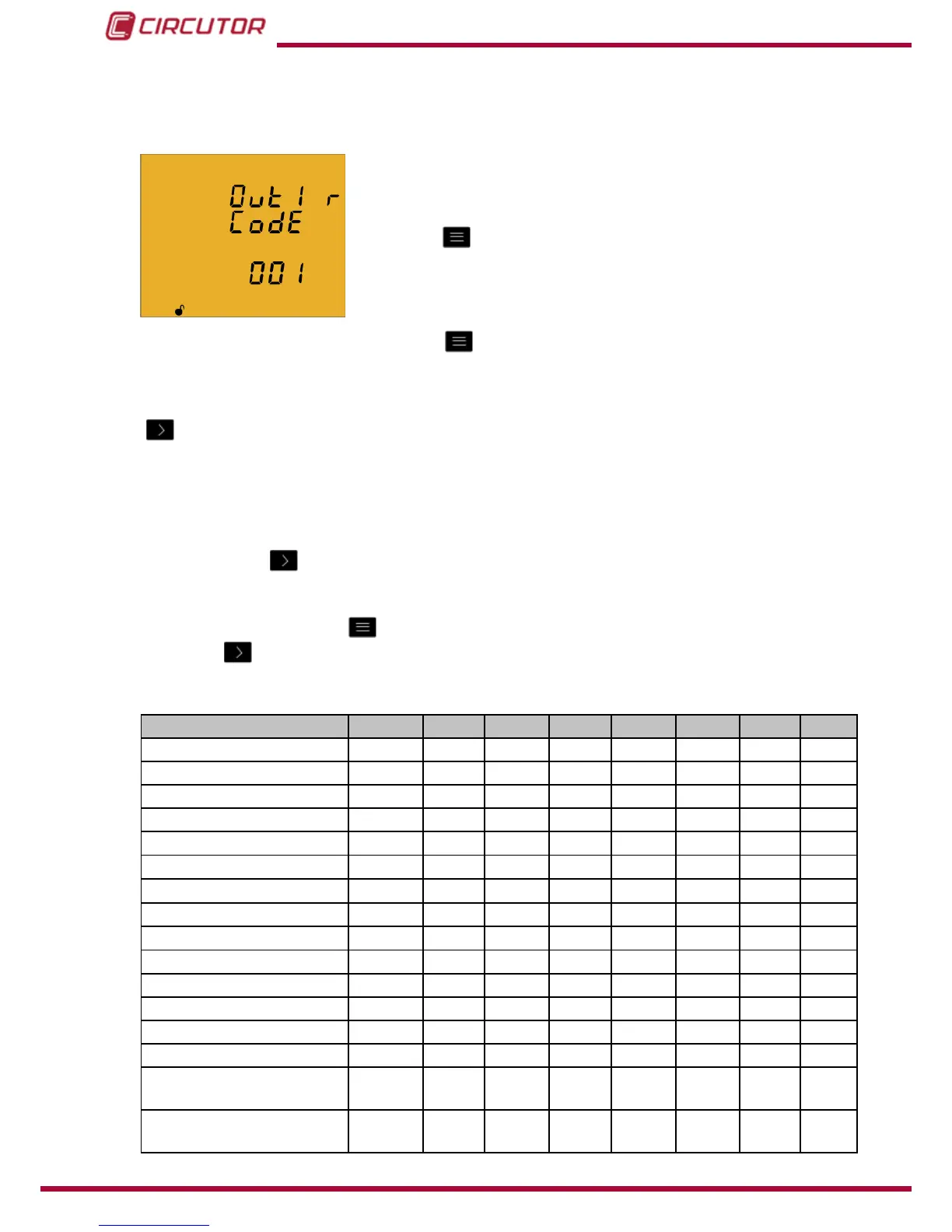

4.9.23. PROGRAMMING ALARM 1 (RELAY 1)
Note : Conguration parameters not available for the CVM-C10-FLEX model.
The variable code is selected on this screen, depending on
Table
16,
which will control alarm relay 1.
Press key
for 3 seconds to edit the code selection. The prog
icon will be displayed on the bottom of the screen.
To enter or modify the value, press the
key repeatedly, increasing the value of the ashing
digit.
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
When you enter the code of a variable on the display, the symbols for that variable will be
activated.
Set the value to 00 if you do not wish to program a variable.
If you press the
key after changing the last digit, it will jump back to the rst digit so you
can modify the previously programmed values again.
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
Press key
to access the next programming step.
Table 16: Parameter codes used to program the outputs.
Parameter Phase Code Phase Code Phase Code Phase Code
Phase-Neutral Voltage L1 01 L2 09 L3 17 - -
Current L1 02 L2 10 L3 18 - -
Active power L1 03 L2 11 L3 19 III 25
Inductive Reactive Power L1 04 L2 12 L3 20 III 26
Capacitive Reactive Power L1 05 L2 13 L3 21 III 27
Apparent power L1 06 L2 14 L3 22 III 28
Power factor L1 07 L2 15 L3 23 III 29
Cosine φ L1 08 L2 16 L3 24 III 30
% THD V L1 36 L2 37 L3 38 - -
% THD A L1 39 L2 40 L3 41 - -
Phase-Phase Voltage L1/2 32 L2/3 33 L3/1 34 - -
Frequency - 31 - - - - - -
Neutral current - 35 - - - - - -
Maximum current demand L1 45 L2 46 L3 47 III 44
Active Power Maximum
Demand
- - - - - - III 42
Apparent Power Maximum
Demand
- - - - - - III 43
58
