IEEE IEEE measurement convention.
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
Press key
to access the next programming step.

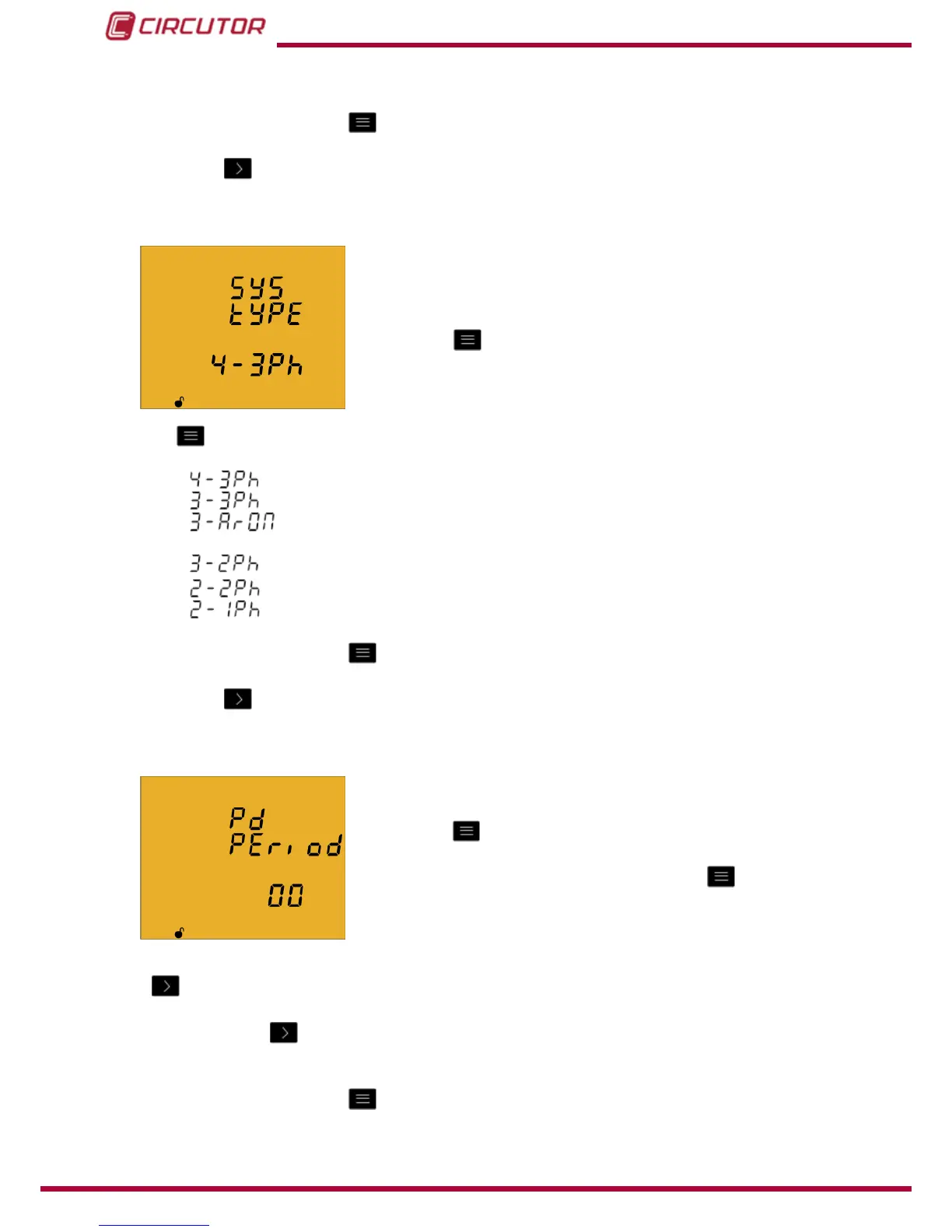

4.9.9. TYPE OF INSTALLATION
The type of installation is selected on this screen.
Press key
for 3 seconds to edit the type of installation. The
prog icon will be displayed on the bottom of the screen.
The
key is used to browse the different options
Three-phase network measurement with a 4-wire connection.
Three-phase network measurement with a 3-wire connection.
Three-phase network measurement with a 3-wire connection and
transformers with an ARON connection .
Two-phase network measurement with a 3-wire connection.
Single-phase network measurement, phase to phase, with a 2-wire connection.
Single-phase network measurement, phase to neutral, with a 2-wire connection.
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
Press key
to access the next programming step.
4.9.10. MAXIMUM DEMAND INTEGRATION PERIOD
The maximum demand integration period is programmed in
minutes on this screen.
Press key
for 3 seconds to edit the integration period value.
The prog icon will be displayed on the bottom of the screen.
To enter or modify the value, press the
key repeatedly,
increasing the value of the ashing digit.
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
If you press the
key after changing the last digit, it will jump back to the rst digit so you
can modify the previously programmed values again.
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
50
To Next Page
