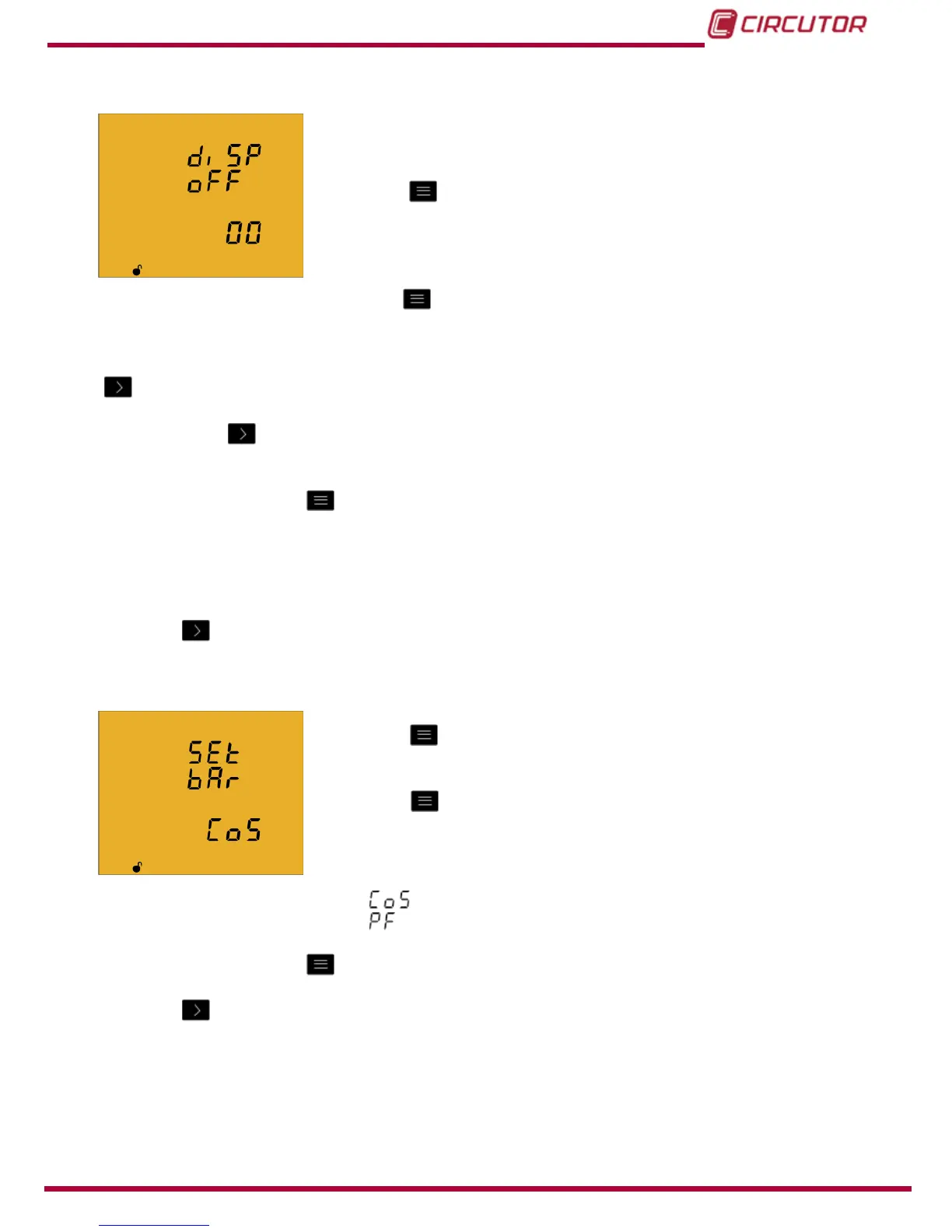

4.9.13. BACKLIGHT, TURNING ON THE BACKLIT DISPLAY
The time that the Backlight will stay lit (in seconds) is
programmed on this screen after the last keystroke on the unit .
Press key
for 3 seconds to edit the backlight value. The prog
icon will be displayed on the bottom of the screen.
To enter or modify the value, press the
key repeatedly, increasing the value of the ashing
digit.
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
If you press the
key after changing the last digit, it will jump back to the rst digit so you
can modify the previously programmed values again.
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
Maximum programming value: 99 seconds.
Minimum programming value: 0 seconds.
Note: The value 00 indicates that the backlight will stay permanently lit.
Press key
to access the next programming step.
4.9.14. SELECTING THE Cos φ - PF BAR ON THE DISPLAY
This screen is used to select the Cos
φ - PF bar viewing option.
Press key for 3 seconds to edit the selection. The prog icon
will be displayed on the bottom of the screen.
Press key
to browse the two viewing options.
Displaying the Cos φ.
Displaying the Power Factor
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
Press key
to access the next programming step.
