Circutor CVM-C10 - PROGRAMMING ALARM 2 (RELAY 2); PROGRAMMING ALARM 3 (DIGITAL OUTPUT T1)

Normally closed contact.
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
Press key
to access the next programming step

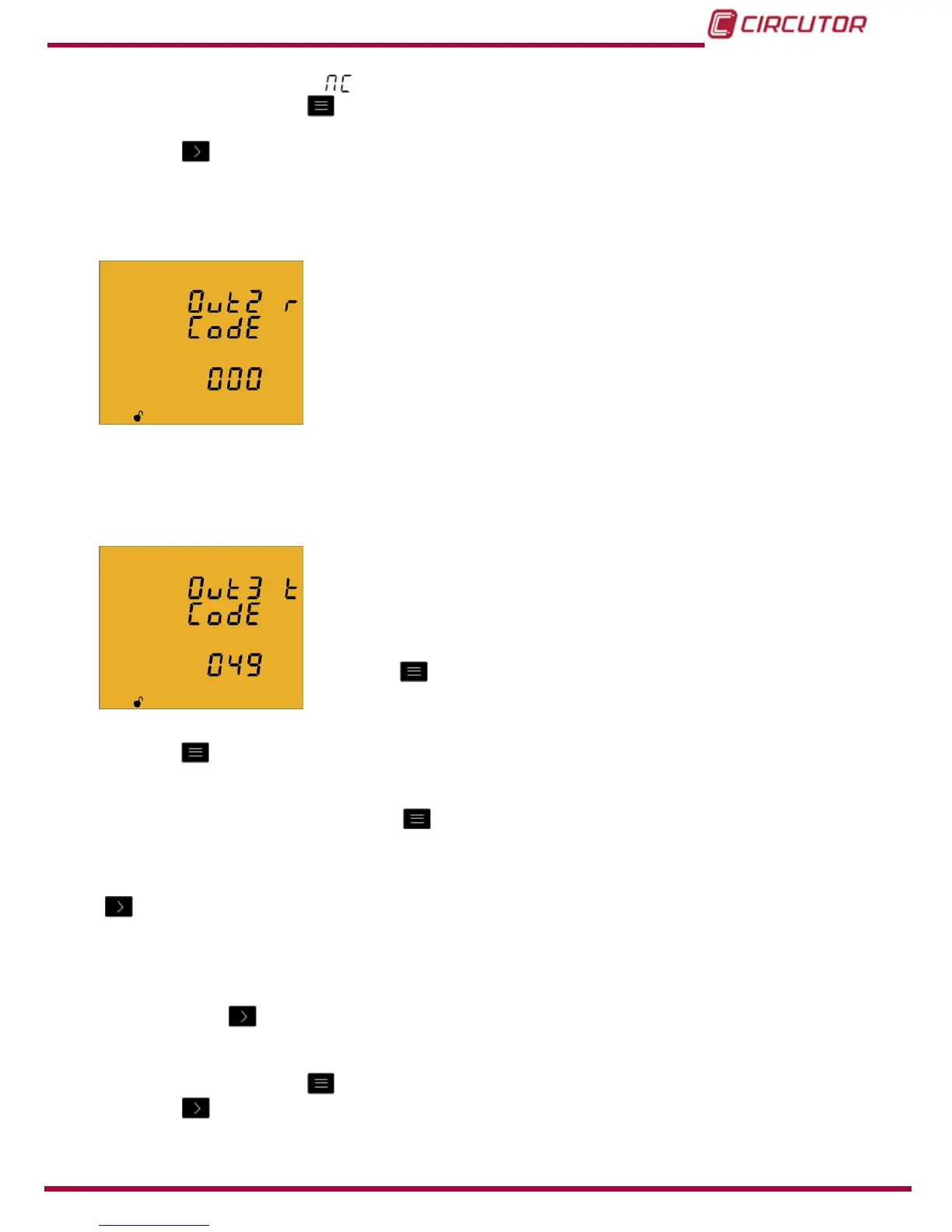

4.9.24. PROGRAMMING ALARM 2 (RELAY 2)
Note : Conguration parameters not available for the CVM-C10-FLEX model.
The values for alarm relay 2 are programmed on this screen.
They are programmed as in the case of alarm relay 1, see
“4.9.23. Programming alarm 1 (Relay 1)”
4.9.25. PROGRAMMING ALARM 3 (DIGITAL OUTPUT T1)
Note : Conguration parameters not available for the CVM-C10-FLEX model.
All values for digital output T1 are programmed on this screen.
The variable code is selected on this screen, depending on
Table
16
and Table 19, which will control digital output T1.
Press key
for 3 seconds to edit the code selection. The prog
icon will be displayed on the bottom of the screen.
Press key
for 3 seconds to edit the code selection. The prog icon will be displayed on the
bottom of the screen.
To enter or modify the value, press the
key repeatedly, increasing the value of the ashing
digit.
When the desired value is shown on the screen, move onto the next digit by pressing the key
to modify the other values.
When you enter the code of a variable on the display, the symbols for that variable will be
activated.
Set the value to 00 if you do not wish to program a variable.
If you press the
key after changing the last digit, it will jump back to the rst digit so you
can modify the previously programmed values again.
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
Press key
to access the next programming step
63
Instruction Manual
CVM-C10
