4.9.- PROGRAMMING
From the programming menu you can:
Lock the status of the menu.
Dene the transformation ratios.
Select the number of quadrants and type of installation.
Select the operation prole of the device.
Program the carbon emission ratio, kgCO
2,
.
Program the cost ratio.
Program the maximum demand parameters.
Delete the energy meters and the maximum and minimum values.
Modify the display's backlight.
Activate the harmonic display option.
Program alarms.
Program Modbus communications
The programming parameters are validated as follows:
When on reaching the last point on the programming menu (“
4.9.30. Locking the pro-
gramming
”) the key is pressed
At any point in the programming, by pressing the key or pressing for 3 se-
conds.
If the device is RESET before validation or no key is pressed for 30 seconds, the conguration
will not be stored in the memory.
To enter the programming menu press the
key for 3 seconds.

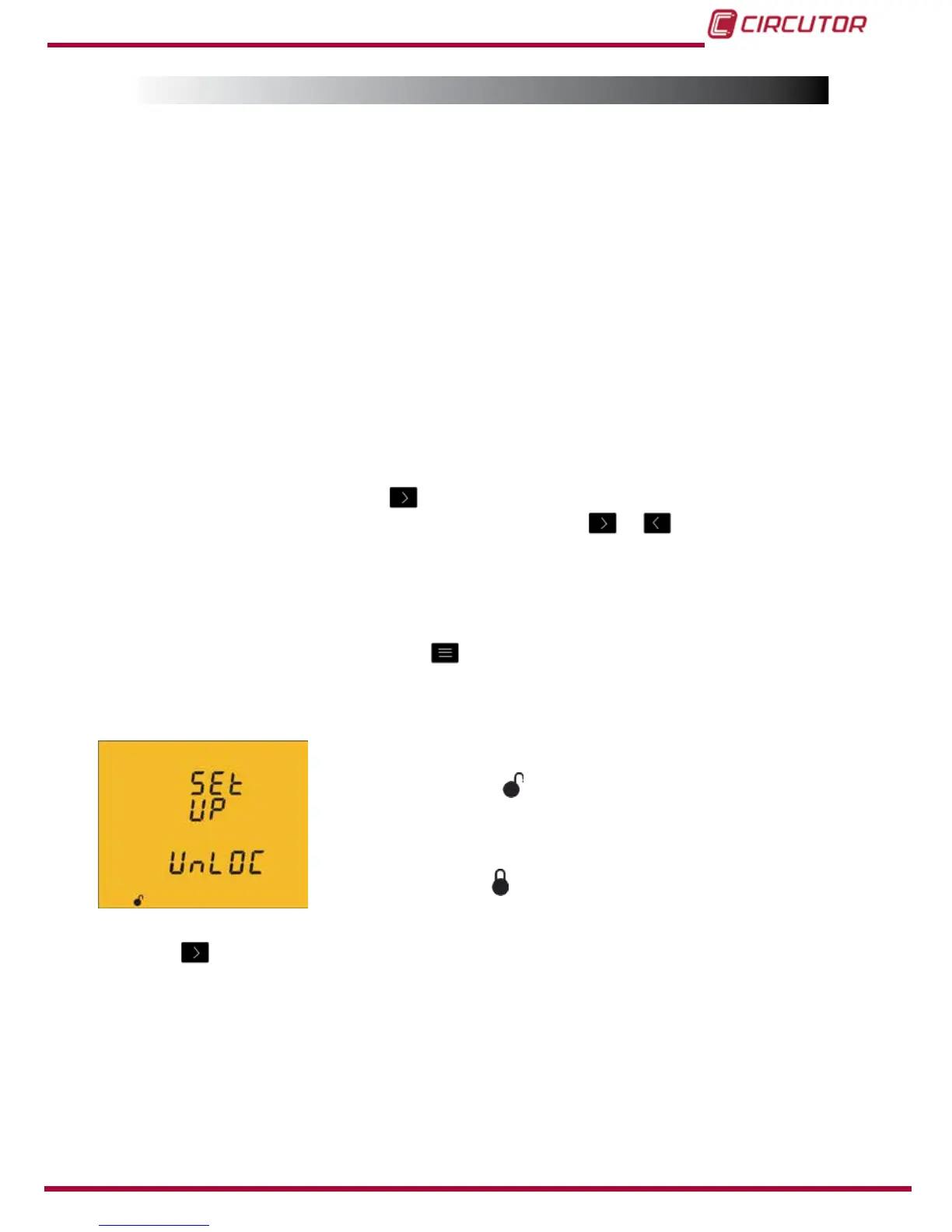

The home screen of the menu indicates whether the menu is locked or not:
UnLOC
When you enter the programming menu you can view and modify
the programming. Icon
on the display indicates that the unit
is not locked.
LOC
When you enter the programming you can view the programming
but not modify it. Icon
indicates the locking status.
Press key
to access the rst programming step.
The following screen will be displayed if the programming menu is locked,
LOC:
45
