4.5.3. USER
This prole is identied with the user symbol on the bottom of the screen (Figure 31).

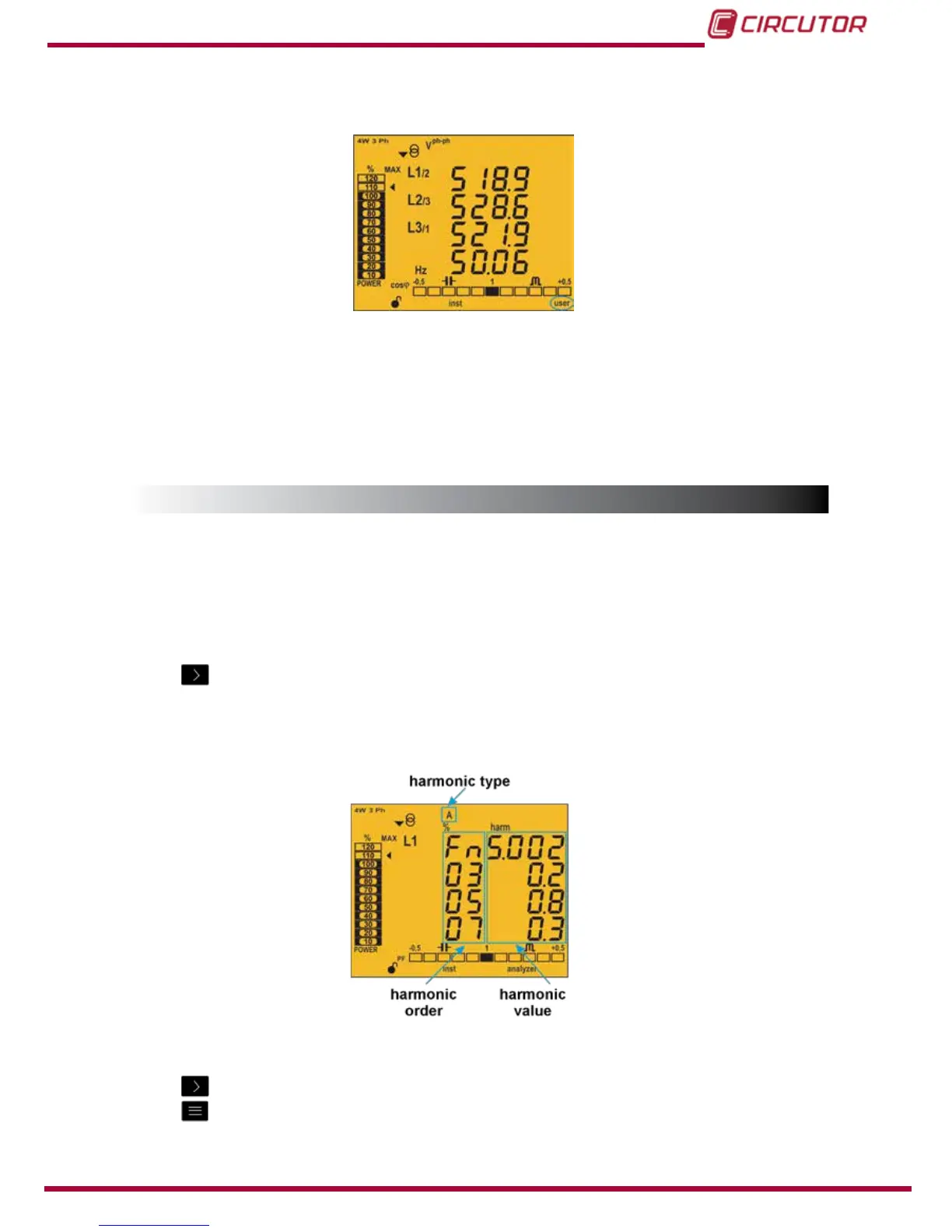

Figure 31: Screen of the CVM-C10 with the user prole.
This prole displays the screens selected in the programming menu (“4.9.12. Selecting the op-
eration prole”
).
The voltage and current harmonics are also displayed, up to the 31st order harmonic, for each
of the lines, L1, L2 and L3 (“
4.6.- HARMONICS.”)
4.6.- HARMONICS
The device can display the voltage and current harmonics, up to the 31st order harmonic, for
each one of the lines, L1, L2 and L3.
The display of these can be deactivated using the programming menu (
“4.9.18. Activating the
harmonics display screen.”
).
Press the
key on the last prole screen to show all operation proles on the harmonics
display screens.
Harmonics are displayed as shown on Figure 32.
Figure 32: CVM-C10 Current harmonics screen.
Press key to open the next harmonics screen.
Press key
to display the different types of harmonics:
43
