3.4.3.- LIST OF TERMINALS, CVM-C10-FLEX MODEL

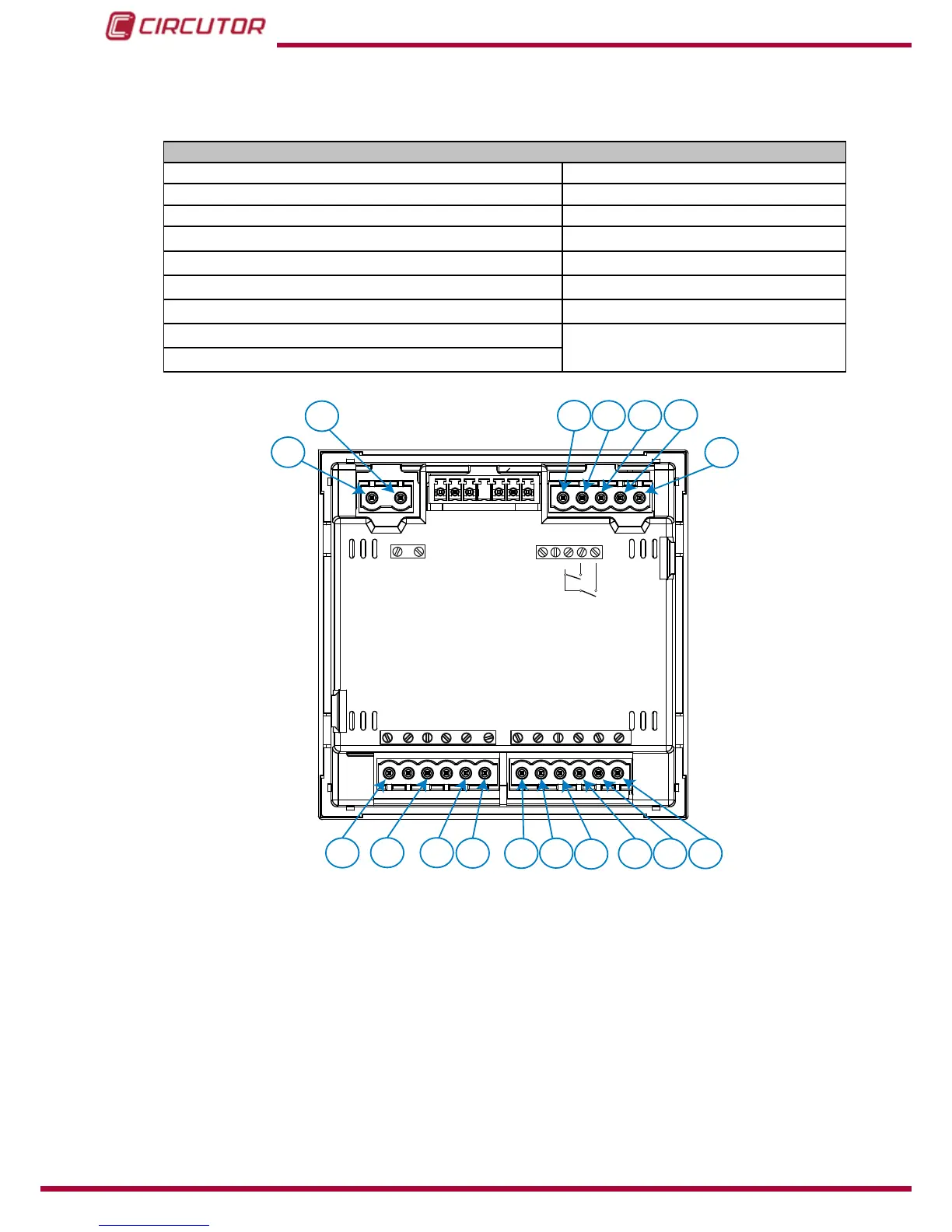

Table 7:List of terminals of the CVM-C10-FLEX.
Device terminals
1 : A1 Auxiliary power supply. 10: V
L3
, Voltage input L3
2: A2 Auxiliary power supply. 11: N, Neutral
3: A(+), RS485 12: L1
,
Current input L1
4: B(-), RS485
13: L2, Current input L2
5: GND, for RS485 and digital inputs.
14: L3, Current input L3
6: I1, digital input 1 / selection rate.
15: LN, Current input LN
7: I2, digital input 2 / selection rate. 16: C, Common for current inputs
8: V
L1,
Voltage input L1
17: SHLD, GND for current inputs
9: V
L2,
Voltage input L2
1
2
3 4
5
6
7
8 9
10 11 12 13 14 15 16 17
POWER SUPPLY
INPUTS
A(+) B(-)
GND
RS485
L1 L2 L3
300V
~
Ph-NPh-Ph
520V
~
NV
L3L2 V L1 V
I1 I2
LN C SHLD
FLEX-MAG (100mV~ )
Figure 3:Terminals of the CVM-C10-FLEX.
