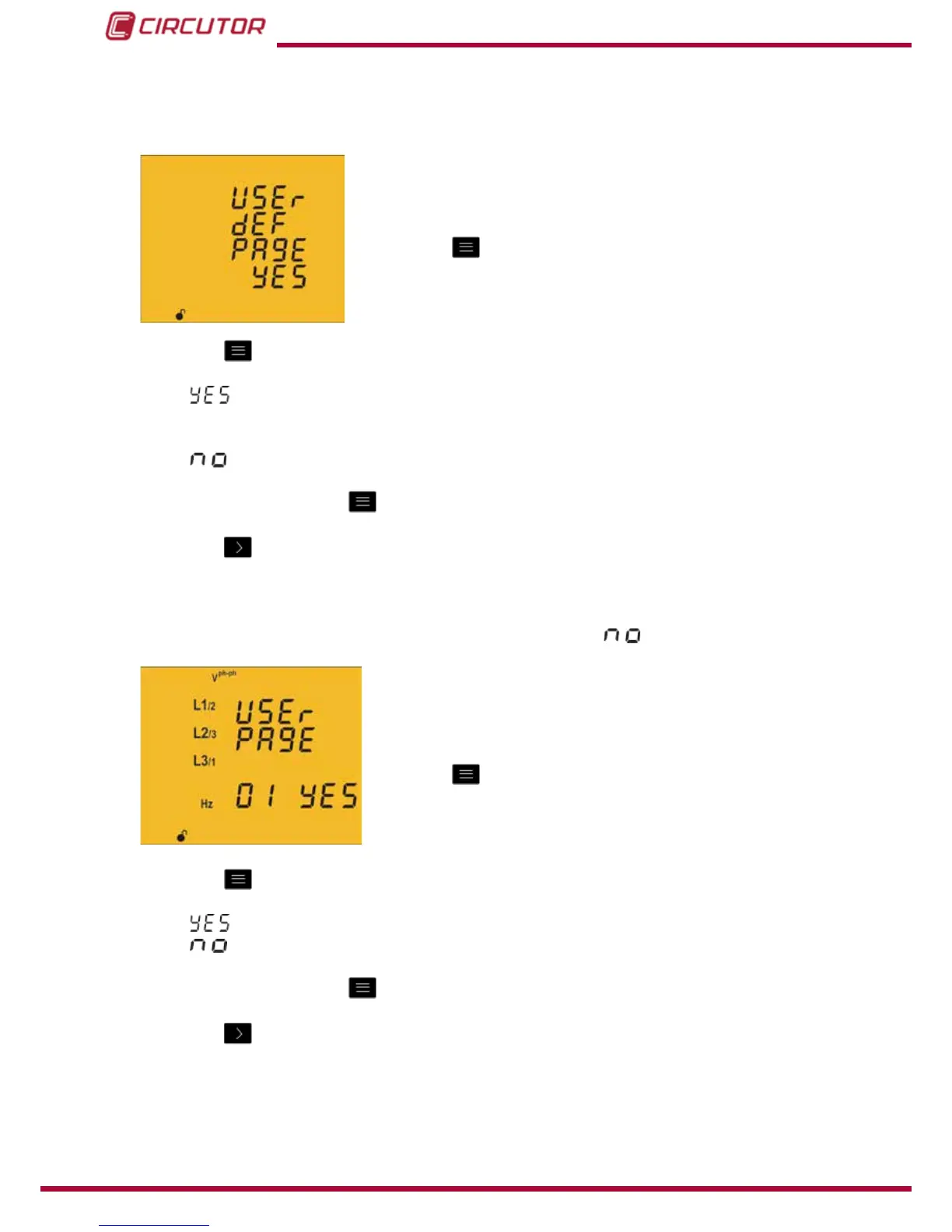

Selecting the screens that will be displayed (User prole)
The following screen is displayed if you have selected the user prole:
This screen is used to select whether the unit's display screens
are dened by the user or not.
Press key
for 3 seconds to edit the selection. The prog icon
will be displayed on the bottom of the screen.
Press key
to browse the two prole options:
the display screens are those that were stored in previous programming
settings of the device. (In the case of new devices, these will be the same as those of
the analyzer prole)
, the display screens are selected.
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
Press key
to access the next programming step
Selecting the screens
The following screen will be displayed if you have selected :
This screen displays the first screen of the analyzer profile,
Phase-phase Voltage and the user prole viewing option can be
selected.
Press key
for 3 seconds to edit the selection. The prog icon
will be displayed on the bottom of the screen.
Press key
to browse the two options:
, to display the screen in the user menu.
, to stop displaying the screen.
To validate the data, press
for 3 seconds and the prog icon will disappear from the display.
Press key
to access the next programming step
This programming step is repeated for each one of the 18 screens of the device.
52
