■ Component Resistance: (This value is only used when there are components in the test.) This value is auto-set
during the Learn process, and should be 5-25% less than the lowest component found in the device being tested.
● Range: 0.1 ohm – 5.0 M ohm

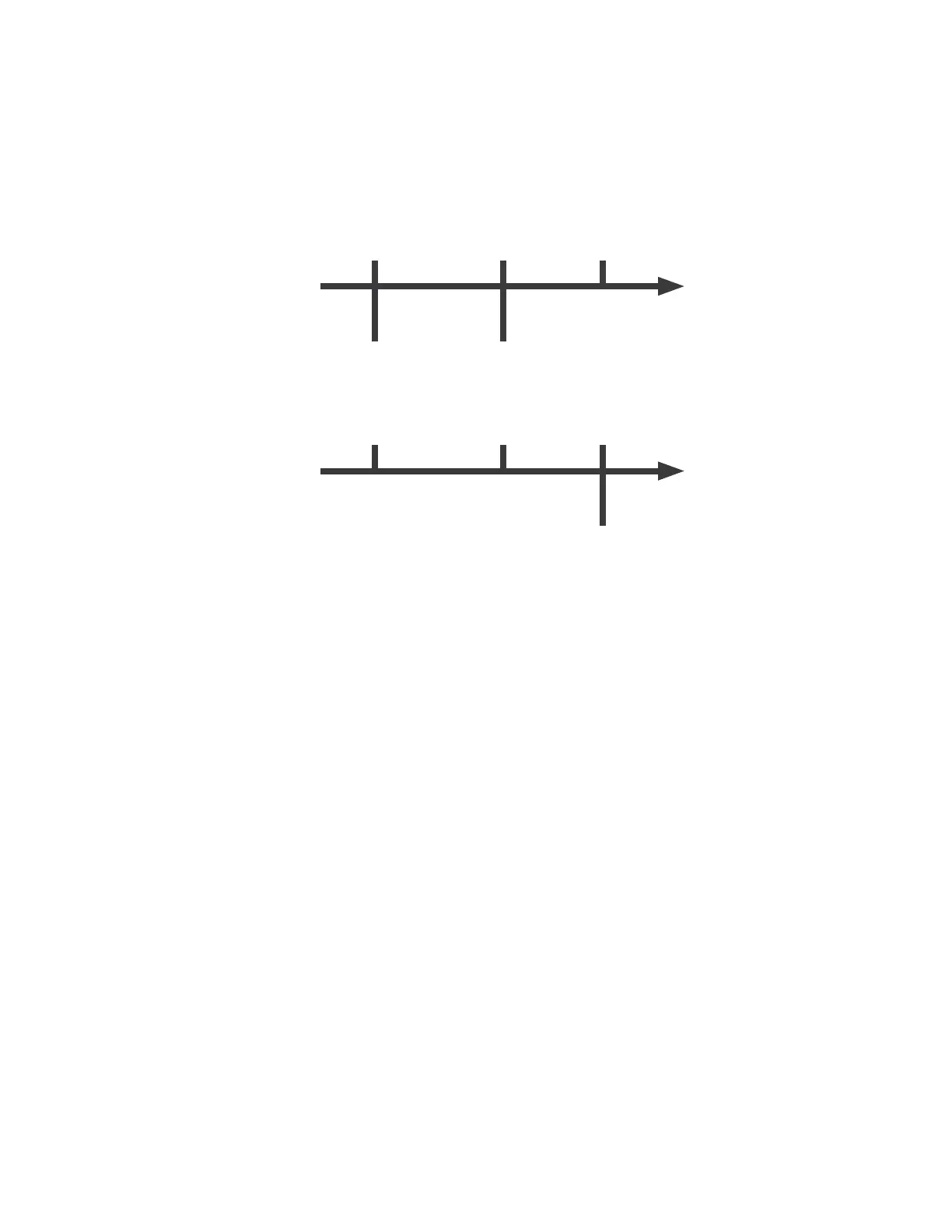

● The following graphic shows how component LV settings dene errors for intended connections if there are com-
ponents in the test. This value has no impact on whether an intended connection passes or fails, but does inuence
whether a failing connection is labeled as High Resistance or Open.
Connection
Resistance
Component
Resistance
0.0 Ω
∞Ω
Opens
Good
LV Insulation
Resistance
High Resistance
● As shown in the graphic below, the Component Resistance value has no impact on the shorts test.
Connection
Resistance
Component
Resistance
0.0 Ω
∞Ω
Ignored
Shorts
LV Insulation
Resistance
