Cirrus DESIGN SR22T - Original Issue

Cirrus Design Section 1
SR22T General
P/N 13772-003 1-5
Location Length Width Height Volume
Cabin
122” 49.3” 49.7 137 cu ft
Baggage
Compartment
36” 39.8” 38.5” 32 cu ft

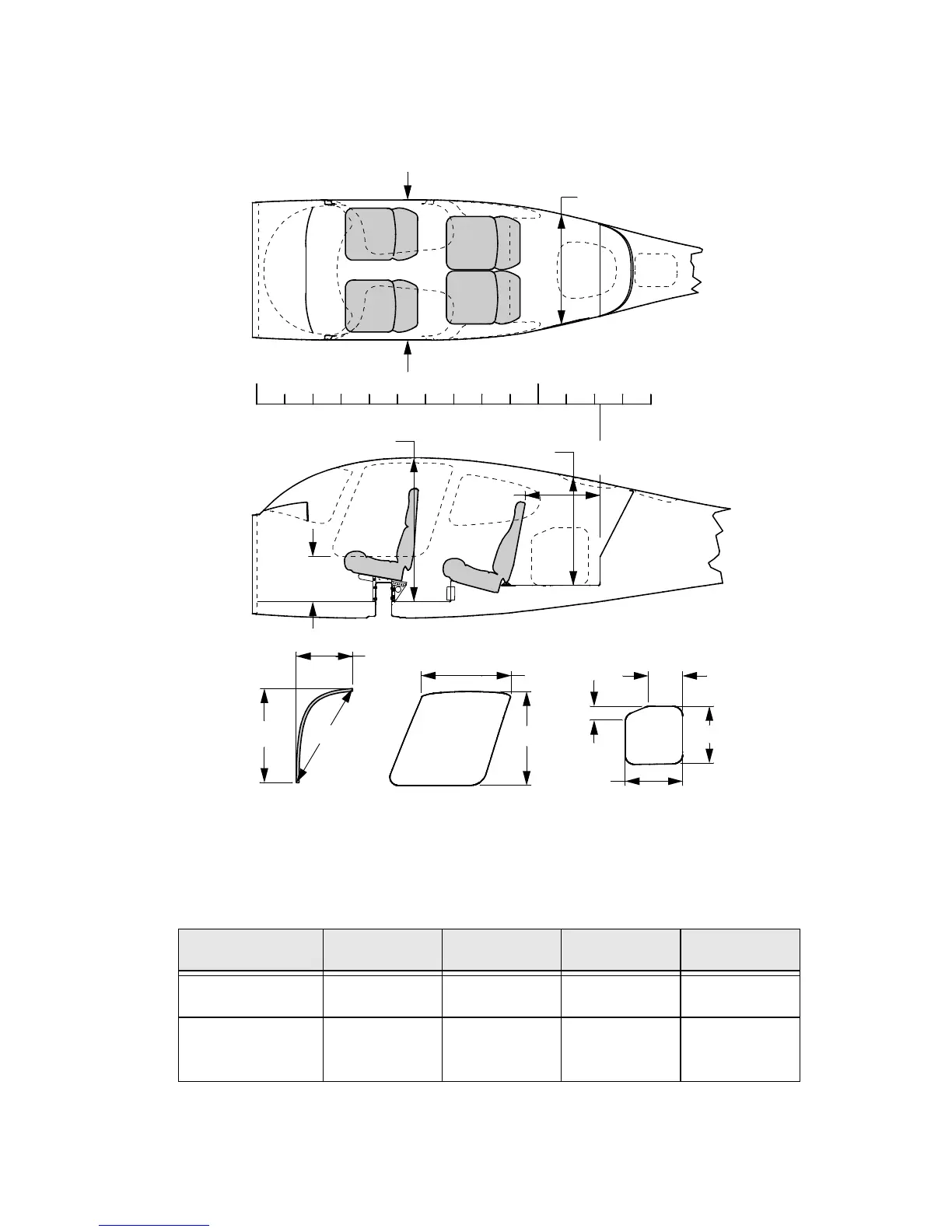

Figure 1-2
Airplane Interior Dimensions
39.8"
49.3"
240220
200
180160140120
16.0"
49.7"
25.0"
38.5"
FS
10.5"
33.4"
39.0"
20.0"
33.3"
32.0"
SR22_FM06_1019
100
222
CABIN DOOR
OPENING
BAGGAGE DOOR
OPENING
20.0"
21.0"
5.0"
Station
Fuselage
Original Issue
