Cirrus DESIGN SR22T User Manual

Cirrus Design Section 7
SR22T Airplane and Systems Description
P/N 13772-003 7-15

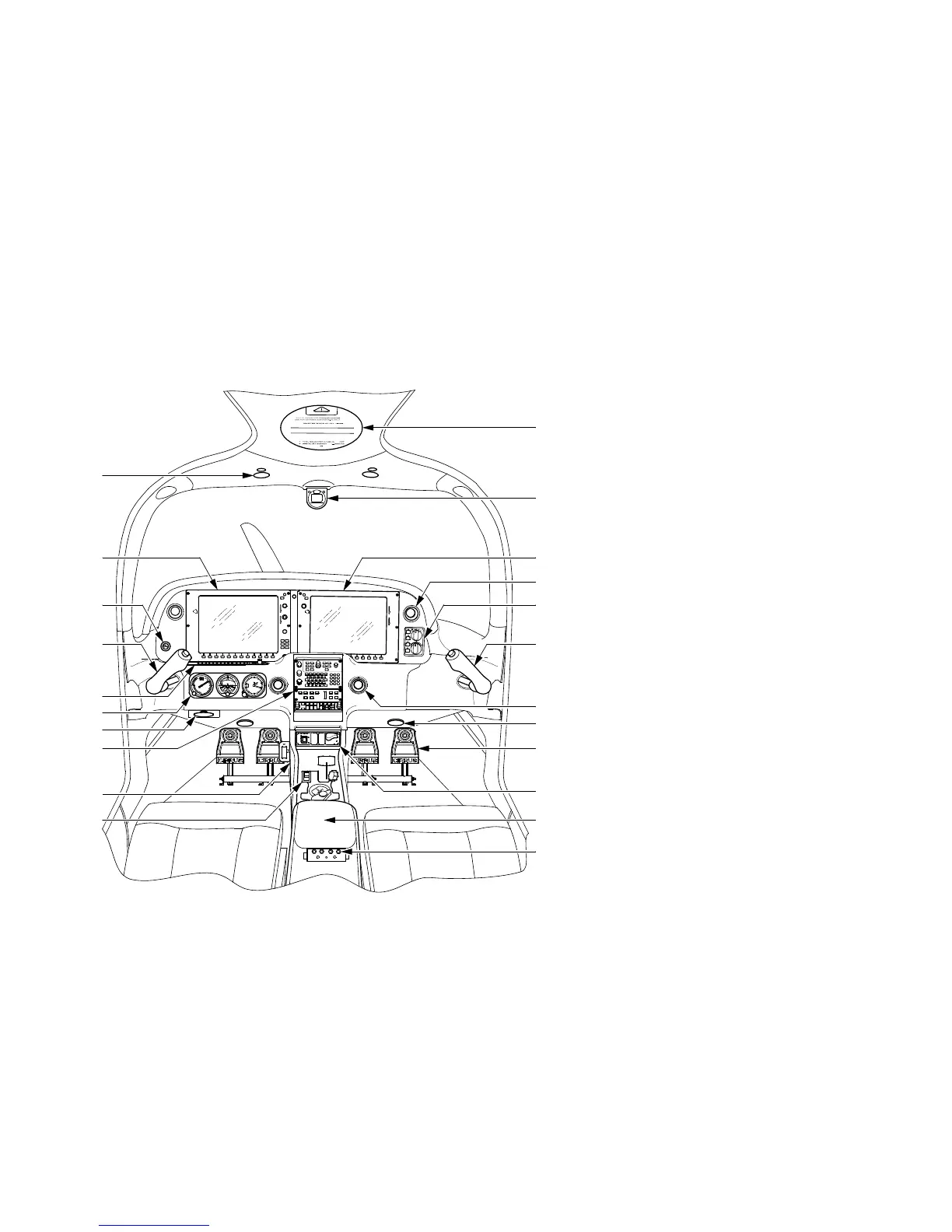

Figure 7-4
Instrument Panel and Console
15
18
20
2
1
3
4
5
9
11
10
12
14
17
16
13
6
4
7
8
6
19
12. Engine & Fuel System Controls
13. Left Side Console
· Circuit Breaker Panel
· ELT Remote Switch
· Alternate Static Source
14. Avionics Panel
15. Parking Brake
16. Flight Instrument Panel
17. Bolster Switch Panel
18. Start/Ignition Key Switch
19. Primary Flight Display
20. Overhead Light & Switch
Legend
1. Cirrus Airframe Parachute System
(CAPS) Activation T-Handle Cover
2. Magnetic Compass
3. Multifunction Display
4. Fresh Air “Eyeball” Outlet
5. Temperature/Ventilation Controls
6. Control Yoke
7. Conditioned Air Outlet
8. Rudder Pedals
9. Flap Control & Position Indicators
10. Armrest
11. Passenger Audio Jacks
SR22_FM07_3258
Original Issue

Cirrus DESIGN SR22T Specifications

General

Manufacturer	Cirrus Aircraft
Model	SR22T
Seating Capacity	5
Engine	Continental TSIO-550-K
Horsepower	315 hp
Avionics	Cirrus Perspective+ by Garmin
Type	Single-engine piston aircraft
Maximum Speed	213 knots
Cruise Speed	183 knots
Service Ceiling	25, 000 feet
Maximum Takeoff Weight	3, 600 lbs
Wingspan	38 feet 4 inches
Length	26 ft
Height	8 feet 11 inches
Safety Features	Cirrus Airframe Parachute System (CAPS)
Cabin Width	49 inches
Cabin Height	50 inches
