Cirrus DESIGN SR22T - Loading Data

6-10 P/N 13772-003
Section 6 Cirrus Design
Weight and Balance Data SR22T
Loading Data

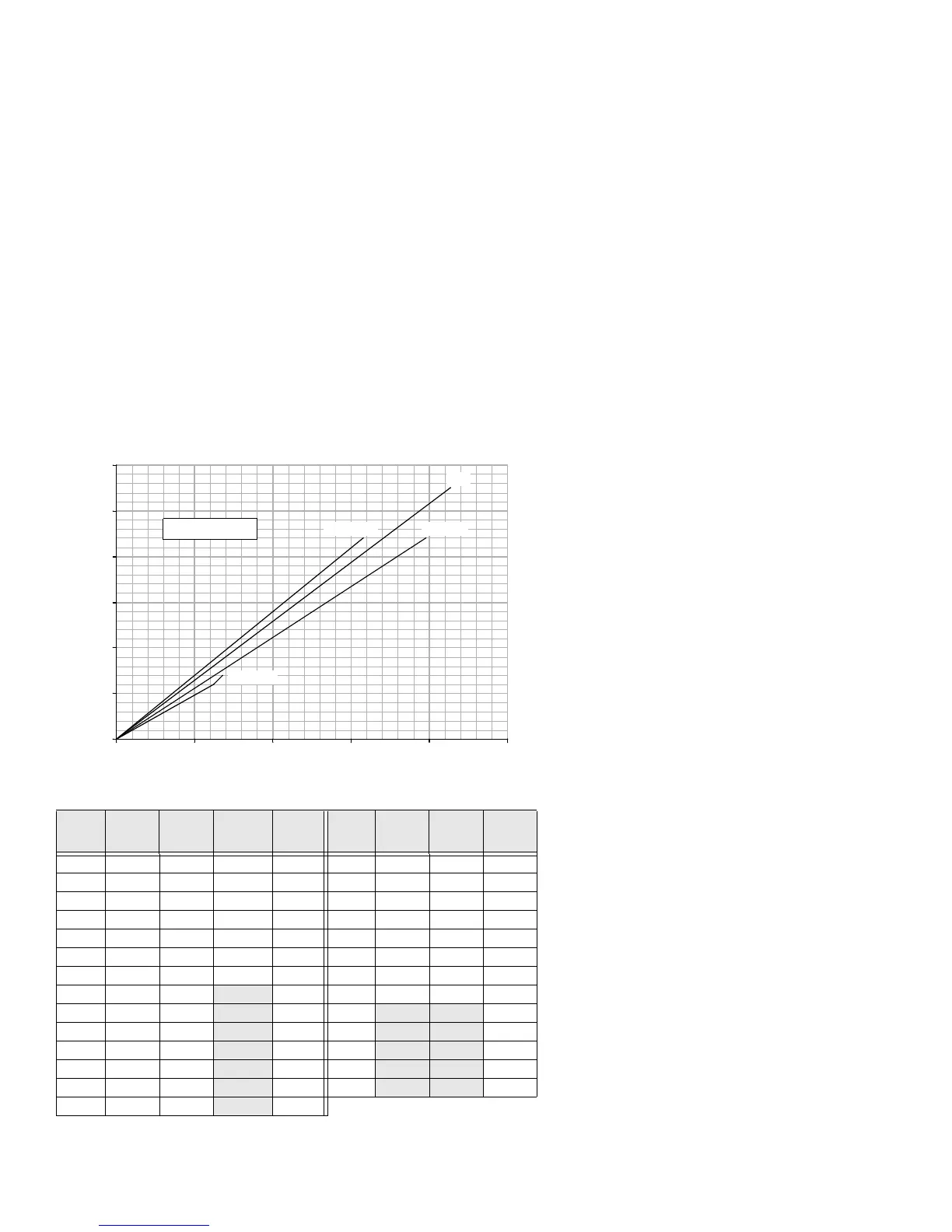

Use the following chart or table to determine the moment/1000 for fuel
and payload items to complete the Loading Form.
Weight
LB
Fwd
Pass
FS 143.5
Aft
Pass
FS 180.0
Baggage
FS 208.0
Fuel
FS 154.9
Weight
LB
Fwd
Pass
FS 143.5
Aft
Pass
FS 180.0
Fuel
FS 154.9
20 2.9 3.6 4.2 3.1 300 43.1 54.0 46.5
40 5.7 7.2 8.3 6.2 320 45.9 57.6 49.6
60 8.6 10.8 12.5 9.3 340 48.8 61.2 52.7
80 11.5 14.4 16.6 12.4 360 51.7 64.8 55.8
100 14.4 18.0 20.8 15.5 380 54.5 68.4 58.9
120 17.2 21.6 25.0 18.6 400 57.4 72.0 62.0
140 20.1 25.2 27.04* 21.7 420 60.3 75.6 65.1
160 23.0 28.8
24.8 440 63.1 79.2 68.2
180 25.8 32.4
27.9 460 71.3
200 28.7 36.0
31.0 480 74.4
220 31.6 39.6
34.1 500 77.5
240 34.4 43.2
37.2 520 80.5
260 37.3 46.8
40.3 552** 85.5
280 40.2 50.4
43.4
*130 lb Maximum **92 U.S. Gallons Usable
Figure 6-4
SR22_FM06_2686
Fwd Pass
Fuel
Aft Pass
Baggage
0
100
200
300
400
500
600
0.0 20.0 40.0 60.0 80.0 100.0
Moment/1000
Weight - Pounds
Loading Chart
Original Issue
