Cirrus DESIGN SR22T User Manual

Cirrus Design Section 7
SR22T Airplane and Systems Description
P/N 13772-003 7-17

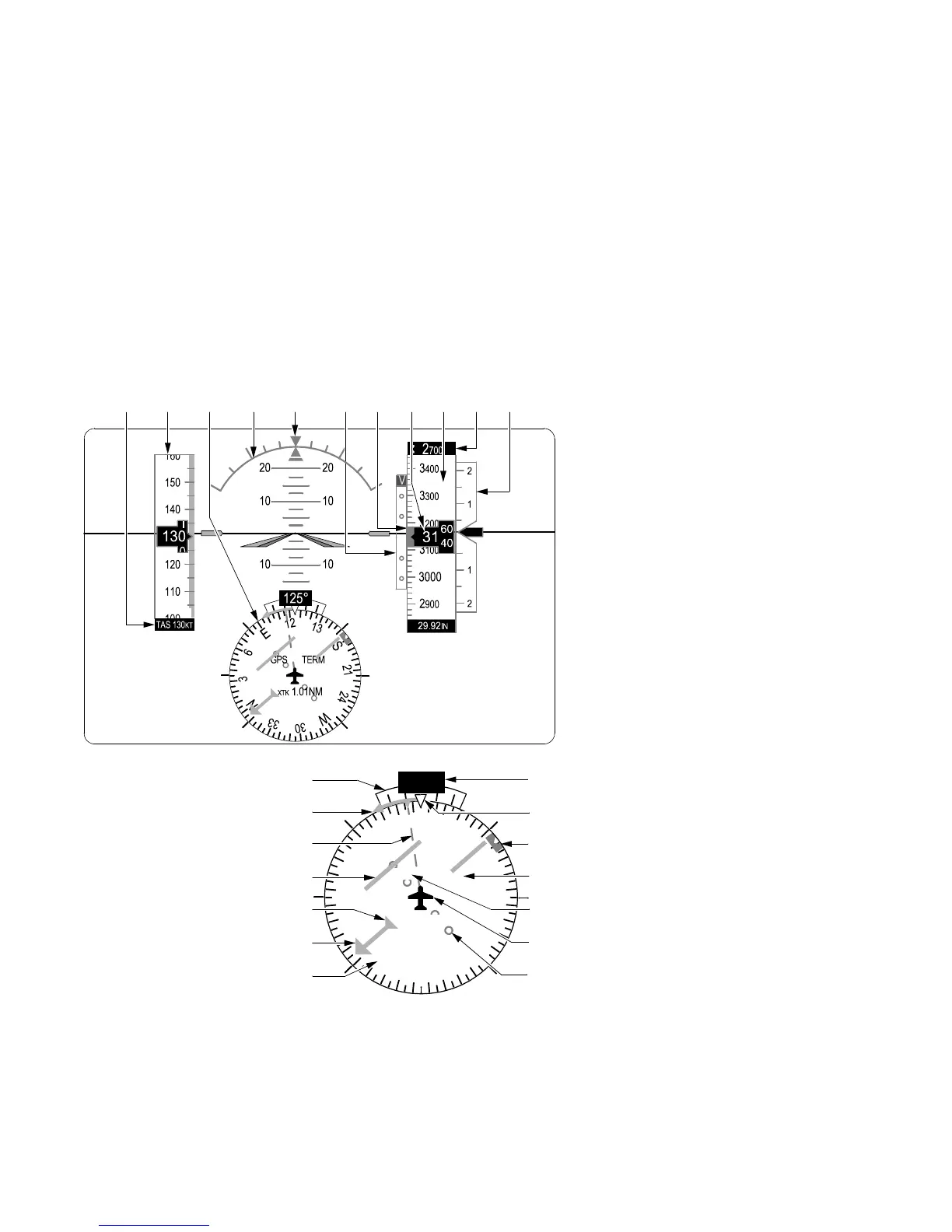

Figure 7-5
Flight Instruments
LEGEND
1. True Airspeed
2. Airspeed Indicator
3. Horizontal Situation Indicator (HSI)
4. Attitude Indicator
5. Slip/Skid Indicator
6. Vertical Deviation Indicator (VDI)
7. Selected Altitude Bug
8. Current Altitude
9. Altimeter
10. Selected Altitude
11. Vertical Speed Indicator (VSI)
12. Current Heading
13. Lubber Line
14. Selected Heading Bug
15. Flight Phase
16. Navigation Source
17. Aircraft Symbol
18. Course Deviation Scale
19. Rotating Compass Rose
20. Course Pointer
N
W
S
E
6
3
3
3
3
0
2
4
2
1
1
3
1
2
125°
XTK 1.01NM
21. To/From Indicator
22. Course Deviation Indicator
23. Current Track Indicator
24. Turn Rate/Heading Trend Vector
25. Turn Rate Indicator
SR22_FM07_2790
12345 6789 10 11
12
13
14
15
16
17
1819
20
21
22
23
24
25
TERM GPS
HSI DETAIL
Original Issue

Cirrus DESIGN SR22T Specifications

General

Manufacturer	Cirrus Aircraft
Model	SR22T
Seating Capacity	5
Engine	Continental TSIO-550-K
Horsepower	315 hp
Avionics	Cirrus Perspective+ by Garmin
Type	Single-engine piston aircraft
Maximum Speed	213 knots
Cruise Speed	183 knots
Service Ceiling	25, 000 feet
Maximum Takeoff Weight	3, 600 lbs
Wingspan	38 feet 4 inches
Length	26 ft
Height	8 feet 11 inches
Safety Features	Cirrus Airframe Parachute System (CAPS)
Cabin Width	49 inches
Cabin Height	50 inches
