Cirrus Design Section 7
SR22T Airplane and Systems Description
P/N 13772-003 7-43

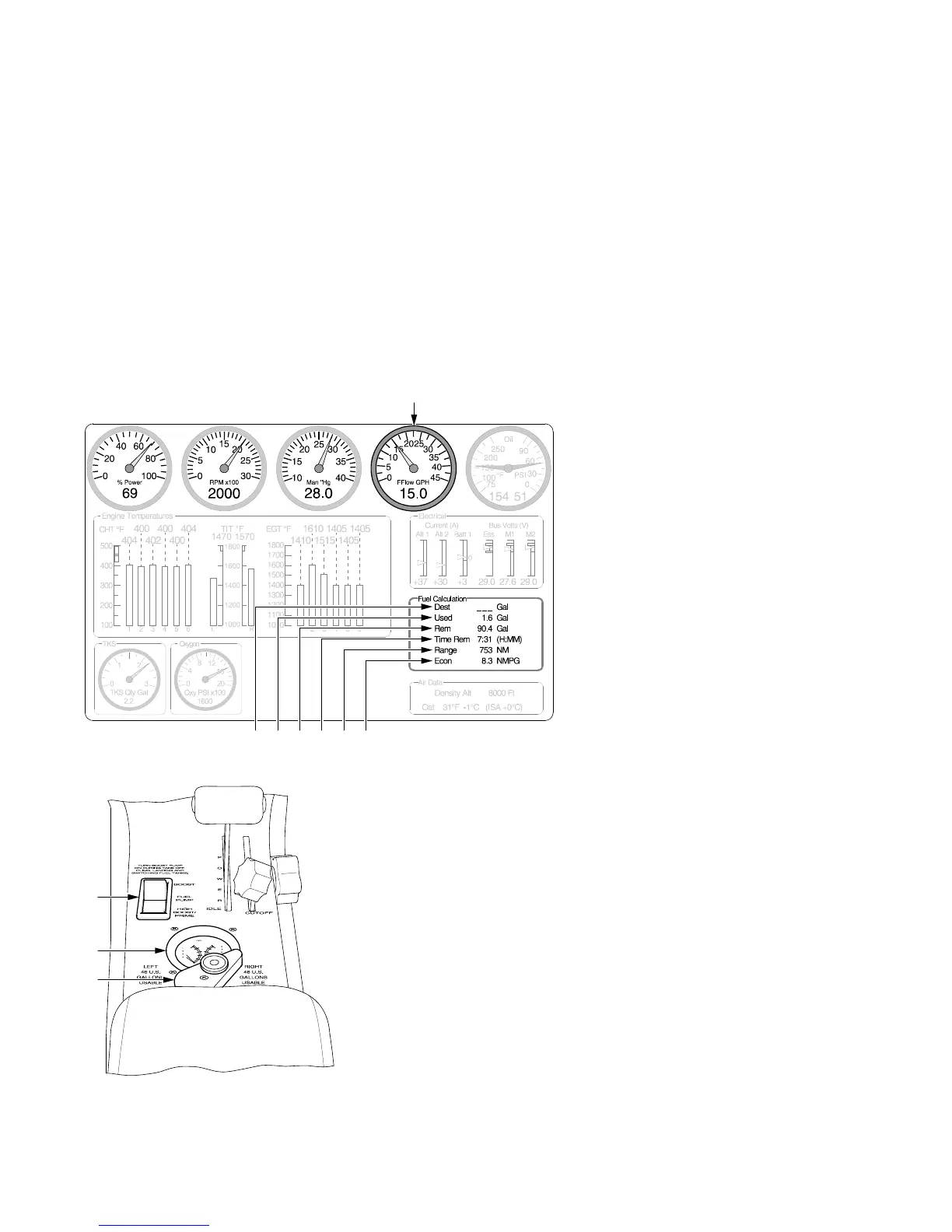

Figure 7-9
Fuel System Controls and Indicating
8
1
2 4567
9
Fuel System Indication
3
LEGEND
1. Fuel Flow
2. Fuel At Destination (Totalizer)
3. Fuel Used (Totalizer)
4. Fuel Remaining (Totalizer)
5. Time Remaining (Totalizer)
6. Fuel Range (Totalizer)
7. Nautical Miles Per Gallon (Totalizer)
8. Fuel Pump Switch
9. Fuel Quantity Gage (Float Sensor)
10. Fuel Selector Valve
10
Engine Controls
SR22_FM07_3255
Original Issue
