Cirrus DESIGN SR22T User Manual

Cirrus Design Section 7
SR22T Airplane and Systems Description
P/N 13772-003 7-55

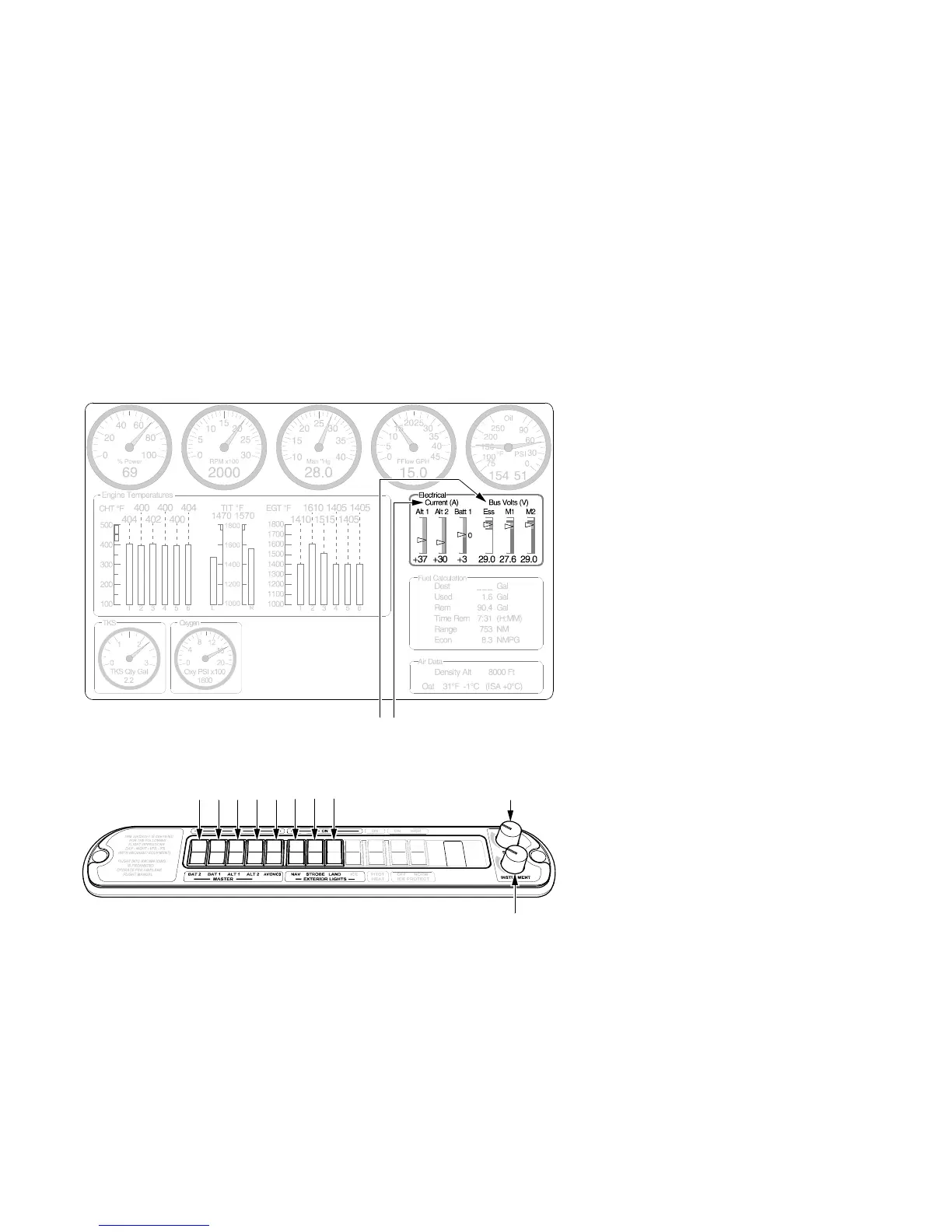

Figure 7-12
Electrical / Lighting Controls and Indicating
LEGEND
1. Essential & Main Bus Voltage
2. Alternator & Battery Current
3. Battery 2
4. Battery 1
5. Alternator 1
6. Alternator 2
1
34 76
Electrical System Indication
2
7. Avionics
8. Navigation
9. Strobe
10. Landing Light
11. Instrument Dimmer
12. Panel Dimmer
SR22_FM07_3257
Electrical and Lighting Controls
589 10
11
12
Original Issue

Cirrus DESIGN SR22T Specifications

General

Manufacturer	Cirrus Aircraft
Model	SR22T
Seating Capacity	5
Engine	Continental TSIO-550-K
Horsepower	315 hp
Avionics	Cirrus Perspective+ by Garmin
Type	Single-engine piston aircraft
Maximum Speed	213 knots
Cruise Speed	183 knots
Service Ceiling	25, 000 feet
Maximum Takeoff Weight	3, 600 lbs
Wingspan	38 feet 4 inches
Length	26 ft
Height	8 feet 11 inches
Safety Features	Cirrus Airframe Parachute System (CAPS)
Cabin Width	49 inches
Cabin Height	50 inches
