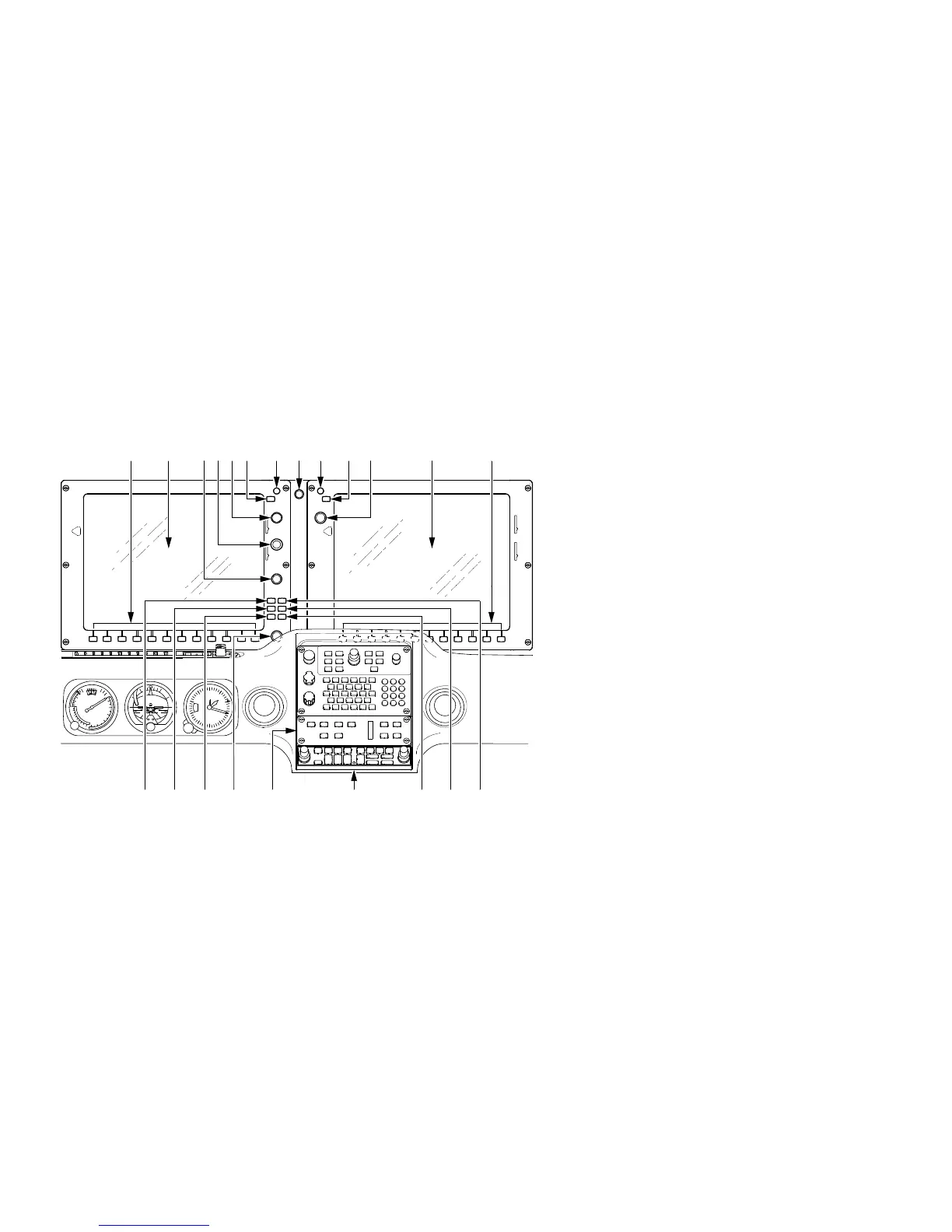

Figure 7-18
Perspective Integrated Avionics System (Sheet 1 of 2)
1 11
Legend
1. Soft Keys
2. PFD
3. PFD Range/Pan Joystick
4. Barometric Pressure
5. COM Transceiver Selection & Tune
6. COM Frequency Transfer
(& 121.5 Emer Tune)
7. COM Volume and Squelch
8. Display Backup Selection
9. NAV and ID Audio Volume
10. NAV Frequency Transfer
2
13 14 15
3456 7 8 9 10 12
19 20 21
1
17 1816
SR22_FM07_2808A
11. NAV Transceiver Selection & Tune
12. MFD
13. PFD Direct-to-Course
14. PFD Flight Plan Page
15. PFD Clear/Cancel Information
16. PFD Flight Management System
17. GFC 705 Mode Controller (opt)
18. Audio Panel
19. PFD Enter Key
20. PFD Procedures
21. PFD Menu Key
