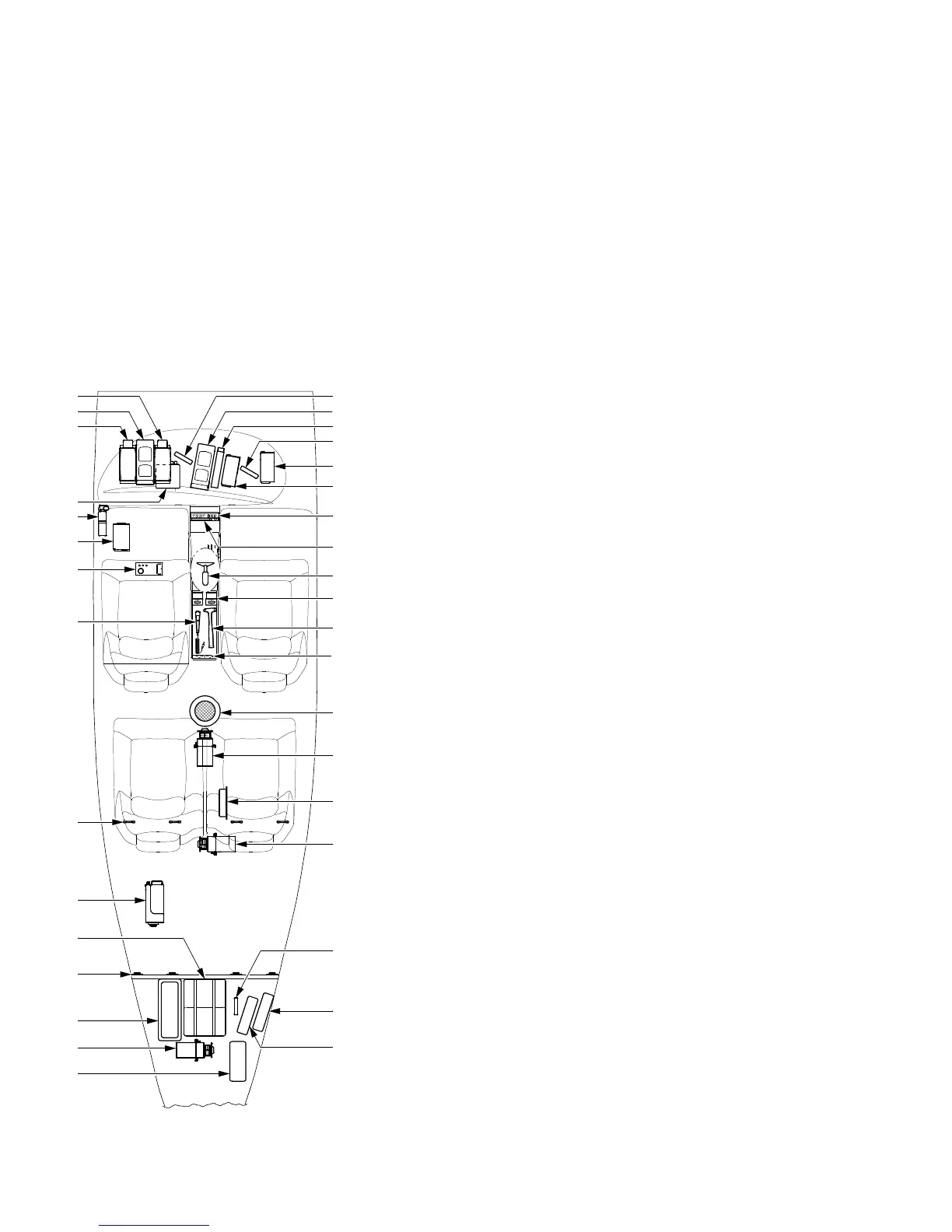

Figure 7-19
Equipment Locations
LEGEND
1. AHRS 1
2. Integrated
Avionics Unit 1
3. AHRS 2
4. Avionics Cooling Fan
5. Integrated
Avionics Unit 2
6. Engine Airframe Unit
7. Air Data Computer 2 (opt)
8. Air Data Computer 1
9. GFC 705 Mode
Controller (opt)
10. ADF (Opt)
11. CAPS Activation Handle
(Cabin Ceiling)
12. Hour Meters
13. Egress Hammer
14. Telephone and
Audio Jacks
15. Cabin Speaker
16. Roll Servo (opt)
17. Pitch Trim Adapter (opt)
18. Pitch Servo (opt)
19. XM Radio
Transceiver (Opt)
20. Transponder
21. Satellite Data Link
Receiver (Opt)
22. ELT
23. Yaw Servo (opt)
24. Battery 2
25. Tiedown Loops
26. CAPS Parachute
27. WX Information
Receiver (Opt)
28. Microphone
29. TAS Receiver (Opt)
30. DME (Opt)
31. Fire Extinguisher
23
16
18
17
6
5
4
30
SR22_FM07_2786C
9
4
14
8
11
12
13
15
19
20
21
31
27
26
24
22
3
2
1
4
25
29
28
25
10
7
Revision 1

Cirrus DESIGN SR22T Specifications

General

Manufacturer	Cirrus Aircraft
Model	SR22T
Seating Capacity	5
Engine	Continental TSIO-550-K
Horsepower	315 hp
Avionics	Cirrus Perspective+ by Garmin
Type	Single-engine piston aircraft
Maximum Speed	213 knots
Cruise Speed	183 knots
Service Ceiling	25, 000 feet
Maximum Takeoff Weight	3, 600 lbs
Wingspan	38 feet 4 inches
Length	26 ft
Height	8 feet 11 inches
Safety Features	Cirrus Airframe Parachute System (CAPS)
Cabin Width	49 inches
Cabin Height	50 inches
