Cirrus DESIGN SR22T User Manual

P/N 13772-109 5 of 6
Cirrus Design Section 9
SR22 / SR22T Supplements
Note Prior to installing bottle the
first time, the horizontal straps will
be disassembled in order to pass
the loose ends through the loops
on the Tuff Pack Bag. Be sure to
note the strap routing through the
buckle and cinch during
disassembly to aid in reassembly.
Route loose end of strap around
the seat back, through rectangular
loops on forward side of bottle, as
shown in Detail B, through the male
buckle half, and through the cinch,
as shown in Detail C. Insert male
buckle half into female buckle half
and tighten strap at cinch.
LOOP
FEMALE
BUCKLE
CINCH
MALE
BUCKLE
SR20_FM09_1081
OXYGEN BOTTLE
TUFF PACK BAG
Same as step 2.
LOOP
CLIP
Clip strap to triangular loop as shown in
Detail A. Route strap over headrest, down
the back of the seat, and forward between
the cushion and seat back. Clip strap to
lower triangular loop. Tighten strap with
cinch.
INITIAL INSTALLATION
STRAP
LOOP

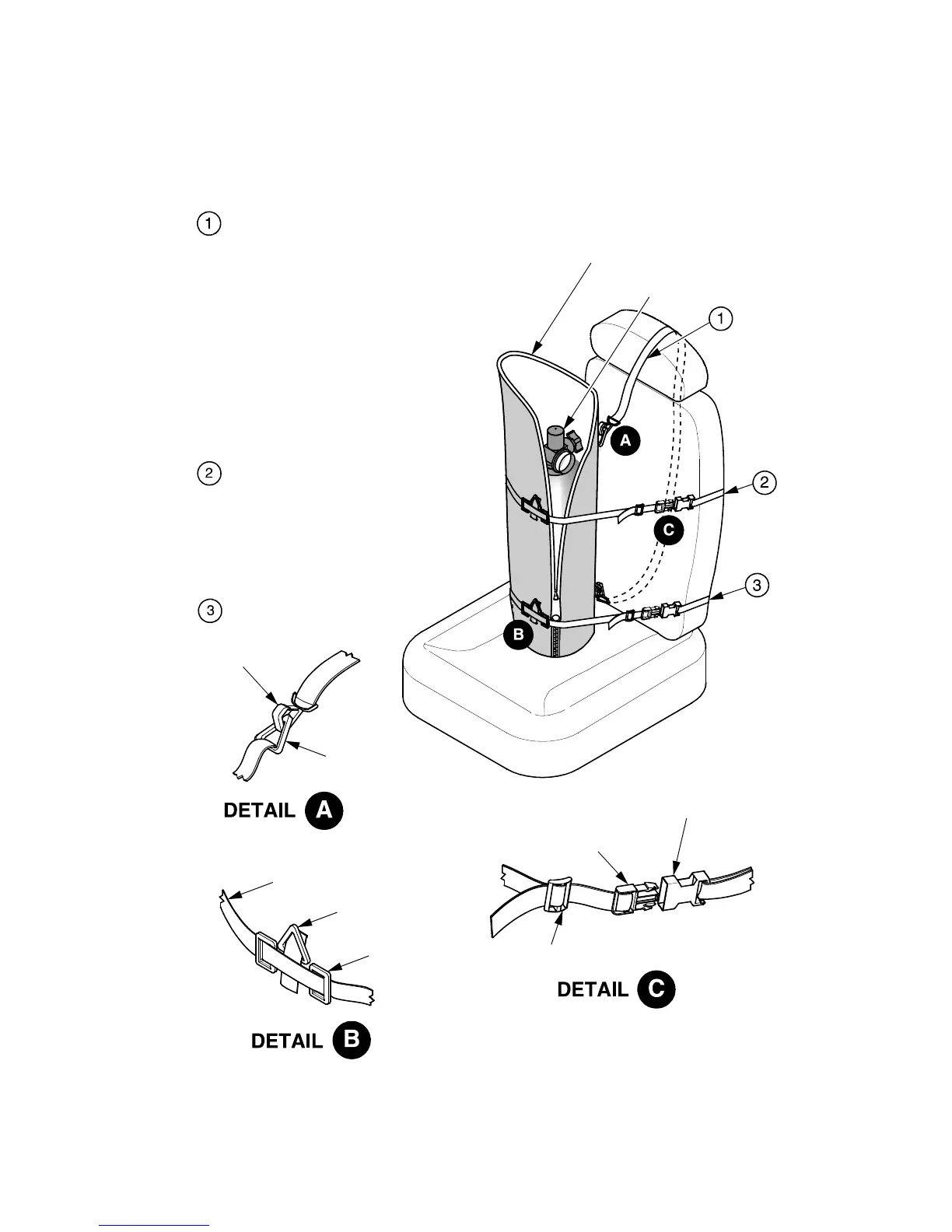

Figure - 1
Oxygen Bottle Mounting
Revision 02: 01-06-10
