Cirrus DESIGN SR22T - Page 470

20 of 24 P/N 13772-140
Section 9 Cirrus Design
Supplements SR22 / SR22T
Figure - 2
4
11
Flight Director System
Remote Switches (optional)
3
Flight Management System Keyboard
System 55X Autopilot
RANGE
PUSH
- +
PAN
HDG
CRS
ALT SEL
GARMIN
AB CD E F
GH I J K
L M NO P Q
R
W
S
X
T
Y
U
Z
V
SPC BKSP
123
456
789
0
+/-
EMERG
CRSR/1-2
PUSH
FMS/XPDR
COM/NAV
IDENT
DFLT MAP
PUSH SYNC
PUSH CTR
PUSH SYNC
D
FPL
CLR
MENU
PROC
ENT
FMS
XPDR
COM NAV
1
2
SR22_FM09_3016
12
8965 10 7

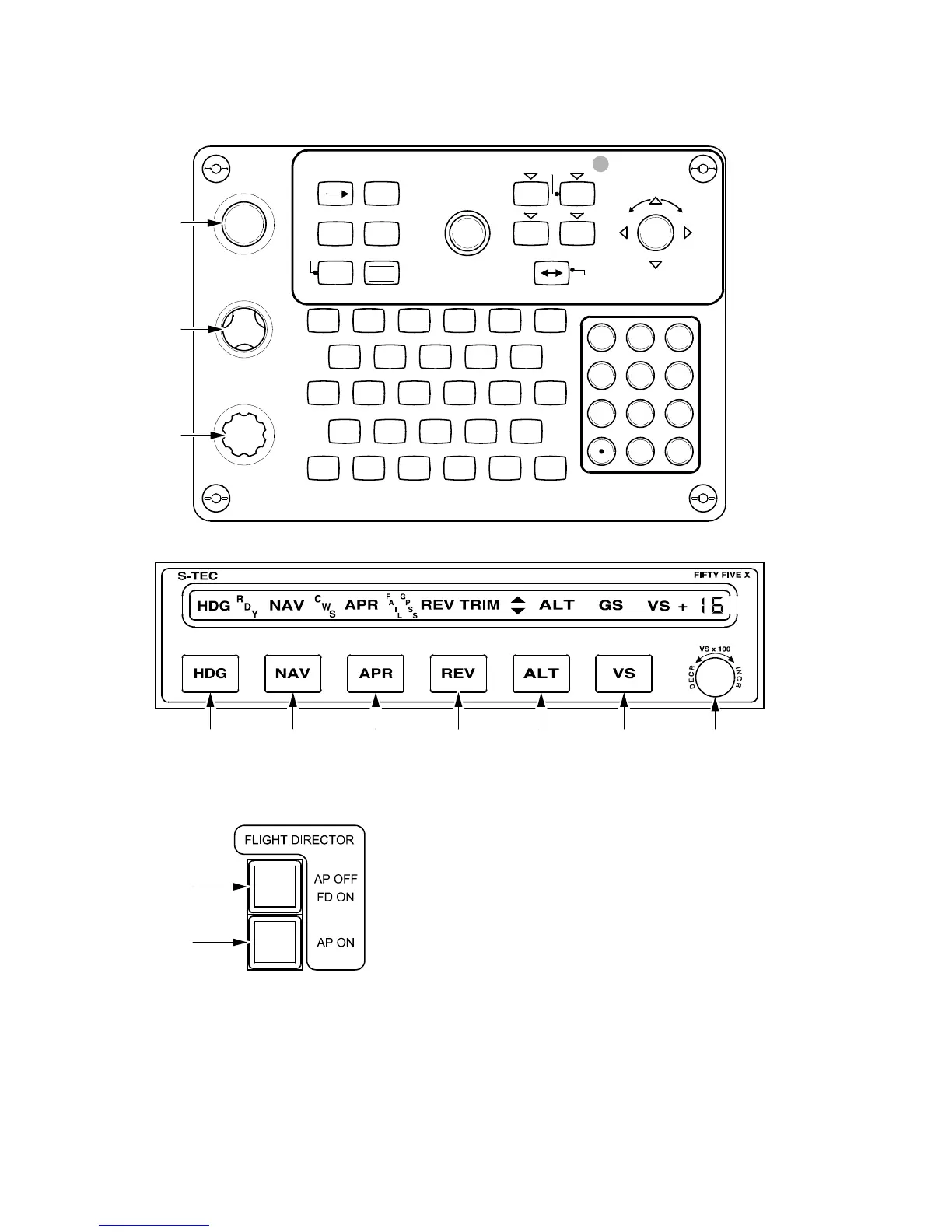

Legend
1. Heading Selection
2. Course Selection
3. Altitude Selection
4. Heading Select Mode
5. Navigation Mode
6. Approach Mode
7. Reverse Course Mode
8. Altitude Hold
9. Vertical Speed Mode
10. VS Modifier Knob
11. Flight Director Mode
12. Autopilot Mode
System Fifty Five X Autopilot w/ Optional Flight Director
Revision 01: 01-06-10
