4-27
Catalyst 4500 Series Switches Installation Guide
78-14409-08
Chapter 4 Removing and Replacing FRUs
Replacing Backplane Modules on a Catalyst 4507R or 4510R Switch
Step 4 If you are removing a clock module, remove the two screws that attach the module
to the backplane.
Step 5 Find the seating levers on both sides of the connector for the module you wish to
replace. (See
Figure 4-22.)

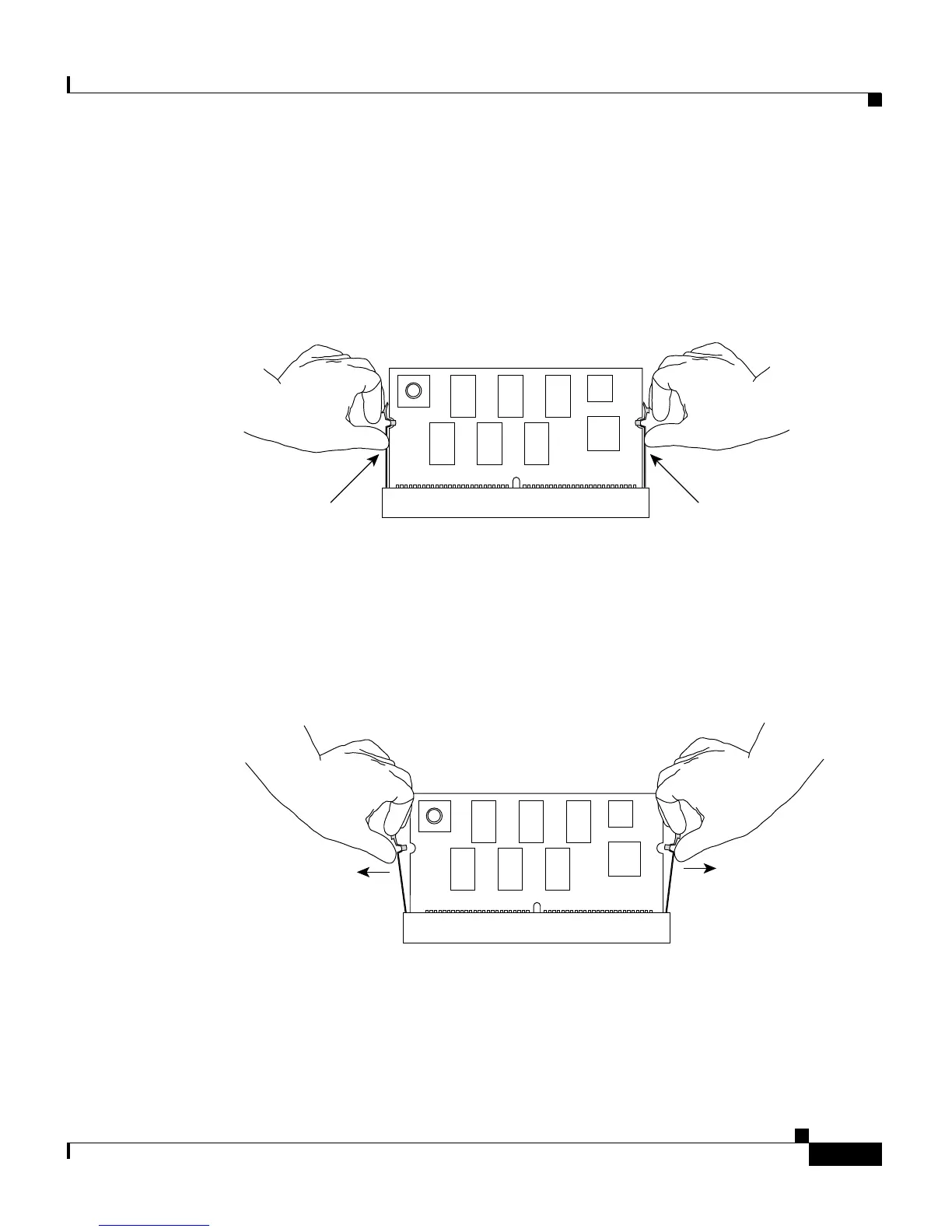

Figure 4-22 Finding the Seating Levers
Step 6 To release the module from its connector, pull the levers outward with your
fingernails. The module will pop out slightly. (See
Figure 4-23.)
Figure 4-23 Releasing the Module
130658
130659
