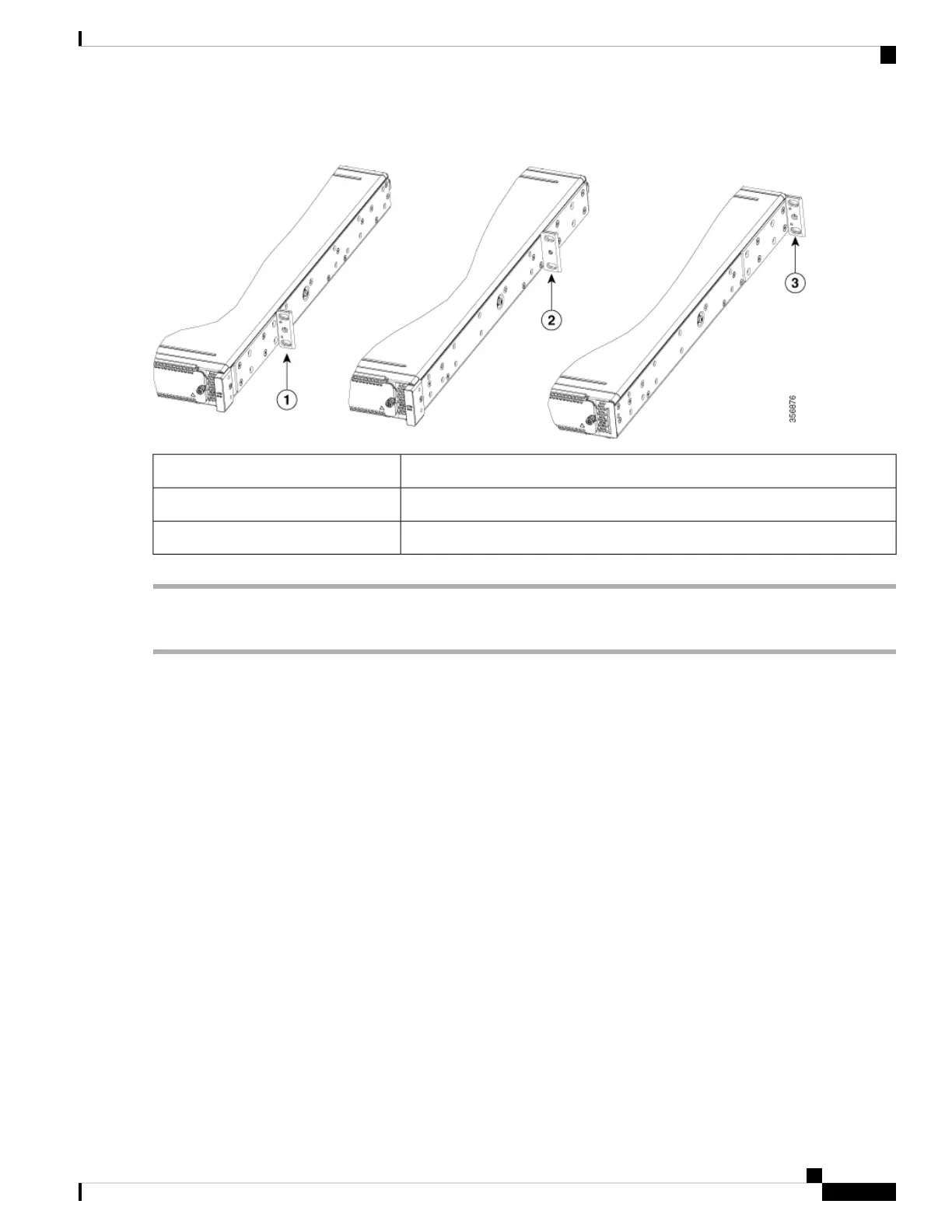

Figure 15: Install Brackets for PS Mounting (C8300-1N1S-4T2X|6T)
Mid-Mount from I/O Side1
Mid-Mount from Power Supply Side2
Power Supply Side Flush3
To attach the rack-mounting brackets to a C8300-2N2S-4T2X|6T device, perform these steps:
Step 1 Select the depth location for the router in the equipment rack. I/O side flush; I/O side recessed for the RFID badge; middle
mount from the I/O side; middle mount from the power supply side; or power supply side flush.
Step 2 Align the rack mount bracket with the mounting holes in the side of the device.
Step 3 Insert the #8-32 FHM screws. Use only the screws that are provided in the rack mount bracket kit.
Step 4 Tighten the screws to a torque value of 15 to 18 inch-lb. (1.7 to 2.0 N-m).
Hardware Installation Guide for Cisco Catalyst 8300 Series Edge Platforms
35
Install and Connect

Cisco Catalyst 8300 Series Specifications

General

Software	Cisco IOS XE
Interface Modules	Modular
WAN Ports	Varies based on module selection
LAN Ports	Varies based on module selection
Redundancy	Yes, with dual power supplies and modular components
Security	Integrated threat defense, encryption, and secure boot
Management	Cisco DNA Center, CLI, SNMP, REST APIs
Form Factor	Rack-mountable
Rack Height	1RU or 2RU
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, Serial
Power Supply	Redundant power supply options available
Key Features	SD-WAN, advanced security
Product Family	Catalyst
Port Density	Varies based on module selection
Dimensions	Varies by model
Weight	Varies by model and module selection
