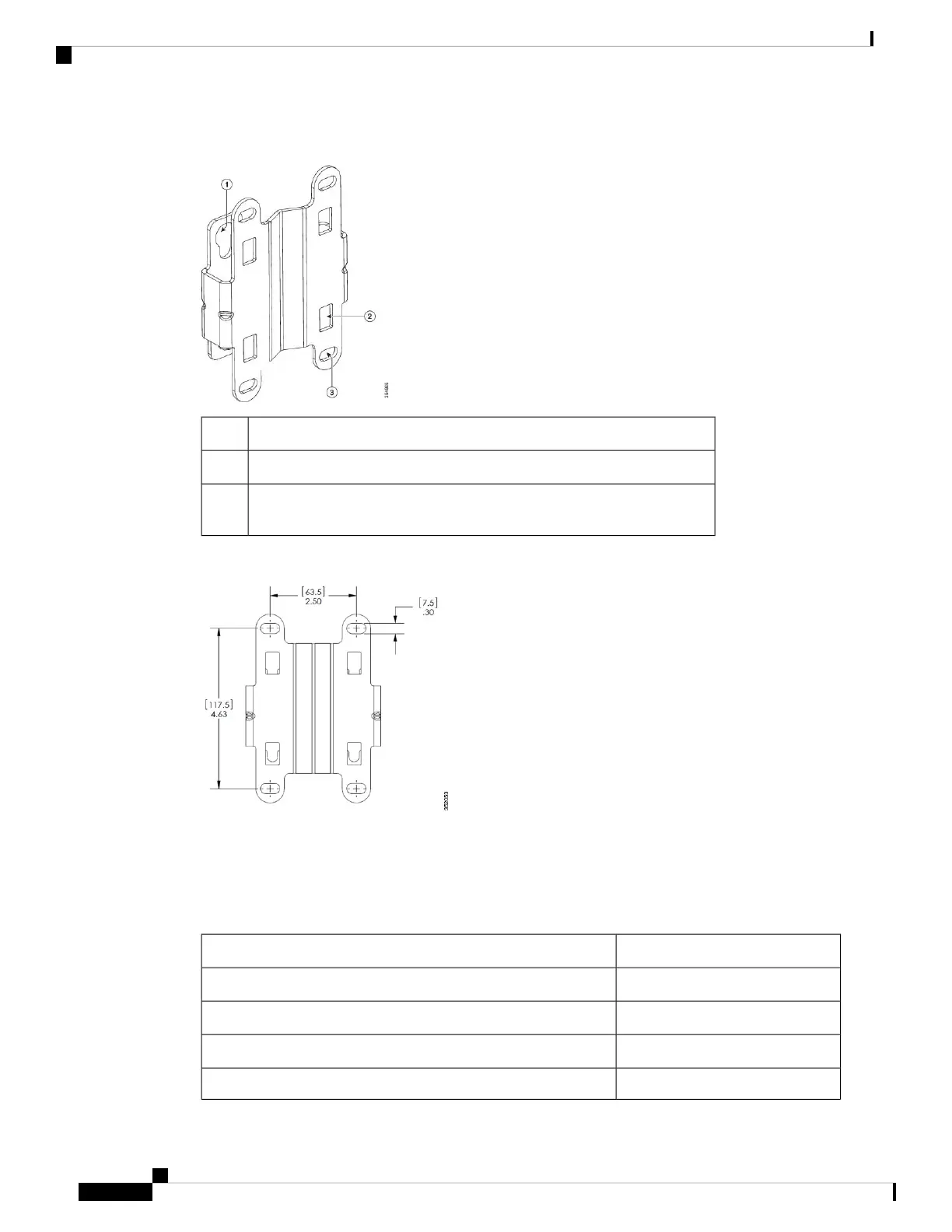

Figure 9: Mounting Bracket for Wall and Pole Mounting
One of four keyhole slots to mount the AP.1
One of four slots for steel band clamps is used for pole mounting only.2
Bracket mount holes are used to fasten the bracket to the wall. You can use
bolts of up to 1/4” or 6 mm in diameter.
3
Figure 10: Mounting Bracket Dimensions
Before you begin
Ensure that you have the following materials before beginning to mount the AP to a wall:
Table 7: Material Required to Mount Access Point to a Wall using AIR-MNT-VERT1= Kit
Supplied in the Kit?Materials Required
YesGround lug and screws (provided with the access point)
Optional, Cisco orderable accessoryWall Mount Bracket
YesFour M6 x 12–mm Hex-head Bolts
NoCrimping tool for ground lug, Panduit CT-720 with CD-720-1 die
Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide
24
Installing the Access Point
Wall Mounting the AP using the Cisco Kit
