Mapping Cisco CSR 1000v Network Interfaces with vSwitch
Interfaces
You can configure the network interfaces in ESXi in different ways to accommodate the Cisco CSR 1000v
interfaces. The figure below shows an example where each Cisco CSR 1000v router interface is mapped to
one host Ethernet interface.

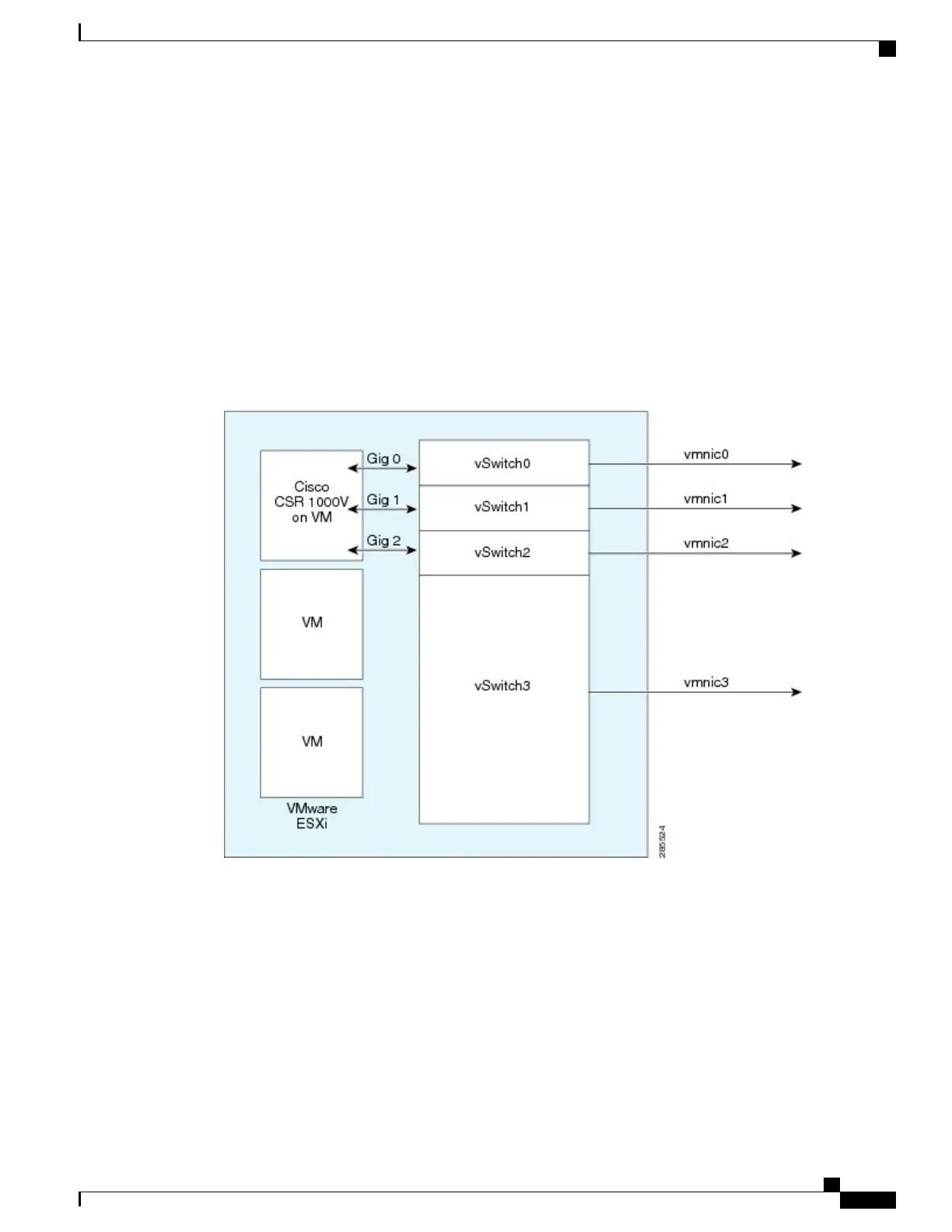

Figure 7: Cisco CSR 1000v Interfaces Mapped to Individual ESXi Host Ethernet Interfaces
Cisco CSR 1000v Series Cloud Services Router Software Configuration Guide
217
Mapping Cisco CSR 1000v Network Interfaces to VM Network Interfaces
Mapping Cisco CSR 1000v Network Interfaces with vSwitch Interfaces
