The figure below shows an example with multiple Cisco CSR 1000v interfaces sharing one host ESXi Ethernet

interface.

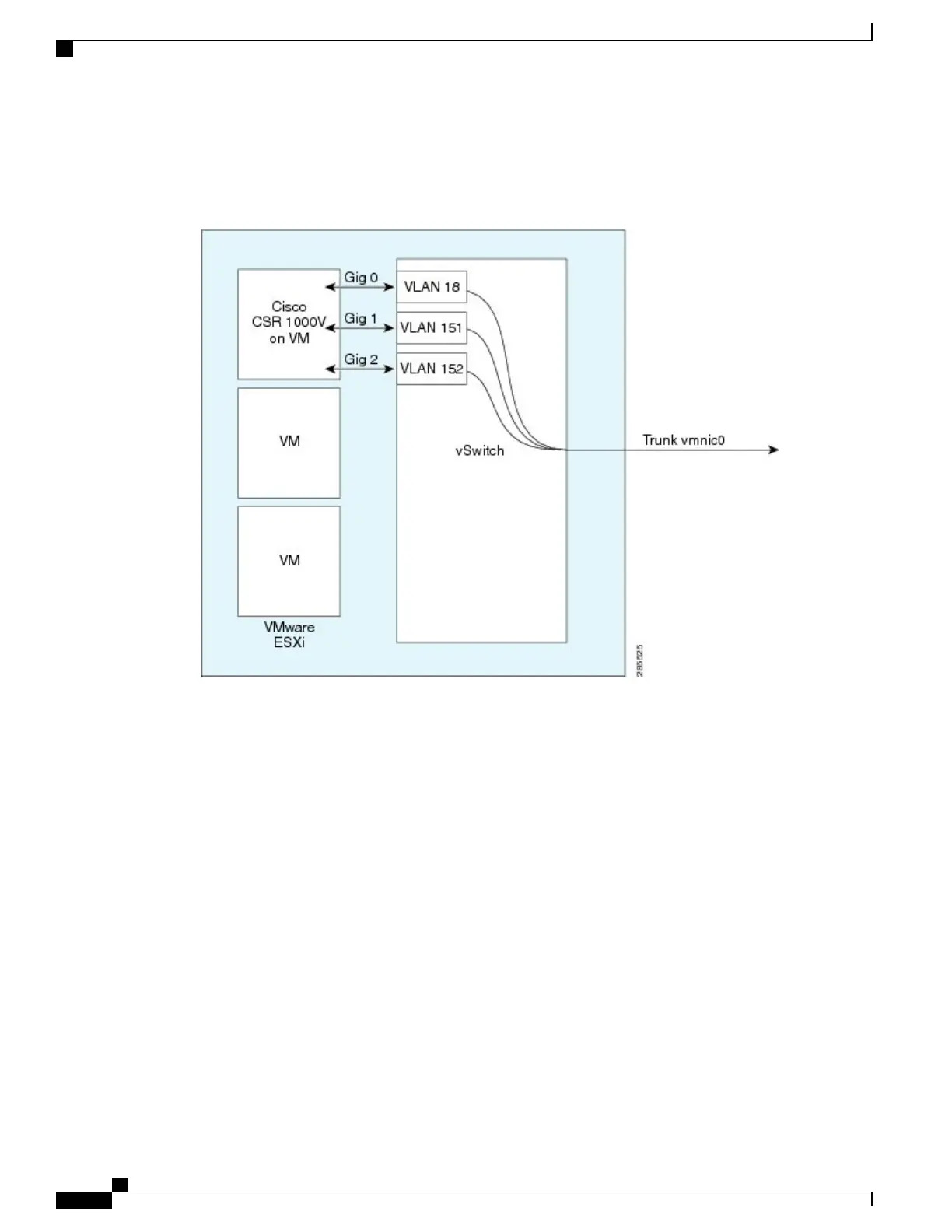

Figure 8: Cisco CSR 1000v Interfaces Sharing One ESXi Host Ethernet Interface

Cisco CSR 1000v Series Cloud Services Router Software Configuration Guide

218

Mapping Cisco CSR 1000v Network Interfaces to VM Network Interfaces

Mapping Cisco CSR 1000v Network Interfaces with vSwitch Interfaces
