Cisco CSR 1000v Series

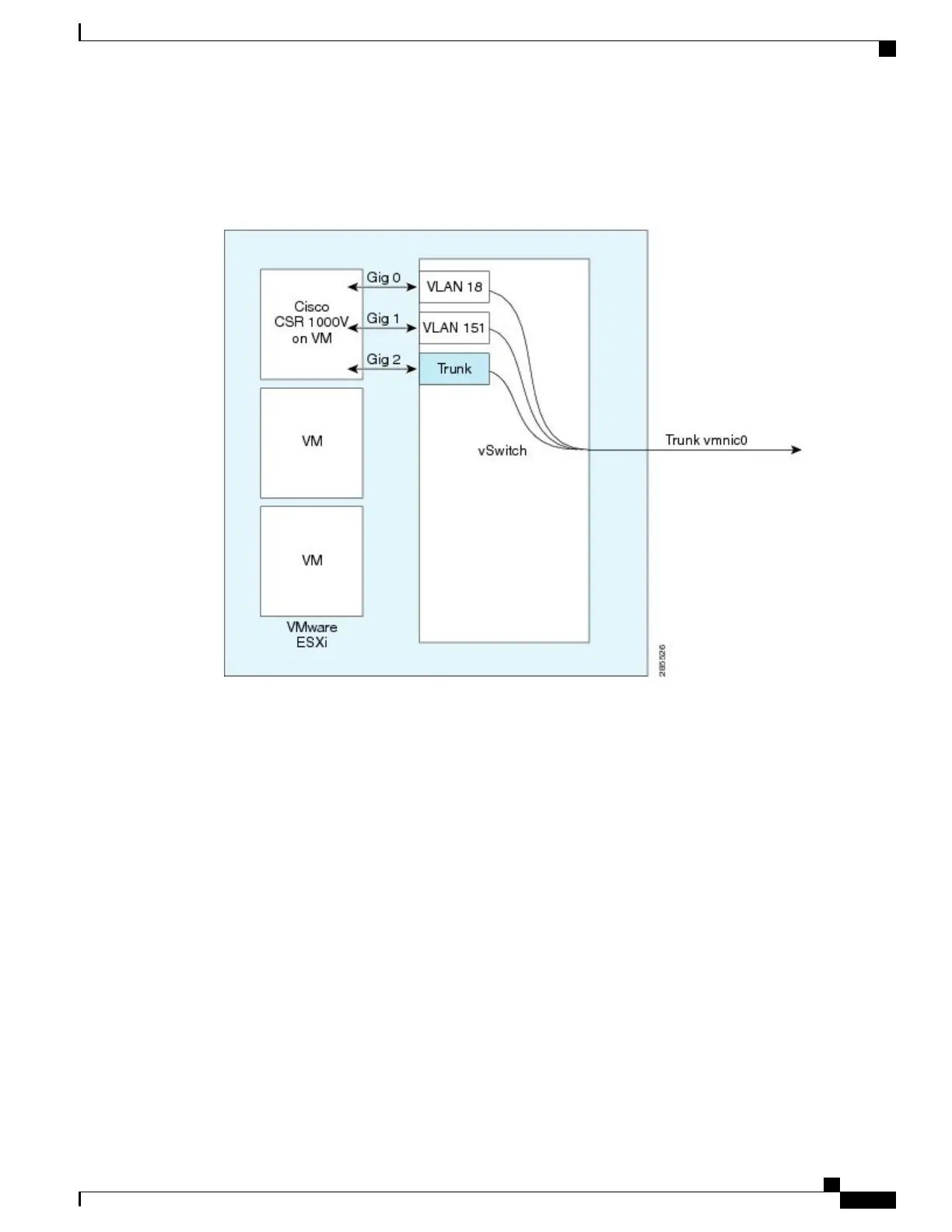

The next figure shows one of the Cisco CSR 1000v interfaces mapped directly to a trunk interface on the
vSwitch.
Figure 9: Cisco CSR 1000v Interfaces Directly Mapped to vSwitch Trunk
Cisco CSR 1000v Series Cloud Services Router Software Configuration Guide
219
Mapping Cisco CSR 1000v Network Interfaces to VM Network Interfaces
Mapping Cisco CSR 1000v Network Interfaces with vSwitch Interfaces
