4-58 D9865 Satellite Receiver Installation and Operation Guide 4035197 Rev C

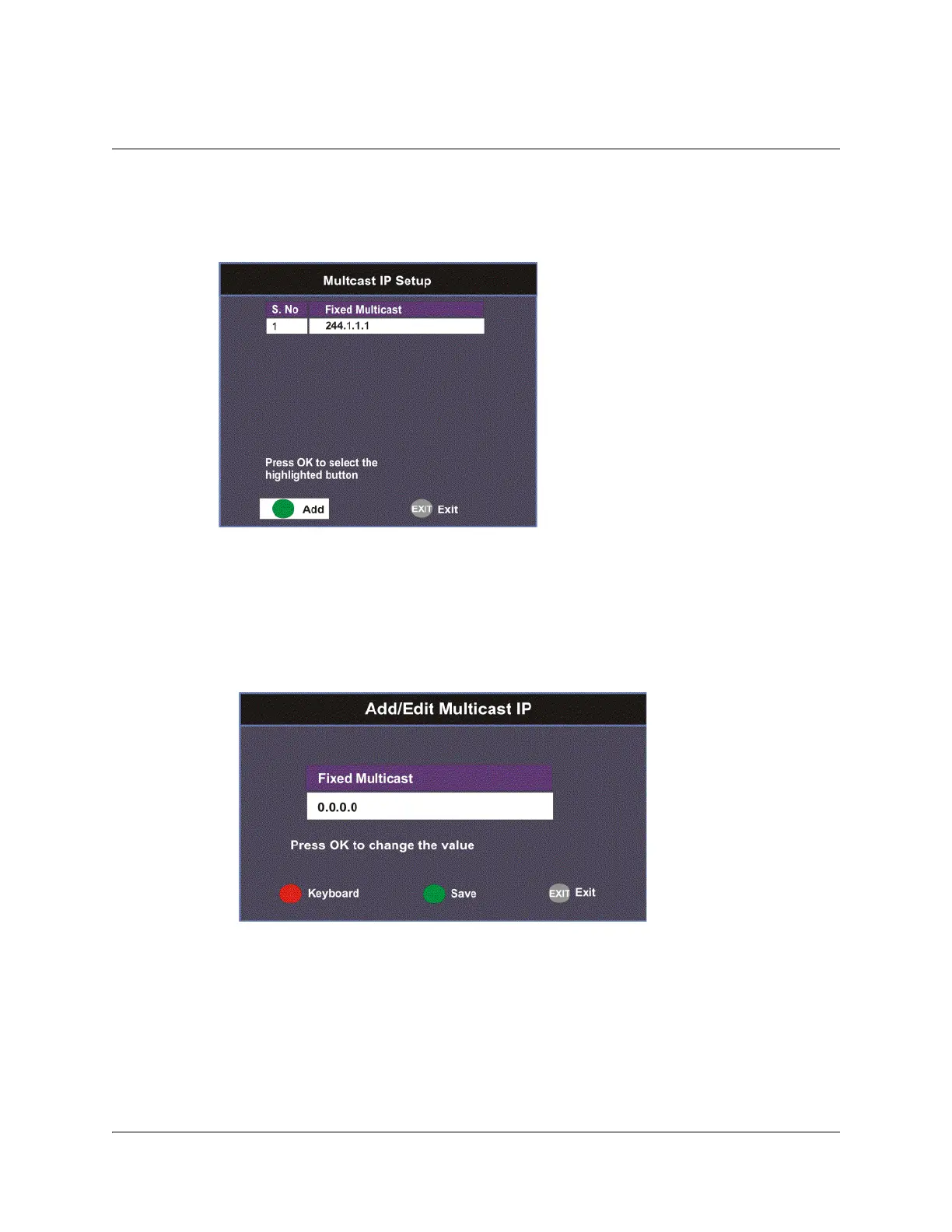

Setting the Multicast IP Address
Viewing the Multicast IP Addresses
Proceed as follows to view the Multicast IP addresses:
1. From the Network Setup screen, select Multicast IP Setup and click OK.
The Multicast IP Setup screen lists all the fixed multicast destination IP addresses.
Adding a Multicast IP Address
Proceed as follows to add a Multicast IP Address:
1. From the Multicast IP Setup screen, press the green button (Add) to add a new
address.
2. Set the multicast destination IP address, in the range from 0 to 255 for each of the
four fields in the following format: ###.###.###.###. For example, 225.1.1.1.
3. Press the green button (Save) to save your changes.
