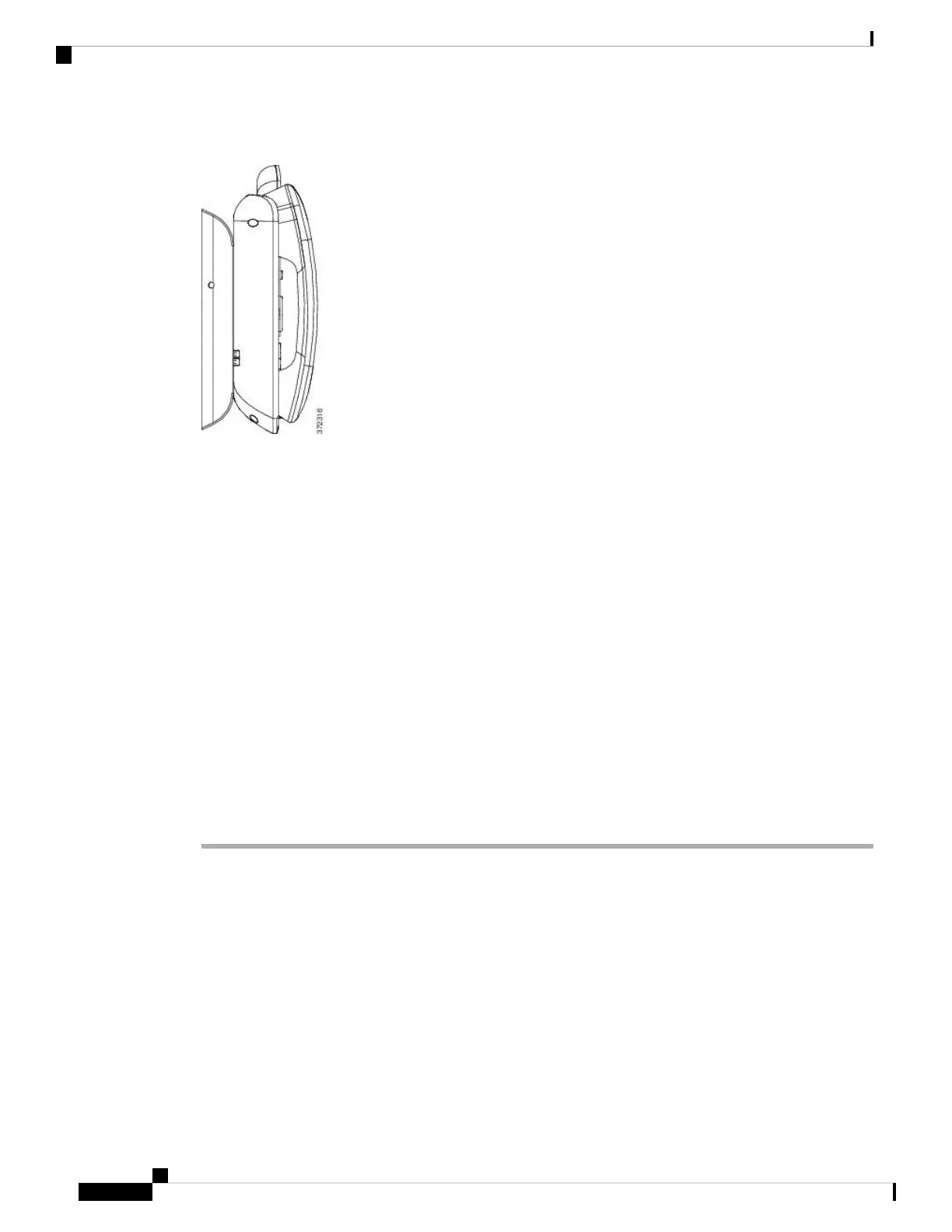

Figure 10: Side View of Wall Mount Kit Installed on Phone
Install the Non-Lockable Wall Mount Kit for Phone
The wall mount kit can be mounted on most surfaces, including concrete, brick, and similar hard surfaces.
To mount the kit on concrete, brick, or similar hard surfaces, you must provide the appropriate screws and
anchors for your wall surface.
Before you begin
You need these tools to install the bracket:
• #1 and #2 Phillips-head screwdrivers
• Level
• Pencil
You must also install an Ethernet jack for the telephone in the desired location if an Ethernet jack does not
currently exist. This jack must be wired appropriately for an Ethernet connection. You cannot use a regular
telephone jack.
Procedure
Step 1 Mount the wall bracket in the desired location. You can install the bracket over an Ethernet jack, or you can
run the Ethernet network cable to a nearby jack.
If the jack is to be placed behind the phone, the Ethernet jack must be flush to the wall or recessed.
Note
a) Hold the bracket on the wall, placing it so that the arrow on the back of the bracket is pointing up.
b) Use the level to ensure that the bracket is level and use a pencil to mark the screw holes.
c) Using a #2 Phillips-head screwdriver, carefully center the anchor over the pencil mark and press the anchor
into the wall.
d) Screw the anchor clockwise into the wall until it is seated flush.
e) Use the included screws and a #2 Phillips-head screwdriver to attach the bracket to the wall.
Cisco IP Phone 8800 Series Multiplatform Phone Administration Guide for Release 11.3(1) and Later
494
Cisco IP Phone Accessories
Install the Non-Lockable Wall Mount Kit for Phone
