Cisco Secure ACS 3.0 for Windows 2000/NT Servers User Guide

78-13751-01, Version 3.0

Appendix F Cisco SecureACS and Virtual Private Dial-up Networks

VPDN Process

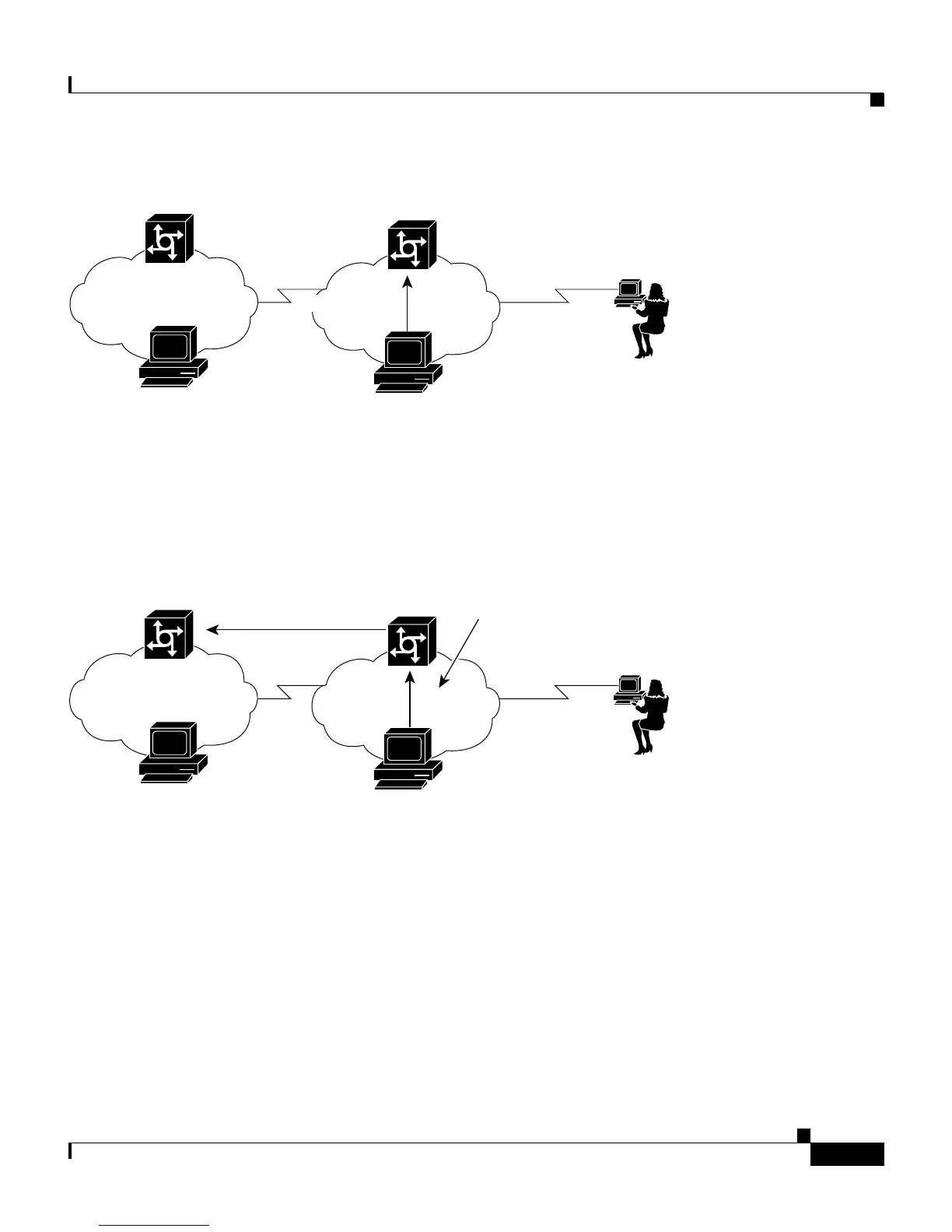

Figure F-3 Authorization of Domain Fails

If the ACS authorizes the domain, it returns the Tunnel ID and the IP address

of the home gateway (HG); these are used to create the tunnel. See

Figure F-4.

Figure F-4 ACS Authorizes Domain

The HG uses its ACS to authenticate the tunnel, where the username is the

name of the tunnel (nas_tun). See Figure F-5 on page F-4.

S6655

Corporation

VPDN user

User = mary@corporation.us

ACS

RSP

ACS

Authorization

failed

S6647

Corporation

VPDN user

User = mary@corporation.us

ACS

RSP

Authorization reply

Tunnel ID = nas_tun

IP address = 10.1.1.1

ACS

CHAP challenge

Default Chapter2
- Version2
- AAA Server Functions and Concepts40
