DescriptionSignalPin
Module receiver groundVeeR14
Module receiver 3.3-V supplyVccR15
Module transmitter 3.3-V supplyVccT16
Module transmitter groundVeeT17
Transmitter non inverted data inputTD+18
Transmitter inverted data inputTD-19
Module transmitter groundVeeT20
Network Port LEDs
Each network port on the vEdge 1000 router has two LEDs—the link/activity/status LED and the LAN/WAN
LED. See Figure 1.

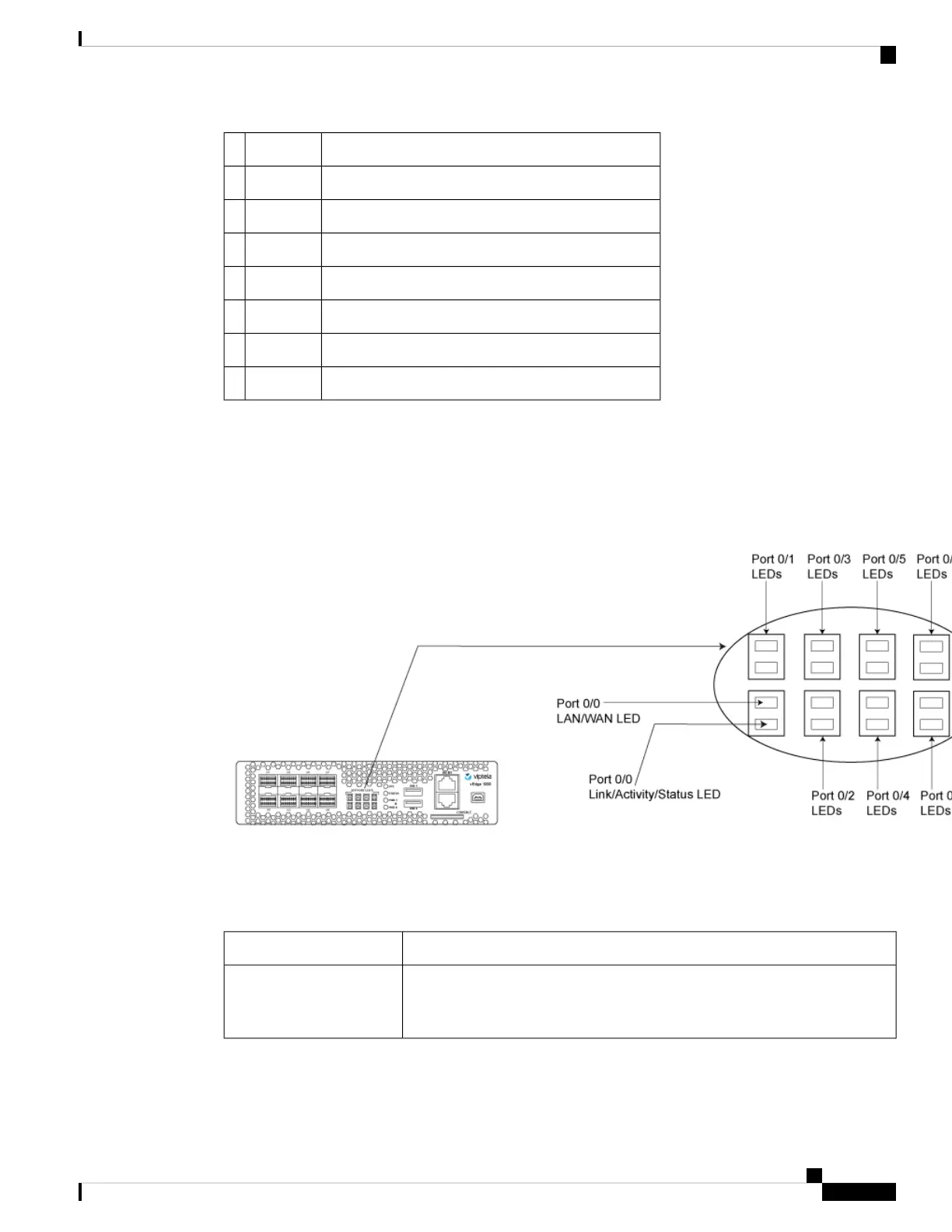

Figure 1: LEDs on the SFP Network Ports on a vEdge 1000 Router
Table 2 describes the Link/Activity/Status LED on the network ports.
Table 38:
State & DescriptionColor
• Blinking—The port and the link are active, and there is link activity.
• On steadily—The port and the link are active, but there is no link activity.
Green
Hardware Installation Guide for vEdge Routers
121
vEdge 1000 Router
Ports and Connectors

Cisco vEdge Series Specifications

General

Connectivity Technology	Wired
Virtualization Support	Yes
High Availability	Yes
QoS Support	Yes
Product Type	Router
Data Link Protocol	Ethernet
Routing Protocols	BGP, OSPF
Interfaces	Gigabit Ethernet
Operating System	Cisco vEdge OS
Security	IPSec
Management	CLI
