1. Screw the L-shaped side of each extended ear bracket (marked Left and Right) to the rear posts of the
rack using the 10-32 rack mount screws (two on each side) provided in the rack-mount kit.

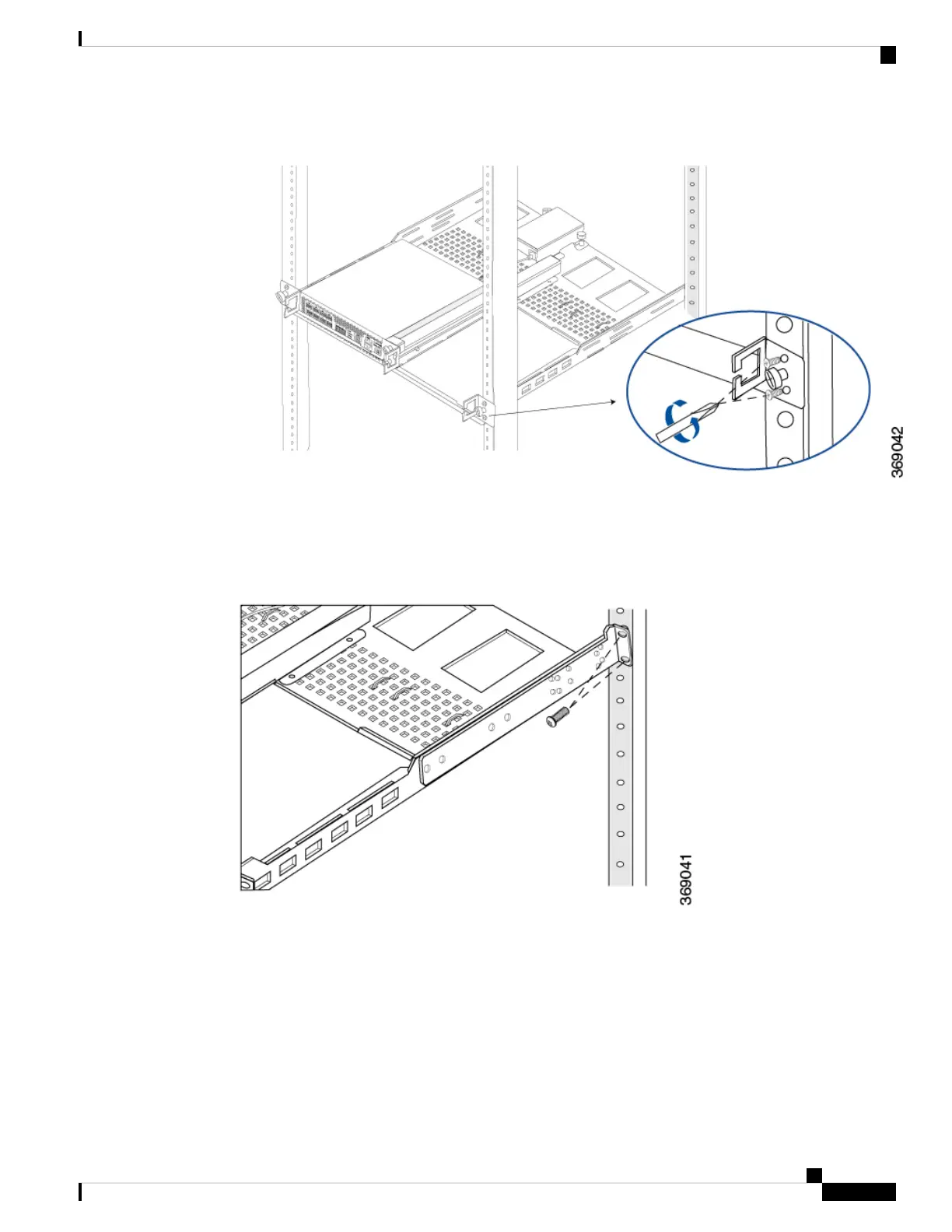

Figure 15: Screwing the Extended Ear Bracket to the Four Post Rack
1. Screw the extended ear brackets to either sides of the rack-mount tray using the 8-32 x 1/2 flat screws
and the 8-32 Kep nuts provided in the accessory kit.
Figure 16: Attaching the Extended Ear Bracket to the Rack-Mount Tray
Hardware Installation Guide for vEdge Routers
143
vEdge 1000 Router
Install the vEdge 1000 Router
